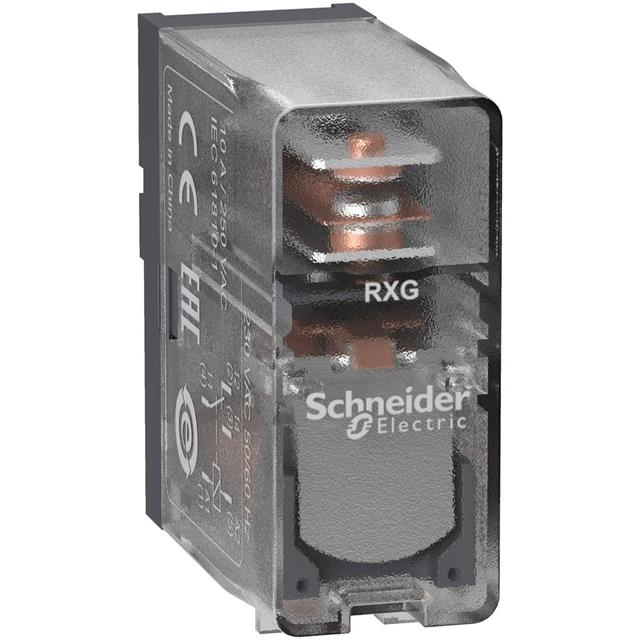

RXG15 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

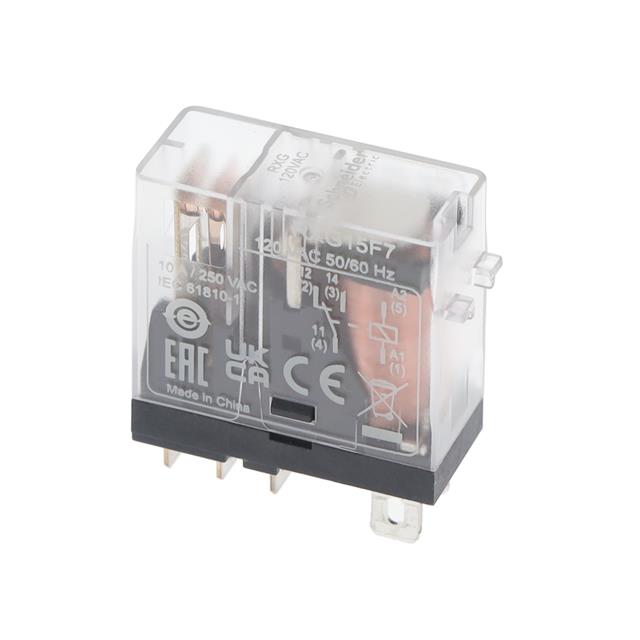

RELAY 1CO 10A@250VAC 120VAC COIL
| Part | Coil Resistance | Coil Voltage | Load - Max Switching | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Coil Current | Approval Agency | Must Operate Voltage | Release Time | Termination Style | Coil Insulation | Switching Voltage [Max] | Relay Type | Operate Time | Contact Form | Contact Rating (Current) | Contact Material | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 6.3 kOhms | 120 VAC | 300 W 2500 VA | Socketable | 70 °C | -40 C | Non Latching | 19 mA | CE CSA DNV-GL EAC UL | 96 VAC | 20 ms | Plug In | Class F | 30 VDC 250 VAC | General Purpose | 20 ms | SPDT (1 Form C) | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 36 VAC |
 SCHNEIDER ELECTRIC | 24 VDC | 300 W 2500 VA | Socketable | 70 °C | -40 C | Non Latching | CE CSA DNV-GL EAC UL | 19.2 VDC | 20 ms | Plug In | 30 VDC 250 VAC | General Purpose | 20 ms | SPDT (1 Form C) | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 2.4 VDC | |||
 SCHNEIDER ELECTRIC | 230 VAC | 300 W 2500 VA | Socketable | 70 °C | -40 C | Non Latching | CE CSA DNV-GL EAC UL | 184 VAC | 20 ms | Plug In | 30 VDC 250 VAC | General Purpose | 20 ms | SPDT (1 Form C) | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 69 VAC |
