SMA-A0102 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SURFACE MOUNT MELF RESISTOR, 820 OHM, SMA-A SERIES, 200 V, METAL FILM, 300 MW, ± 0.1%

Part	Ratings	Number of Terminations [custom]	Supplier Device Package	Tolerance	Composition	Temperature Coefficient	Resistance	Power (Watts)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Features
TE Connectivity AMP Connectors SMA-A0102BTNL820R	AEC-Q200	2	0102	0.1 %	Metal Film	15 ppm/°C	820 Ohms	300 mW	MELF 0102	155 C	-55 C	1.1 mm	0.043 in	2.2 mm	0.087 in	Automotive AEC-Q200
TE Connectivity AMP Connectors SMA-A0102FTDL8K2	AEC-Q200	2	0102	1 %	Metal Film	50 ppm/░C	8.2 kOhms	300 mW	MELF 0102	155 C	-55 C	1.1 mm	0.043 in	2.2 mm	0.087 in	Automotive AEC-Q200
TE Connectivity AMP Connectors SMA-A0102BTNL270R	AEC-Q200	2	0102	0.1 %	Metal Film	15 ppm/°C	270 Ohms	300 mW	MELF 0102	155 C	-55 C	1.1 mm	0.043 in	2.2 mm	0.087 in	Automotive AEC-Q200

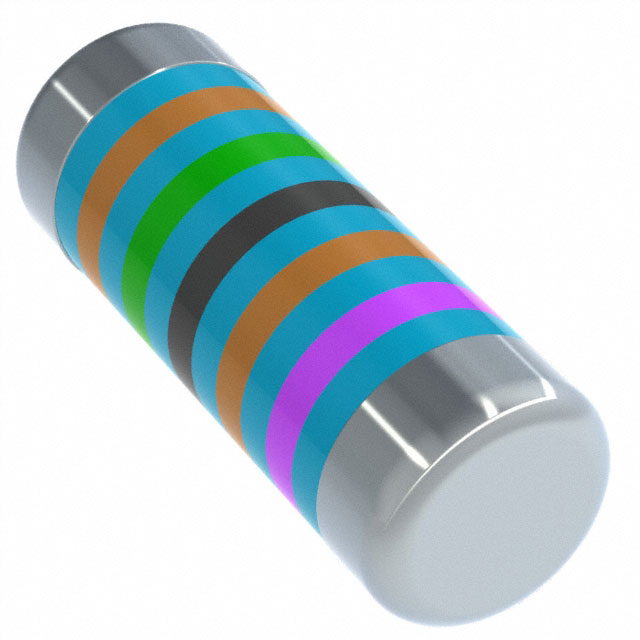

TE Connectivity AMP Connectors SMA-A0102BTNL1K5	AEC-Q200	2	0102	0.1 %	Metal Film	15 ppm/°C	1500 Ohms	300 mW	MELF 0102	155 C	-55 C	1.1 mm	0.043 in	2.2 mm	0.087 in	Automotive AEC-Q200
TE Connectivity AMP Connectors SMA-A0102BTNL330R	AEC-Q200	2	0102	0.1 %	Metal Film	15 ppm/°C	330 Ohms	300 mW	MELF 0102	155 C	-55 C	1.1 mm	0.043 in	2.2 mm	0.087 in	Automotive AEC-Q200
TE Connectivity AMP Connectors SMA-A0102BTNL47K	AEC-Q200	2	0102	0.1 %	Metal Film	15 ppm/°C	47000 Ohms	300 mW	MELF 0102	155 C	-55 C	1.1 mm	0.043 in	2.2 mm	0.087 in	Automotive AEC-Q200

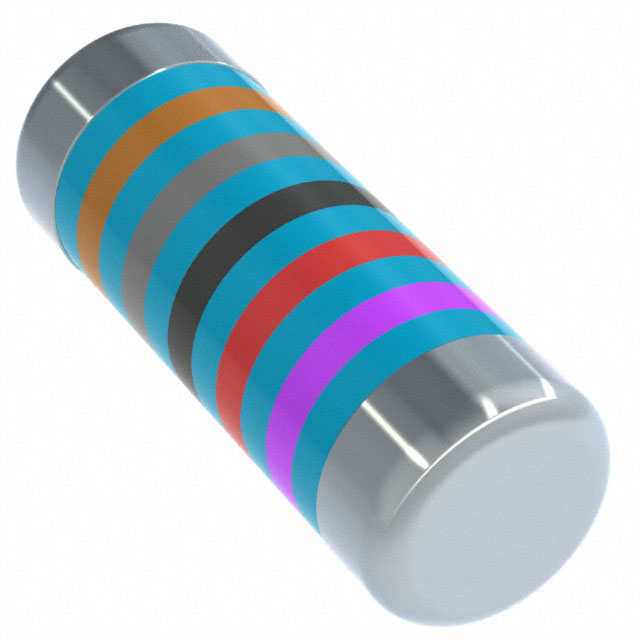

TE Connectivity AMP Connectors SMA-A0102BTNL18K	AEC-Q200	2	0102	0.1 %	Metal Film	15 ppm/°C	18 kOhms	300 mW	MELF 0102	155 C	-55 C	1.1 mm	0.043 in	2.2 mm	0.087 in	Automotive AEC-Q200
TE Connectivity AMP Connectors SMA-A0102BTNL3K9	AEC-Q200	2	0102	0.1 %	Metal Film	15 ppm/°C	3.9 kOhms	300 mW	MELF 0102	155 C	-55 C	1.1 mm	0.043 in	2.2 mm	0.087 in	Automotive AEC-Q200

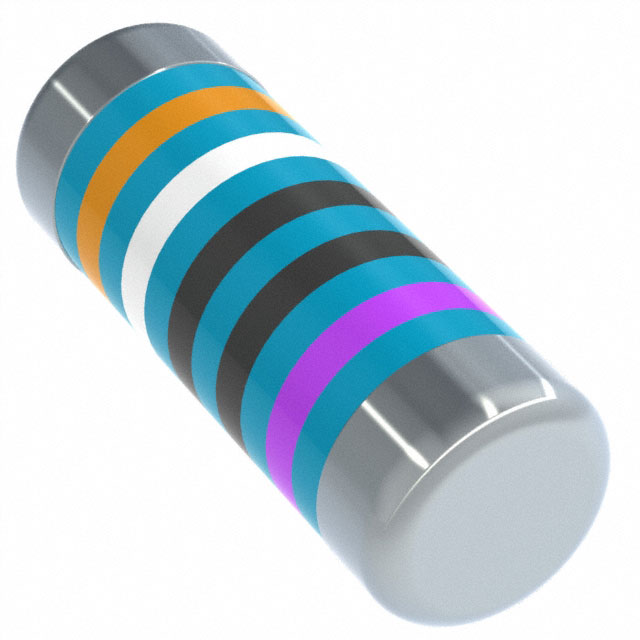

TE Connectivity AMP Connectors SMA-A0102BTNL390R	AEC-Q200	2	0102	0.1 %	Metal Film	15 ppm/°C	390 Ohms	300 mW	MELF 0102	155 C	-55 C	1.1 mm	0.043 in	2.2 mm	0.087 in	Automotive AEC-Q200
TE Connectivity AMP Connectors SMA-A0102BTNL2K2	AEC-Q200	2	0102	0.1 %	Metal Film	15 ppm/°C	2200 Ohms	300 mW	MELF 0102	155 C	-55 C	1.1 mm	0.043 in	2.2 mm	0.087 in	Automotive AEC-Q200
