CSM12 Series
Manufacturer: ECS Inc.
Beta
⌘K

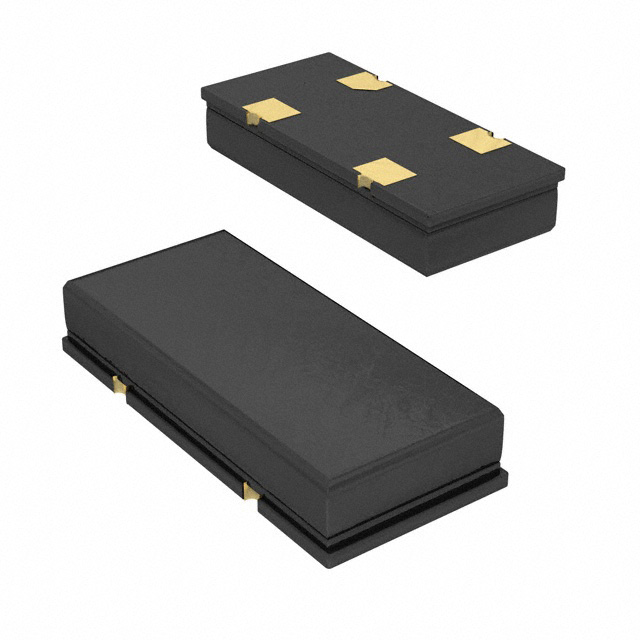

CRYSTALS CRYSTAL 20.4800MHZ 18PF SMD,CSM-12,+/-100PPM,+/-30PPM,18PF,50 OHM,FUNDAMENTAL,-40C - 85C,4-SMD, NO LEAD (DFN, LCC),0.465" L X 0.220" W (11.80MM X 5.50MM),0.098" (2.50MM)
| Part | Operating Mode | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Frequency Stability | Supplier Device Package [y] | Supplier Device Package | Supplier Device Package [x] | ESR (Equivalent Series Resistance) | Load Capacitance | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Frequency | Type | Package / Case | Frequency Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | Fundamental | 0.098 in | 2.5 mm | 100 ppm | 5.5 | 4-SMD | 11.8 | 50 Ohms | 18 pF | 0.465 in | 11.8 mm | 5.5 mm | 0.217 in | 85 °C | -40 C | Surface Mount | 20.48 MHz | MHz Crystal | 4-SMD No Lead | 30 ppm |
ECS Inc. | Fundamental | 0.098 in | 2.5 mm | 100 ppm | 5.5 | 4-SMD | 11.8 | 100 Ohms | 18 pF | 0.465 in | 11.8 mm | 5.5 mm | 0.217 in | 85 °C | -40 C | Surface Mount | 8 MHz | MHz Crystal | 4-SMD No Lead | 30 ppm |
