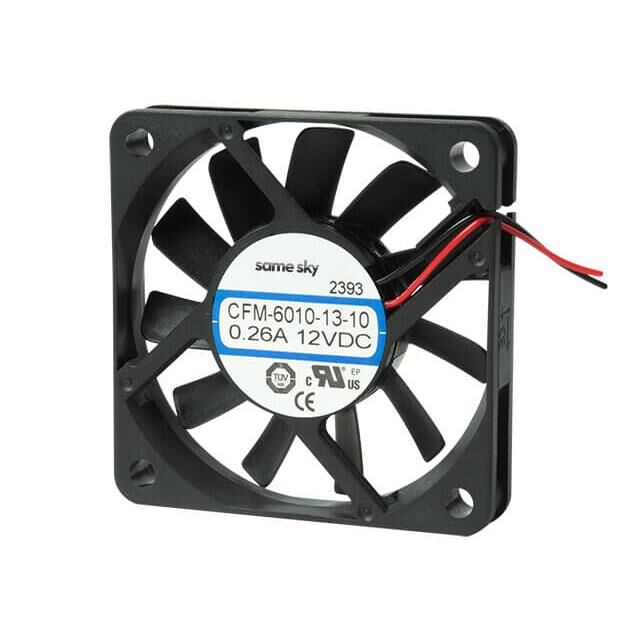

CFM-6010 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

FAN AXIAL 60X10MM 12VDC WIRE

Part	Voltage - Rated	Termination	Weight	Weight	Size / Dimension [z]	Size / Dimension [x]	Features	Width [y]	Noise	Approval Agency	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Material - Blade	RPM	Air Flow	Air Flow	Static Pressure	Static Pressure	Current Rating (Amps)	Weight [custom]	Weight [custom]	Width [x]	Bearing Type
Same Sky (Formerly CUI Devices) CFM-6010V-130-205-11	12 VDC	3 Wire Leads	0.051 lb	23.13 g	60 mm	60 mm	Auto Restart Locked Rotor Sensor	10 mm	20.5 dB(A)	CE cURus TUV	0.68 W	70 °C	-10 °C	70000 Hrs	13.8 VDC	6 VDC	Tubeaxial	Polybutylene Terephthalate (PBT)	3000 RPM	12.2 CFM	0.342 mł/min	0.08 in H2O	20 Pa	0.056 A
Same Sky (Formerly CUI Devices) CFM-6010V-130-205-11	12 VDC	3 Wire Leads	0.051 lb	23.13 g	60 mm	60 mm	Auto Restart Locked Rotor Sensor	10 mm	20.5 dB(A)	CE cURus TUV	0.68 W	70 °C	-10 °C	70000 Hrs	13.8 VDC	6 VDC	Tubeaxial	Polybutylene Terephthalate (PBT)	3000 RPM	12.2 CFM	0.342 mł/min	0.08 in H2O	20 Pa	0.056 A
Same Sky (Formerly CUI Devices) CFM-6010-13-11	12 VDC	3 Wire Leads			60 mm	60 mm	Auto Restart Locked Rotor Sensor		41.4 dB(A)	CE cURus TUV	3.12 W	70 °C	-10 °C	70000 Hrs	13.8 VDC	6 VDC	Tubeaxial	Polybutylene Terephthalate (PBT)	5500 RPM	24.2 CFM	0.678 m³/min	0.22 in H2O	54.8 Pa	0.2 A	29.03 g	0.064 lb	10.6 mm	Ball
Same Sky (Formerly CUI Devices) CFM-6010-13-11	12 VDC	3 Wire Leads			60 mm	60 mm	Auto Restart Locked Rotor Sensor		41.4 dB(A)	CE cURus TUV	3.12 W	70 °C	-10 °C	70000 Hrs	13.8 VDC	6 VDC	Tubeaxial	Polybutylene Terephthalate (PBT)	5500 RPM	24.2 CFM	0.678 m³/min	0.22 in H2O	54.8 Pa	0.2 A	29.03 g	0.064 lb	10.6 mm	Ball
