ASDXRRX015 Series

Catalog

SENSOR 15PSIG 0.09" 4.5V

Part	Pressure Type	Features	Termination Style	Output [Min]	Output [Max]	Port Style	Mounting Type	Package / Case	Accuracy	Operating Temperature [Min]	Operating Temperature [Max]	Port Size	Port Size [x]	Port Size [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Pressure [custom]	Operating Pressure [custom]	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications

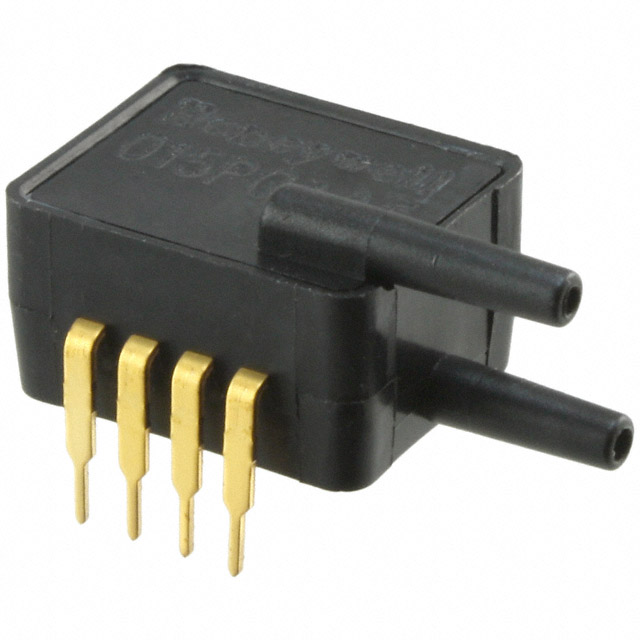

Honeywell Sensing and Productivity Solutions ASDXRRX015PGAA5	Vented Gauge	Temperature Compensated	PC Pin	0.5 V	4.5 V	Barbless	Through Hole	8-DIP Module	2 %	-20 C	105 ░C	Dual Male Tube	0.09 "	2.31 mm	4.75 V	5.25 V	15 PSI	103.42 kPa	Analog Voltage	30 PSI	206.84 kPa	Board Mount
