170475 Series

Manufacturer: Molex

Catalog

IMPACT 85 OHM PLUS 5 PAIR VERTICAL BACKPLANE HEADER, LEFT GUIDE, OPEN ENDWALL, 12 COLUMNS, 180 CIRCUITS, PIN LENGTH 4.90MM, PLATED THROUGH HOLE DIMENSION 0.39MM, POLARIZING KEY POSITION E, LEAD FREE

Part	Mounting Type	Connector Type	Number of Columns	Contact Finish	Termination	Contact Layout, Typical	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows	Number of Positions Loaded	Color	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating

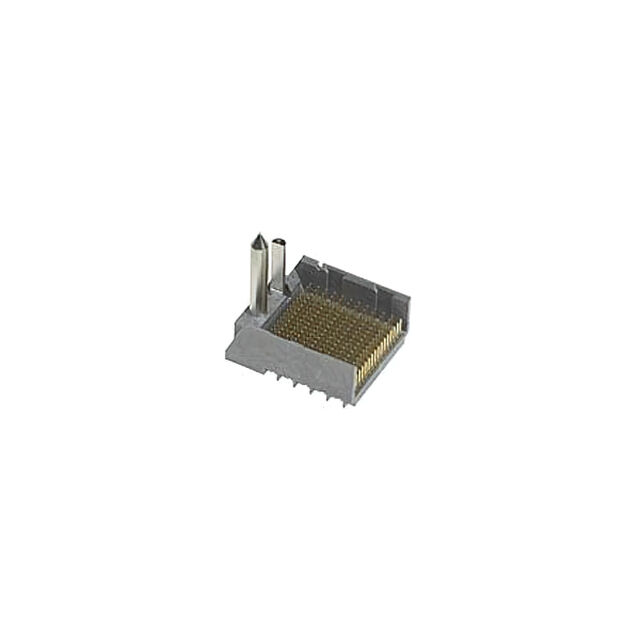

Molex 1704753257	Through Hole	Header Male Pins	12	Gold	Press-Fit	60 Ground	0.76 Ám	30 Áin	180	15	All	Gray	Guide Left Impact	85 °C	-55 °C	UL94 V-0
Molex 1704751128	Through Hole	Header Male Pins	10	Gold	Press-Fit	50 Differential Pairs	0.76 Ám	30 Áin	150	15	All	Gray	Impact	85 °C	-55 °C	UL94 V-0
Molex 1704753607	Through Hole	Header Male Pins	16	Gold	Press-Fit	80	0.76 Ám	30 Áin	240	15	All	Gray	Guide Left Impact	85 °C	-55 °C	UL94 V-0

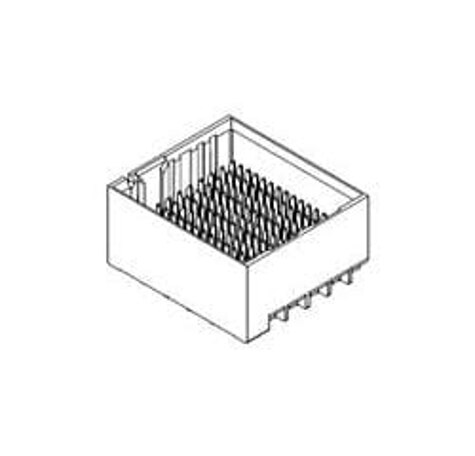

Molex 1704751228	Through Hole	Header Male Pins	12	Gold	Press-Fit	60 Ground	0.76 Ám	30 Áin	180	15	All	Gray	Impact	85 °C	-55 °C	UL94 V-0
Molex 1704751208	Through Hole	Header Male Pins	12	Gold	Press-Fit	60 Ground	0.76 Ám	30 Áin	180	15	All	Gray	Impact	85 °C	-55 °C	UL94 V-0
Molex 1704751608	Through Hole	Header Male Pins	16	Gold	Press-Fit	80	0.76 Ám	30 Áin	240	15	All	Gray	Impact	85 °C	-55 °C	UL94 V-0
Molex 1704753207	Through Hole	Header Male Pins	12	Gold	Press-Fit	64 Differential Pairs	0.76 Ám	30 Áin	180	15	All	Gray	Guide Left Impact	85 °C	-55 °C	UL94 V-0
Molex 1704751127	Through Hole	Header Male Pins	10	Gold	Press-Fit	50 Differential Pairs	0.76 Ám	30 Áin	150	15	All	Gray	Impact	85 °C	-55 °C	UL94 V-0

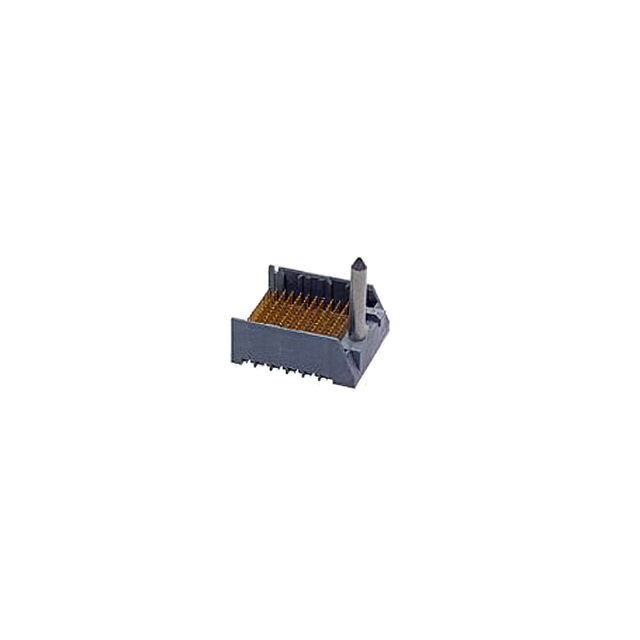

Molex 1704755207	Through Hole	Header Male Pins	12	Gold	Press-Fit	60 Ground	0.76 Ám	30 Áin	180	15	All	Gray		85 °C	-55 °C	UL94 V-0
Molex 1704759207	Through Hole	Header Male Pins	12	Gold	Press-Fit	60 Ground	0.76 Ám	30 Áin	180	15	All	Gray		85 °C	-55 °C	UL94 V-0
