TPS7B86-Q1 Series
Manufacturer: Texas Instruments
Beta
⌘K
AUTOMOTIVE 500-MA, 40-V, ULTRA-LOW-IQ, LOW-DROPOUT (LDO) LINEAR REGULATOR WITH POWER GOOD
| Part | Number of Regulators | Current - Quiescent (Iq) | Package / Case | Grade | Voltage - Output (Min/Fixed) | Supplier Device Package | Protection Features | Voltage Dropout (Max) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Output Configuration | Current - Output | PSRR | Control Features | Qualification | Voltage Dropout (Max) [Max] | Voltage - Output (Max) [Max] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1 | 26 µA | 8-PowerSOIC (0.154" 3.90mm Width) | Automotive | 5 V | 8-SO PowerPad | Over Temperature Under Voltage Lockout (UVLO) | 0.535 V | -40 °C | 150 °C | Surface Mount | Positive | 500 mA | 70 db | Delay Enable Power Good | AEC-Q100 | |||
 Texas Instruments | 1 | 26 µA | 8-PowerSOIC (0.154" 3.90mm Width) | Automotive | 5 V | 8-SO PowerPad | Over Current Over Temperature Under Voltage Lockout (UVLO) | 0.535 V | -40 °C | 150 °C | Surface Mount | Positive | 500 mA | 70 db | Enable Power Good | AEC-Q100 | |||
 Texas Instruments | 1 | 26 µA | 8-PowerSOIC (0.154" 3.90mm Width) | Automotive | 3.3 V | 8-SO PowerPad | Over Current Over Temperature Under Voltage Lockout (UVLO) | 0.535 V | -40 °C | 150 °C | Surface Mount | Positive | 500 mA | 70 db | Current Limit Enable Power Good | AEC-Q100 | |||

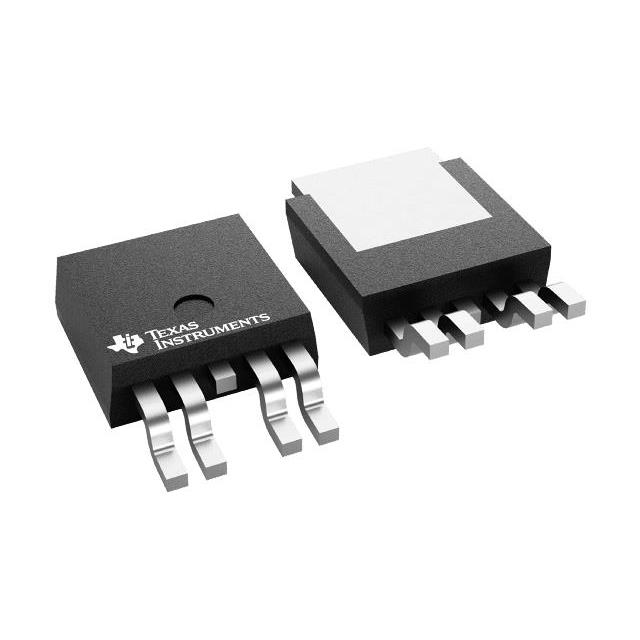

 Texas Instruments | 1 | 26 µA | DPAK (4 Leads + Tab) TO-252-5 TO-252AD | Automotive | 5 V | TO-252-5 | Over Current Over Temperature Under Voltage Lockout (UVLO) | -40 °C | 150 °C | Surface Mount | Positive | 500 mA | 70 db | Enable | AEC-Q100 | 0.575 V | |||
Texas Instruments | 1 | 26 µA | DPAK (4 Leads + Tab) TO-252-5 TO-252AD | Automotive | 3.3 V | TO-252-5 | Over Current Over Temperature Under Voltage Lockout (UVLO) | -40 °C | 150 °C | Surface Mount | Positive | 500 mA | 70 db | Enable | AEC-Q100 | 0.575 V | |||
 Texas Instruments | 1 | 26 µA | DPAK (4 Leads + Tab) TO-252-5 TO-252AD | Automotive | 3.3 V | TO-252-5 | Over Current Over Temperature Under Voltage Lockout (UVLO) | 0.535 V | -40 °C | 150 °C | Surface Mount | Positive | 500 mA | 70 db | Enable | AEC-Q100 | |||
 Texas Instruments | 1 | 26 µA | 8-PowerSOIC (0.154" 3.90mm Width) | Automotive | 3.3 V | 8-SO PowerPad | Over Current Over Temperature Under Voltage Lockout (UVLO) | 0.535 V | -40 °C | 150 °C | Surface Mount | Positive | 500 mA | 70 db | Enable Power Good | AEC-Q100 | |||
Texas Instruments | 1 | 26 µA | DPAK (4 Leads + Tab) TO-252-5 TO-252AD | Automotive | 1.2 V | TO-252-5 | Over Current Over Temperature Under Voltage Lockout (UVLO) | -40 °C | 150 °C | Surface Mount | Positive | 500 mA | 70 db | Current Limit Delay Enable Power Good Soft Start | AEC-Q100 | 0.57 V | 18 V | Adjustable | |
Texas Instruments | 1 | 26 µA | DPAK (4 Leads + Tab) TO-252-5 TO-252AD | Automotive | 5 V | TO-252-5 | Over Current Over Temperature Under Voltage Lockout (UVLO) | 0.535 V | -40 °C | 150 °C | Surface Mount | Positive | 500 mA | 70 db | Enable | AEC-Q100 | |||
Texas Instruments | 1 | 26 µA | 8-PowerSOIC (0.154" 3.90mm Width) | Automotive | 1.2 V | 8-SO PowerPad | Over Current Over Temperature Under Voltage Lockout (UVLO) | -40 °C | 150 °C | Surface Mount | Positive | 500 mA | 70 db | Current Limit Delay Enable Power Good Soft Start | AEC-Q100 | 0.57 V | 18 V | Adjustable |
