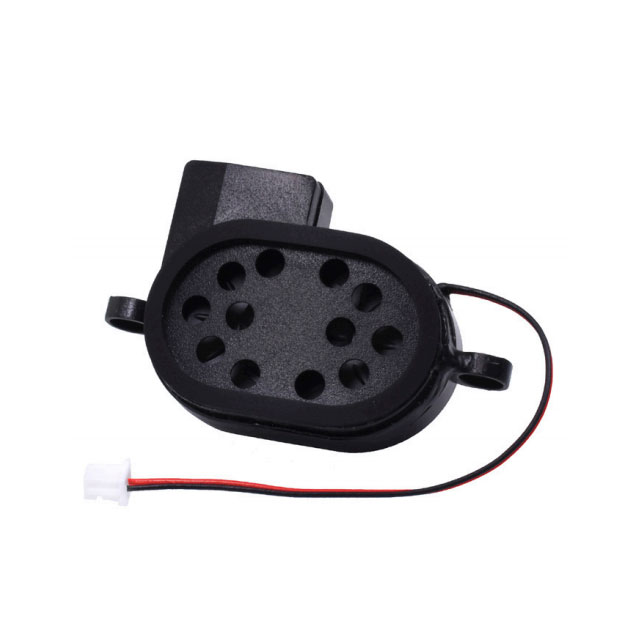

CES-302611 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
SPEAKERS NEODYMIUM IRON BORON 900HZ 1.8W 95DBA 8OHM IP67 WIRE LEAD
| Part | Impedance | Frequency - Self Resonant | Shape | Power - Max [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Material - Magnet | Efficiency - Testing | Efficiency - Type | Technology | Type | Port Location | Efficiency - dBA | Material - Cone | Power - Rated | Termination | Ingress Protection | Frequency Range [Max] | Frequency Range [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Distortion Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 8 Ohms | 900 Hz | Rectangular | 1.8 W | 30 mm | 25 mm | 0.984 " | 1.181 in | Nd-Fe-B | 1.5 W/100mm | Sound Pressure Level (SPL) | Magnetic | General Purpose Enclosure Included | Top | 95 dBA | Polyethylenimine (PEI) Polyurethane (PU) | 1.5 W | Wire Leads with Connector | IP67 - Dust Tight Waterproof | 15 kHz | 720 Hz | |||
Same Sky (Formerly CUI Devices) | 8 Ohms | 900 Hz | Rectangular | 1.8 W | 30 mm | 25 mm | 0.984 " | 1.181 in | Nd-Fe-B | 1.5 W/100mm | Sound Pressure Level (SPL) | Magnetic | General Purpose Enclosure Included | Top | 95 dBA | Polyethylenimine (PEI) Polyurethane (PU) | 1.5 W | Wire Leads with Connector | IP67 - Dust Tight Waterproof | 15 kHz | 720 Hz | -20 ░C | 60 °C | 10 % |
