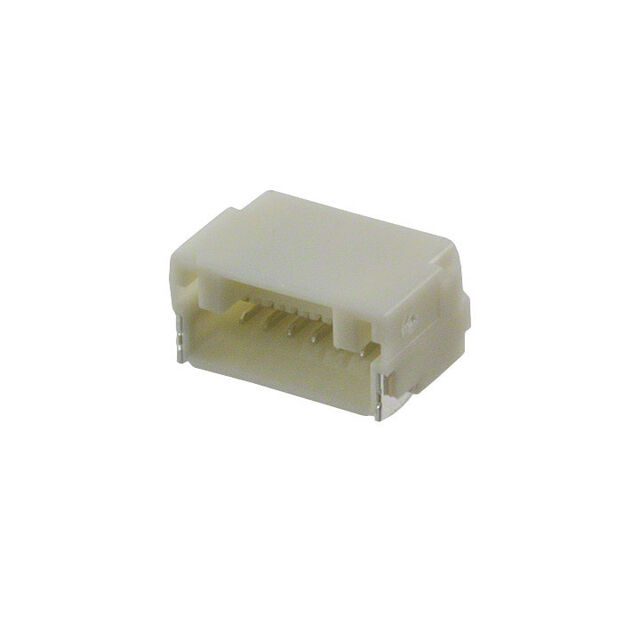

SM07B-NS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 7POS 1MM
| Part | Insulation Height | Insulation Height | Fastening Type | Pitch - Mating | Pitch - Mating | Number of Positions | Insulation Material | Material Flammability Rating | Contact Type | Shrouding | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Mounting Type | Termination | Contact Finish - Post | Connector Type | Insulation Color | Style | Number of Rows | Voltage Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 4.4 mm | 0.173 in | Latch Holder | 1 mm | 0.039 in | 7 | Nylon Polyamide (PA) | UL94 V-0 | Male Pin | Shrouded - 4 Wall | All | 85 °C | -25 °C | Copper Alloy | Right Angle Surface Mount | Solder | Tin | Header | Natural | Board to Cable/Wire | 1 | 50 V | Solder Retention |
