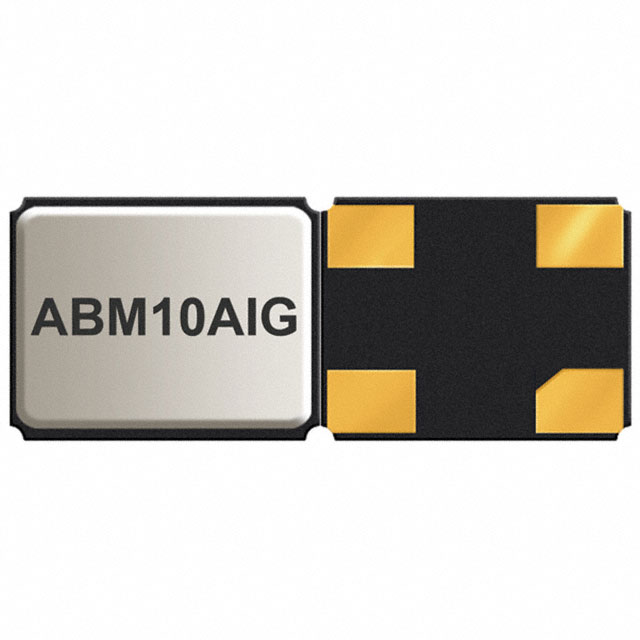

ABM10AIG Series
Manufacturer: Abracon LLC
Beta
⌘K
CRYSTAL 38.4MHZ ±10PPM (TOL) ±50PPM (STABILITY) 10PF FUND 40OHM AUTOMOTIVE AEC-Q200 4-PIN CSMD T/R
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Load Capacitance | Package / Case | Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Operating Mode | Type | Frequency Stability | Supplier Device Package [x] | Supplier Device Package | Supplier Device Package [y] | Ratings | ESR (Equivalent Series Resistance) | Mounting Type | Frequency Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 2.5 mm 2.55 mm | 0.079 in 0.081 " | 0.098 in 0.1 " | 2 mm 2.05 mm | 10 pF | 4-SMD No Lead | 38.4 MHz | 85 °C | -40 C | Fundamental | MHz Crystal | 50 ppm | 2.55 | 4-SMD | 2.05 | AEC-Q200 | 40 Ohms | Surface Mount | 10 ppm | 0.026 in | 0.65 mm |
