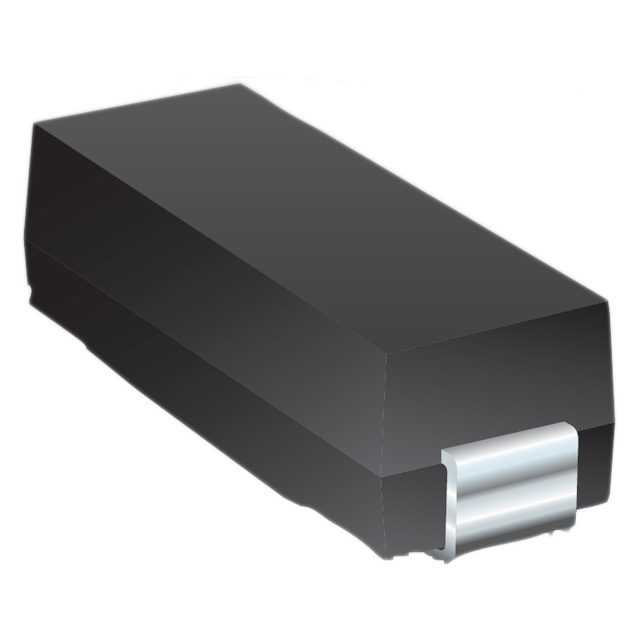

PWR4525 Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES SMD 2.2K OHM 5% 2W 4525
| Part | Resistance | Temperature Coefficient | Composition | Package / Case | Power (Watts) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Number of Terminations [custom] | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 2200 Ohms | 20 ppm/°C | Wirewound | 4525 J-Lead | 2 W | 0.197 in | 5 mm | 2 | 5 % | 0.252 in | 0.449 " | 6.4 mm | 11.4 mm | -55 C | 275 °C | Current Sense Moisture Resistant Pulse Withstanding |
Bourns Inc. | 5.6 kOhms | 20 ppm/°C | Wirewound | 4525 J-Lead | 2 W | 0.197 in | 5 mm | 2 | 5 % | 0.252 in | 0.449 " | 6.4 mm | 11.4 mm | -55 C | 275 °C | Current Sense Moisture Resistant Pulse Withstanding |
Bourns Inc. | 1000 Ohms | 20 ppm/°C | Wirewound | 4525 J-Lead | 2 W | 0.197 in | 5 mm | 2 | 5 % | 0.252 in | 0.449 " | 6.4 mm | 11.4 mm | -55 C | 275 °C | Current Sense Moisture Resistant Pulse Withstanding |
Bourns Inc. | 11 Ohms | 20 ppm/°C | Wirewound | 4525 J-Lead | 2 W | 0.197 in | 5 mm | 2 | 1 % | 0.252 in | 0.449 " | 6.4 mm | 11.4 mm | -55 C | 275 °C | Current Sense Moisture Resistant Pulse Withstanding |
Bourns Inc. | 1 Ohms | 50 ppm/░C | Wirewound | 4525 J-Lead | 2 W | 0.197 in | 5 mm | 2 | 5 % | 0.252 in | 0.449 " | 6.4 mm | 11.4 mm | -55 C | 275 °C | Current Sense Moisture Resistant Pulse Withstanding |
Bourns Inc. | 2200 Ohms | 20 ppm/°C | Wirewound | 4525 J-Lead | 2 W | 0.197 in | 5 mm | 2 | 5 % | 0.252 in | 0.449 " | 6.4 mm | 11.4 mm | -55 C | 275 °C | Current Sense Moisture Resistant Pulse Withstanding |
Bourns Inc. | 10 Ohms | 50 ppm/░C | Wirewound | 4525 J-Lead | 2 W | 0.197 in | 5 mm | 2 | 5 % | 0.252 in | 0.449 " | 6.4 mm | 11.4 mm | -55 C | 275 °C | Current Sense Moisture Resistant Pulse Withstanding |
Bourns Inc. | 15 kOhms | 20 ppm/°C | Wirewound | 4525 J-Lead | 2 W | 0.197 in | 5 mm | 2 | 5 % | 0.252 in | 0.449 " | 6.4 mm | 11.4 mm | -55 C | 275 °C | Current Sense Moisture Resistant Pulse Withstanding |
Bourns Inc. | 0.12 Ohms | 150 ppm/°C | Wirewound | 4525 J-Lead | 2 W | 0.197 in | 5 mm | 2 | 5 % | 0.252 in | 0.449 " | 6.4 mm | 11.4 mm | -55 C | 275 °C | Current Sense Moisture Resistant Pulse Withstanding |
Bourns Inc. | 2 kOhms | 20 ppm/°C | Wirewound | 4525 J-Lead | 2 W | 0.197 in | 5 mm | 2 | 5 % | 0.252 in | 0.449 " | 6.4 mm | 11.4 mm | -55 C | 275 °C | Current Sense Moisture Resistant Pulse Withstanding |
