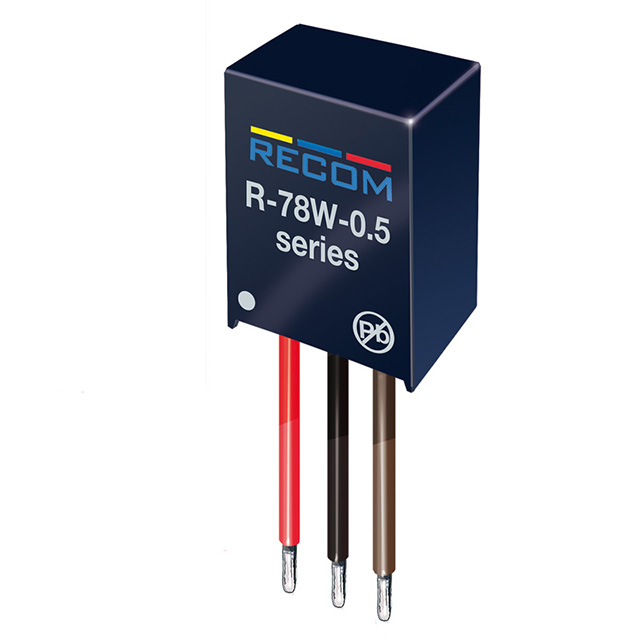

R-78W Series
Manufacturer: Recom Power
Beta
⌘K
NON-ISOLATED DC/DC CONVERTERS 11-32VIN 9V 0.5A SIP WIRED
| Part | Number of Outputs | Type | Mounting Type | Voltage - Output 1 | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Applications | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 1 | Linear Regulator Replacement | Chassis Mount | 9 V | 11 V | 32 V | ITE (Commercial) | 95 % | 17.5 mm | 0.33 " | 0.45 " | 8.5 mm | 11.5 mm | 0.69 in | 500 mA | 85 °C | -40 C |
Recom Power | 1 | Linear Regulator Replacement | Chassis Mount | 5 V | 6.5 V | 32 V | ITE (Commercial) | 93 % | 8.5 mm | 0.45 in | 0.69 in | 11.5 mm | 17.5 mm | 0.33 in | 500 mA | 85 °C | -40 C |
Recom Power | 1 | Linear Regulator Replacement | Chassis Mount | 12 V | 15 V | 32 V | ITE (Commercial) | 96 % | 17.5 mm | 0.33 " | 0.45 " | 8.5 mm | 11.5 mm | 0.69 in | 500 mA | 85 °C | -40 C |
 Recom Power | 1 | Linear Regulator Replacement | Chassis Mount | 3.3 V | 6.5 V | 32 V | ITE (Commercial) | 90 % | 8.5 mm | 0.45 in | 0.69 in | 11.5 mm | 17.5 mm | 0.33 in | 500 mA | 85 °C | -40 C |
