LTM8067 Series

3VINto 40VINIsolated μModule DC/DC Converter

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

3VINto 40VINIsolated μModule DC/DC Converter

Part	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Mounting Type	Voltage - Input (Min) [Min]	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Isolation	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Applications	Package / Case
Analog Devices Inc./Maxim Integrated LTM8067IY#PBF	450 mA	0.19 in	9 mm	0.44 in	11.3 mm	0.35 in	4.9 mm	Isolated Module	Surface Mount	2.8 V	38-BGA	9	11.25	1	125 °C	-40 C	UVLO	2000 V	2.5 V	24 V	ITE (Commercial)	38-BBGA Module
Analog Devices Inc./Maxim Integrated LTM8067EY#PBF	450 mA	0.19 in	9 mm	0.44 in	11.3 mm	0.35 in	4.9 mm	Isolated Module	Surface Mount	2.8 V	38-BGA	9	11.25	1	125 °C	-40 C	UVLO	2000 V	2.5 V	24 V	ITE (Commercial)	38-BBGA Module
Analog Devices Inc./Maxim Integrated LTM8067IY	450 mA	0.19 in	9 mm	0.44 in	11.3 mm	0.35 in	4.9 mm	Isolated Module	Surface Mount	2.8 V	38-BGA	9	11.25	1	125 °C	-40 C	UVLO	2000 V	2.5 V	24 V	ITE (Commercial)	38-BBGA Module

Catalog

3VINto 40VINIsolated μModule DC/DC Converter

Description

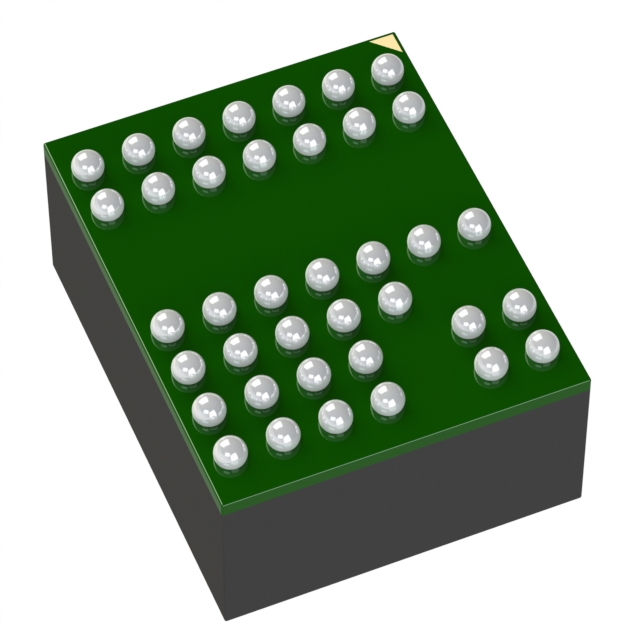

The LTM8067 is a 2kVAC isolated flyback μModule®(power module) DC/DC converter. Included in the package are the switching controller, power switches, transformer, and all support components. Operating over an input voltage range of 3V to 40V, the LTM8067 supports an output voltage range of 2.5V to 24V, set by a single resistor. Only output and input capacitors are needed to finish the design.The LTM8067 is packaged in a thermally enhanced, compact (9mm × 11.25mm × 4.92mm) overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8067 is available with SnPb or RoHS compliant terminal finish.APPLICATIONSIsolated IGBT Gate DriveIndustrial SensorsIndustrial SwitchesTest and Measurement Equipment
