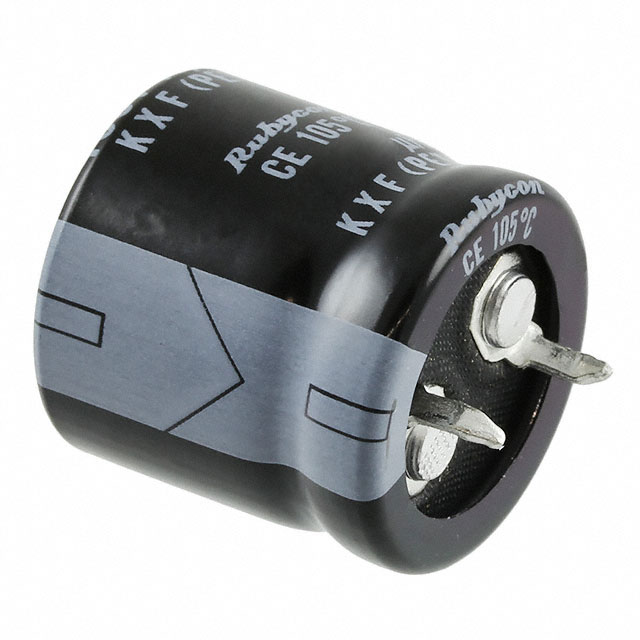

KXF Series
Manufacturer: Rubycon
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN GENERAL PURPOSE ELECTROLYTIC CAPACITORS
| Part | Applications | Capacitance | Ripple Current @ Low Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] [custom] | Height - Seated (Max) [Max] [custom] | Ripple Current @ High Frequency | Voltage - Rated | Lifetime @ Temp. | Size / Dimension | Size / Dimension [diameter] | Tolerance | Mounting Type | Polarization | Package / Case | Lead Spacing | Lead Spacing | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rubycon | General Purpose | 100 µF | 610 mA | 105 ░C | -25 °C | 0.866 in | 22 mm | 854 mA | 450 V | 3000 Hrs | 30 mm | 1.181 " | 20 % | Through Hole | Polar | Radial Can - Snap-In | 0.394 in | 10 mm | |
Rubycon | General Purpose | 150 µF | 800 mA | 105 ░C | -25 °C | 0.866 in | 22 mm | 1.12 A | 400 V | 3000 Hrs | 30 mm | 1.181 " | 20 % | Through Hole | Polar | Radial Can - Snap-In | 0.394 in | 10 mm | |
Rubycon | General Purpose | 270 µF | 120 Hz 950 mA | 105 ░C | -25 °C | 0.866 in | 22 mm | 1.425 A | 180 VDC | 3000 Hrs | 0.866 " | 20 % | Through Hole | Polar | Radial Can - Snap-In | 0.394 in | 10 mm | 22 mm |
