T41120 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN PLUG FMALE 2P SILVER SCREW

Part	Shell Finish	Voltage Rating	Fastening Type	Shielding	Orientation	Contact Finish - Mating	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Primary Material	Contact Material	Color	Insert Material [custom]	Insert Material [custom]	Termination	Mounting Type	Connector Type	Backshell Material, Plating	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Current Rating (Amps)	Number of Positions	Ingress Protection	Shell Size - Insert	Shell Material	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors T4112001022-000	Nickel	250 V	Threaded	Unshielded	A	Silver	Industrial	85 °C	-40 C	2.03 µm	80 µin	Metal	Bronze	Black Silver	Nylon	Polyamide (PA)	Screw	Free Hanging (In-Line) Right Angle	Plug Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	0.157 in	0.236 in	6 mm	4 mm	4 A	2	IP67 - Dust Tight Waterproof	M12-2	Brass	Backshell Coupling Nut
TE Connectivity AMP Connectors T4112012042-000	Nickel	250 V	Threaded	Shielded	A	Silver	Industrial	85 °C	-40 C	2.03 µm	80 µin	Metal	Bronze	Silver	Nylon	Polyamide (PA)	Screw	Free Hanging (In-Line) Right Angle	Plug Female Sockets	Brass Nickel	0.236 in	0.315 in	8 mm	6 mm	4 A	4	IP67 - Dust Tight Waterproof	M12-4	Brass	Backshell Coupling Nut

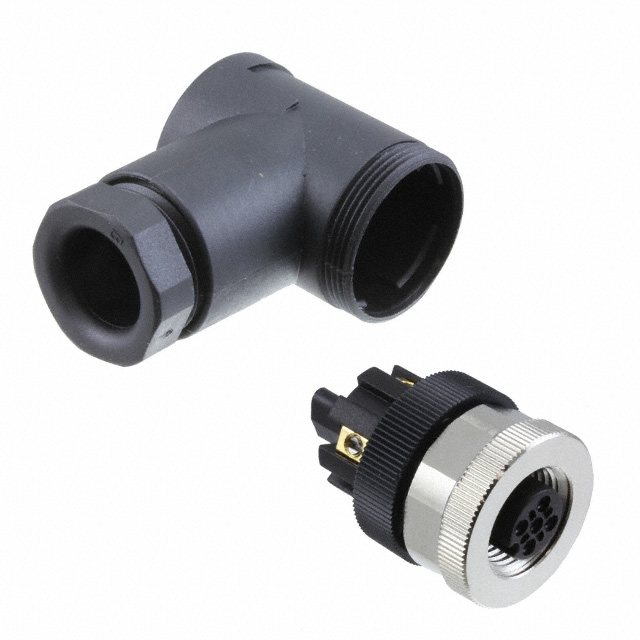

TE Connectivity AMP Connectors T4112002051-000	Nickel	60 VDC	Threaded	Unshielded	A	Gold	Industrial	85 °C	-40 C			Metal	Zinc Alloy	Black Silver	Nylon	Polyamide (PA)	Screw	Free Hanging (In-Line) Right Angle	Plug Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	0.236 in	0.315 in	8 mm	6 mm	4 A	5	IP67 - Dust Tight Waterproof	M12-5	Brass	Backshell Coupling Nut	0.076 µm	3 µin

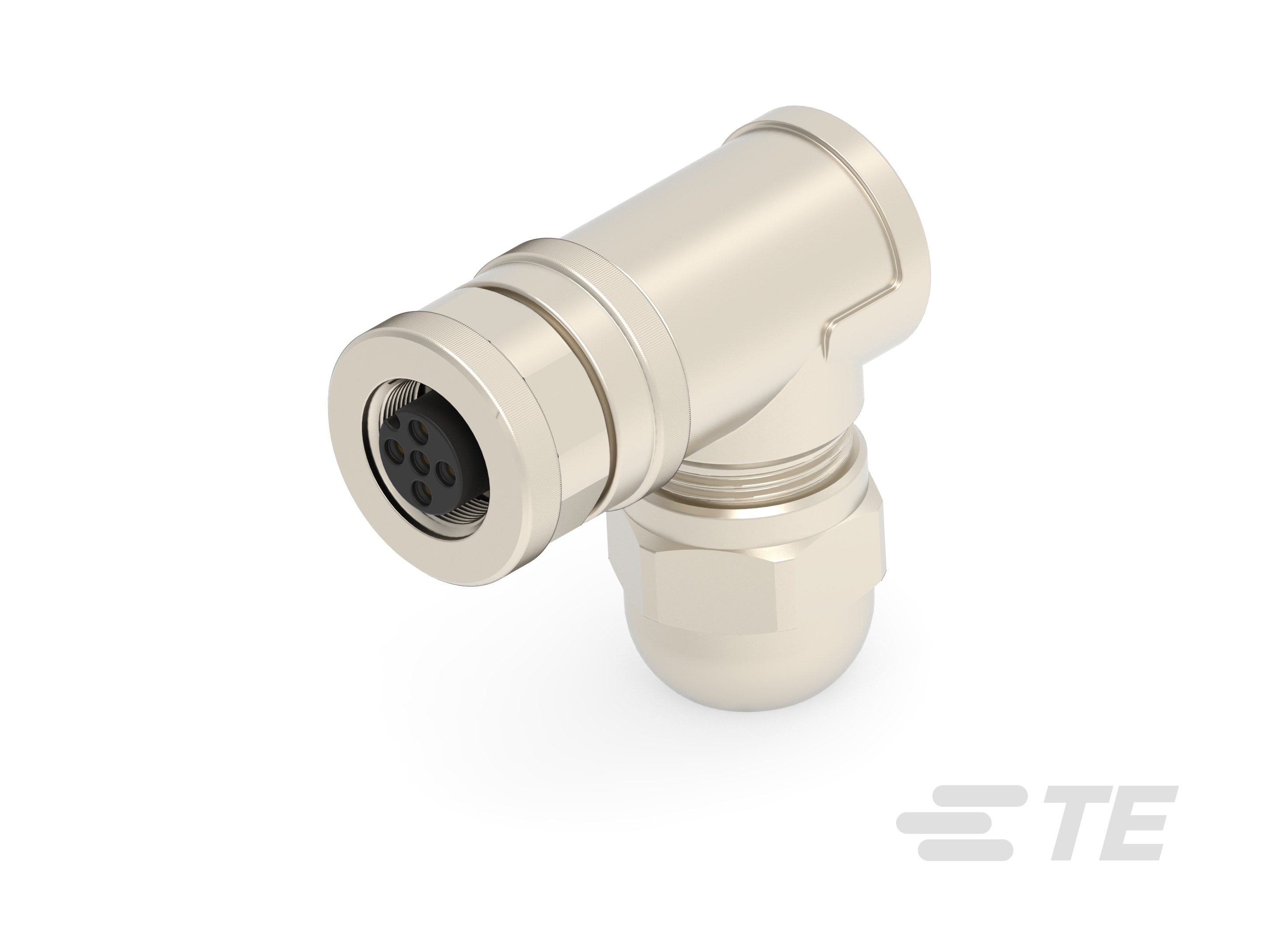

TE Connectivity AMP Connectors T4112011051-000	Nickel	60 VDC	Threaded	Shielded	A	Gold	Industrial	85 °C	-40 C			Metal	Zinc Alloy	Silver	Nylon	Polyamide (PA)	Screw	Free Hanging (In-Line) Right Angle	Plug Female Sockets	Brass Nickel	0.157 in	0.236 in	6 mm	4 mm	4 A	5	IP67 - Dust Tight Waterproof	M12-5	Brass	Backshell Coupling Nut	0.076 µm	3 µin
TE Connectivity AMP Connectors T4112012082-000	Nickel	30 VDC	Threaded	Shielded	A	Silver	Industrial	85 °C	-40 C	2.03 µm	80 µin	Metal	Bronze	Silver	Nylon	Polyamide (PA)	Screw	Free Hanging (In-Line) Right Angle	Plug Female Sockets	Brass Nickel	0.236 in	0.315 in	8 mm	6 mm	2 A	8	IP67 - Dust Tight Waterproof	M12-8	Brass	Backshell Coupling Nut
TE Connectivity AMP Connectors T4112001051-000	Nickel	60 VDC	Threaded	Unshielded	A	Gold	Industrial	85 °C	-40 C			Metal	Zinc Alloy	Black Silver	Nylon	Polyamide (PA)	Screw	Free Hanging (In-Line) Right Angle	Plug Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	0.157 in	0.236 in	6 mm	4 mm	4 A	5	IP67 - Dust Tight Waterproof	M12-5	Brass	Backshell Coupling Nut	0.076 µm	3 µin
TE Connectivity AMP Connectors T4112011042-000	Nickel	250 V	Threaded	Shielded	A	Silver	Industrial	85 °C	-40 C	2.03 µm	80 µin	Metal	Bronze	Silver	Nylon	Polyamide (PA)	Screw	Free Hanging (In-Line) Right Angle	Plug Female Sockets	Brass Nickel	0.157 in	0.236 in	6 mm	4 mm	4 A	4	IP67 - Dust Tight Waterproof	M12-4	Brass	Backshell Coupling Nut
TE Connectivity AMP Connectors T4112002041-000	Nickel	250 V	Threaded	Unshielded	A	Gold	Industrial	85 °C	-40 C			Metal	Zinc Alloy	Black Silver	Nylon	Polyamide (PA)	Screw	Free Hanging (In-Line) Right Angle	Plug Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	0.236 in	0.315 in	8 mm	6 mm	4 A	4	IP67 - Dust Tight Waterproof	M12-4	Brass	Backshell Coupling Nut	0.076 µm	3 µin

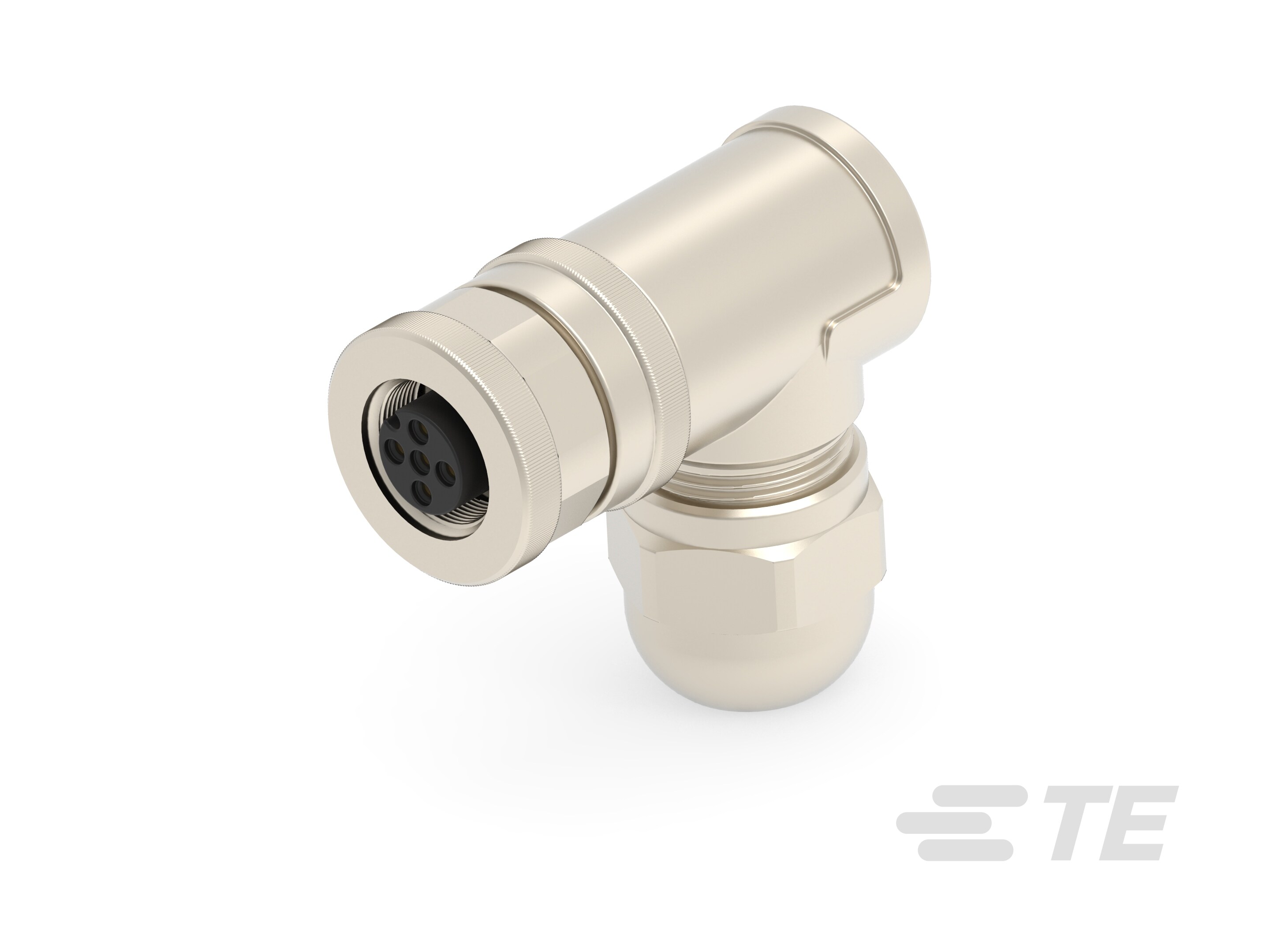

TE Connectivity AMP Connectors T4112012021-000	Nickel	250 V	Threaded	Shielded	A	Gold	Industrial	85 °C	-40 C			Metal	Zinc Alloy	Silver	Nylon	Polyamide (PA)	Screw	Free Hanging (In-Line) Right Angle	Plug Female Sockets	Brass Nickel	0.236 in	0.315 in	8 mm	6 mm	4 A	2	IP67 - Dust Tight Waterproof	M12-2	Brass	Backshell Coupling Nut	0.076 µm	3 µin

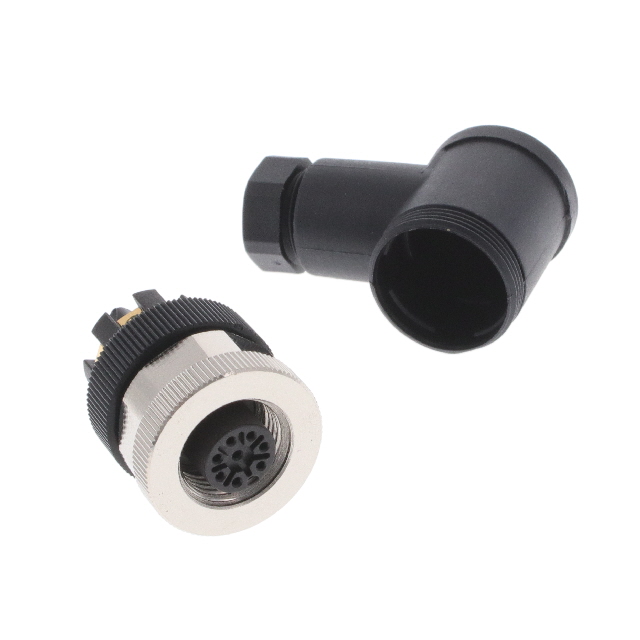

TE Connectivity AMP Connectors T4112001081-000	Nickel	30 VDC	Threaded	Unshielded	A	Gold	Industrial	85 °C	-40 C			Metal	Zinc Alloy	Black Silver	Nylon	Polyamide (PA)	Screw	Free Hanging (In-Line) Right Angle	Plug Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	0.157 in	0.236 in	6 mm	4 mm	2 A	8	IP67 - Dust Tight Waterproof	M12-8	Brass	Backshell Coupling Nut	0.076 µm	3 µin
