MS3108A22 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG FMALE 4P SILV SLDR CUP

Part	Shell Material	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Shell Finish	Orientation	Mounting Type	Applications	Contact Material	Features	Fastening Type	Termination	Shielding	Backshell Material	Plating	Contact Finish - Mating	Qualification	Number of Positions	Primary Material	Connector Type	Color	Shell Size - Insert Width	Shell Size - Insert Length	Ingress Protection	Current Rating	Grade
Amphenol Aerospace Operations MS3108A22-22S	Aluminum Alloy	125 °C	-55 °C	Neoprene	22	22	Cadmium Olive Drab Chromate	N (Normal)	Free Hanging (In-Line) Right Angle	Marine Military	Copper Alloy	Coupling Nut	Threaded	Solder Cup	Unshielded	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	MIL-5015	4	Metal	Female Sockets Plug	Olive Drab
Amphenol Aerospace Operations MS3108A22-24S
Amphenol Aerospace Operations MS3108A22-6P
Amphenol Aerospace Operations MS3108A22-14S	Aluminum Alloy	125 °C	-55 °C	Neoprene			Cadmium Olive Drab Chromate	N (Normal)	Free Hanging (In-Line) Right Angle	Marine Military	Copper Alloy	Coupling Nut	Threaded	Solder Cup	Unshielded	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	MIL-5015	19	Metal	Female Sockets Plug	Olive Drab	14 mm	22 mm

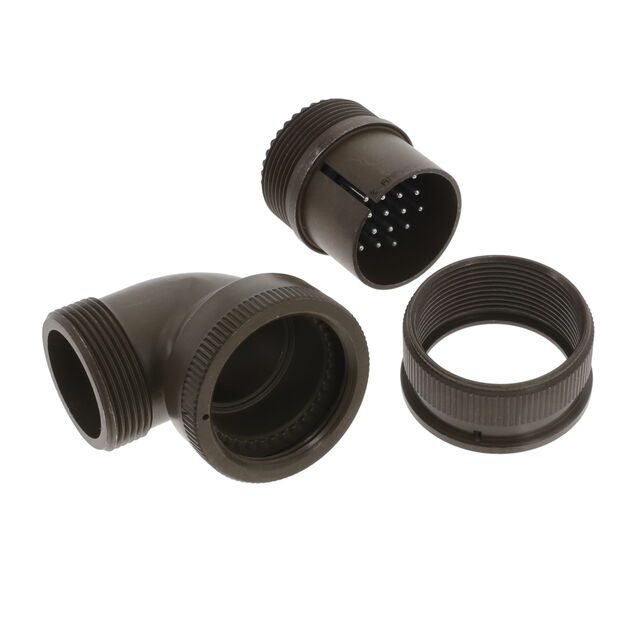

Amphenol Aerospace Operations MS3108A22-14P	Aluminum Alloy	125 °C	-55 °C	Neoprene			Cadmium Olive Drab Chromate	N (Normal)	Free Hanging (In-Line) Right Angle	Marine Military	Copper Alloy	Coupling Nut	Threaded	Solder Cup	Unshielded			Silver	MIL-DTL-5015	19	Metal	Male Pins Plug	Olive Drab	14 mm	22 mm	Environment Resistant	13 A	Military
Amphenol Aerospace Operations MS3108A22-2PY	Aluminum Alloy	125 °C	-55 °C	Neoprene			Cadmium Olive Drab Chromate	Y	Free Hanging (In-Line) Right Angle	Marine Military	Copper Alloy	Coupling Nut	Threaded	Solder Cup	Unshielded	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	MIL-5015	3	Metal	Male Pins Plug	Olive Drab	2 mm	22 mm
Amphenol Aerospace Operations MS3108A22-20S
