Nanot0 Series Series

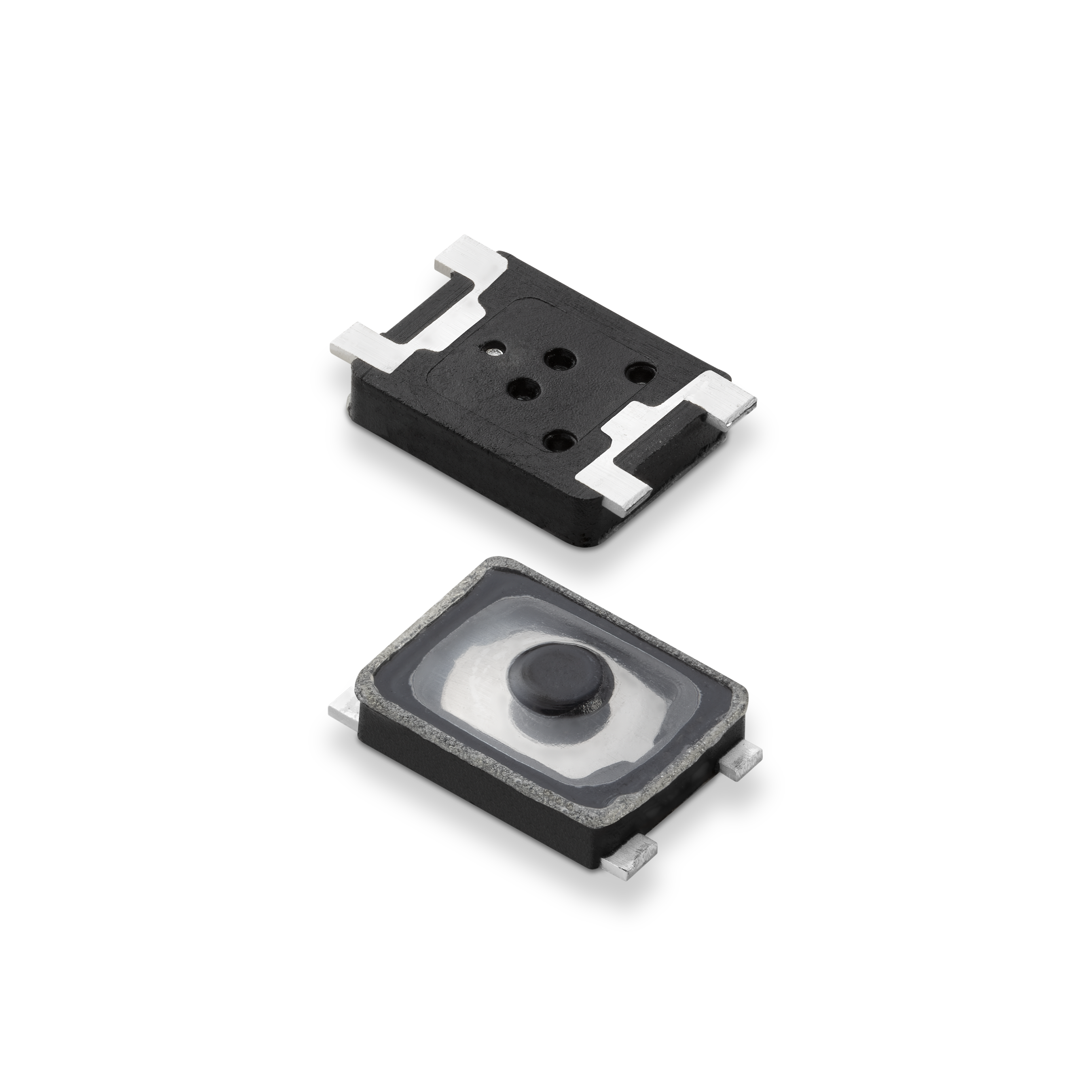

Nano size Tact Switch for SMT

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Nano size Tact Switch for SMT

Part	Actuator Height off PCB, Vertical [z]	Switch Travel [custom]	Mounting Type	Ingress Protection	Actuator Type	Contact Rating @ Voltage [x]	Outline [y]	Outline [x]	Actuator Orientation	Illumination	Termination Style	Operating Force	Switch Function	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Length, Right Angle

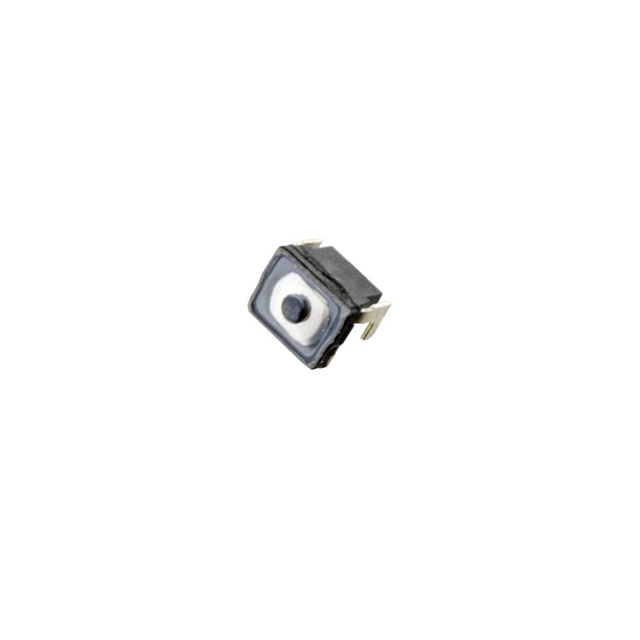

Littelfuse/Commercial Vehicle Products NANOT 100 AS	0.55 mm	0.1 mm	Surface Mount	IP57 - Dust Protected Waterproof	Standard	0.02 A 15 VDC	1.65 mm	2.1 mm	Top Actuated	Non-Illuminated	SMD (SMT) Tab	100 gf	Off-Mom	200000 Cycles	85 °C	-40 °C	SPST-NO
Littelfuse/Commercial Vehicle Products NANOT 160 AS	0.55 mm	0.1 mm	Surface Mount	IP57 - Dust Protected Waterproof	Standard	0.02 A 15 VDC	1.65 mm	2.1 mm	Top Actuated	Non-Illuminated	SMD (SMT) Tab		Off-Mom	300000 Cycles	85 °C	-40 °C	SPST-NO
Littelfuse/Commercial Vehicle Products NanoT 160 BP		0.1 mm	Surface Mount Right Angle	IP57 - Dust Protected Waterproof	Standard	0.02 A 15 VDC	1.65 mm	2.2 mm	Side Actuated	Non-Illuminated	SMD (SMT) Tab		Off-Mom	300000 Cycles	85 °C	-40 °C	SPST-NO	0.6 mm

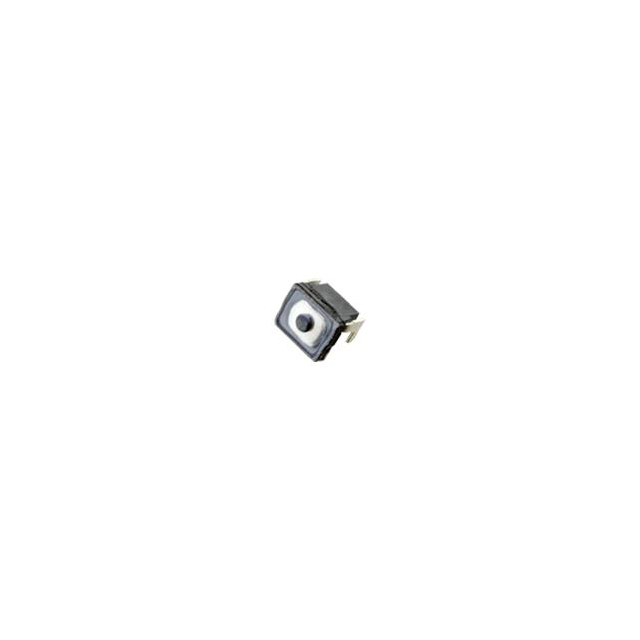

Littelfuse/Commercial Vehicle Products NANOT 240 BP		0.1 mm	Surface Mount Right Angle	IP57 - Dust Protected Waterproof	Standard	0.02 A 15 VDC	1.65 mm	2.2 mm	Side Actuated	Non-Illuminated	SMD (SMT) Tab	240 gf	Off-Mom	200000 Cycles	85 °C	-40 °C	SPST-NO	0.6 mm

Catalog

Nano size Tact Switch for SMT

Key Features

• SMT and PIP versions

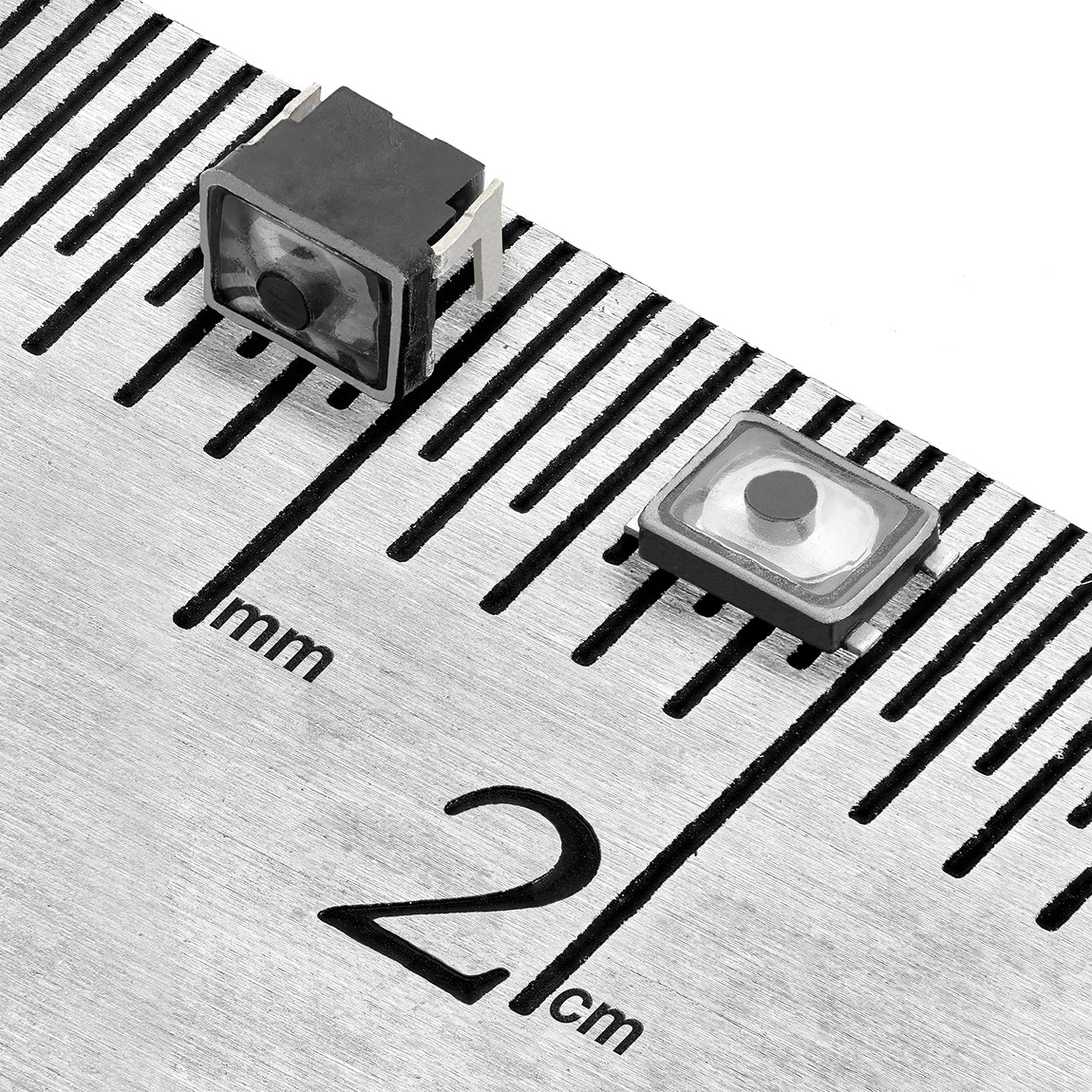

• 2.1 x 1.65 x 0.55 mm and 2.2 x 1.7 x 1.65 mm form factor

• IP67

Description

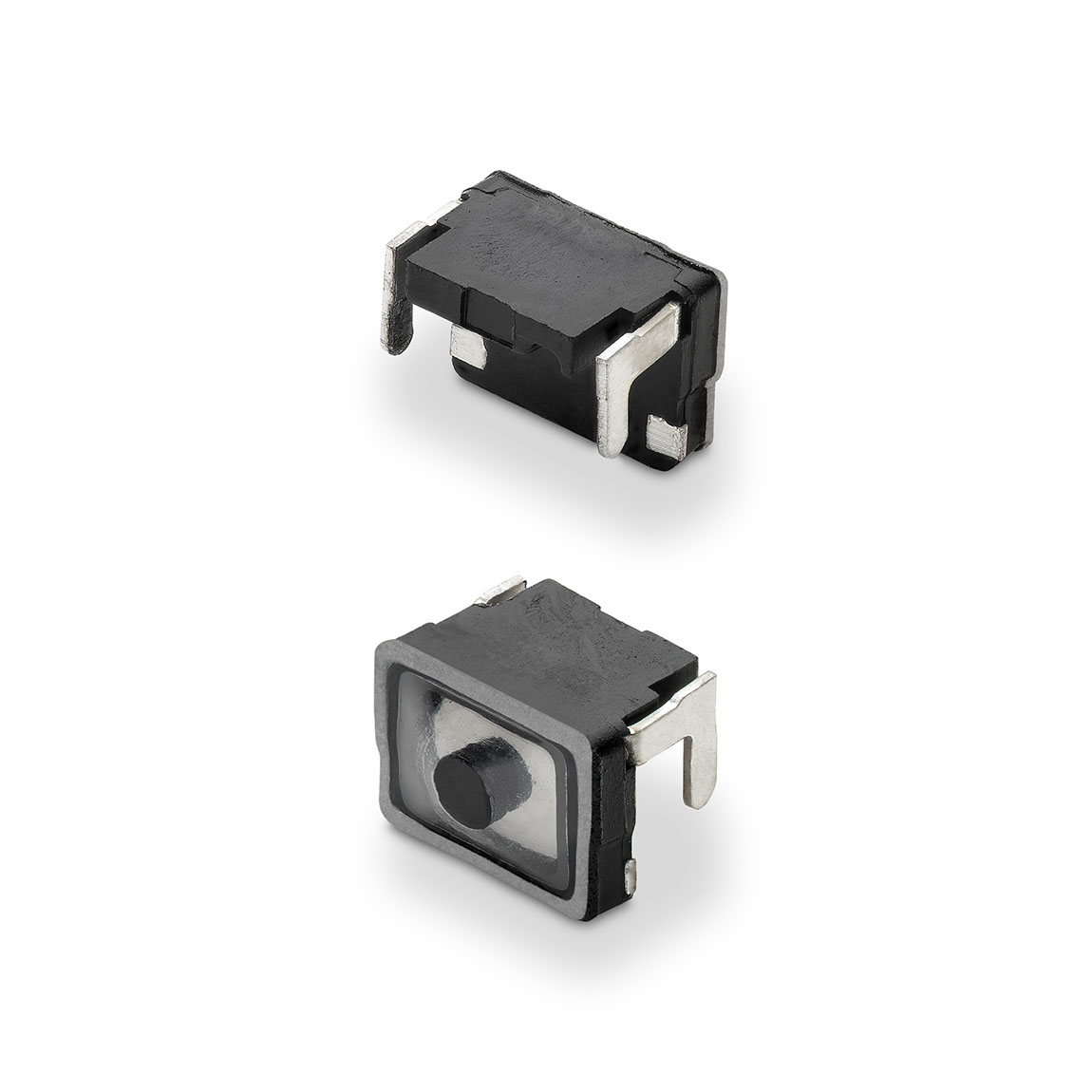

NanoT series nano size tactile switch is the smallest ever in top actuated and side actuated version. The latest being available in full SMT or PIP for a stronger shear resistance.
