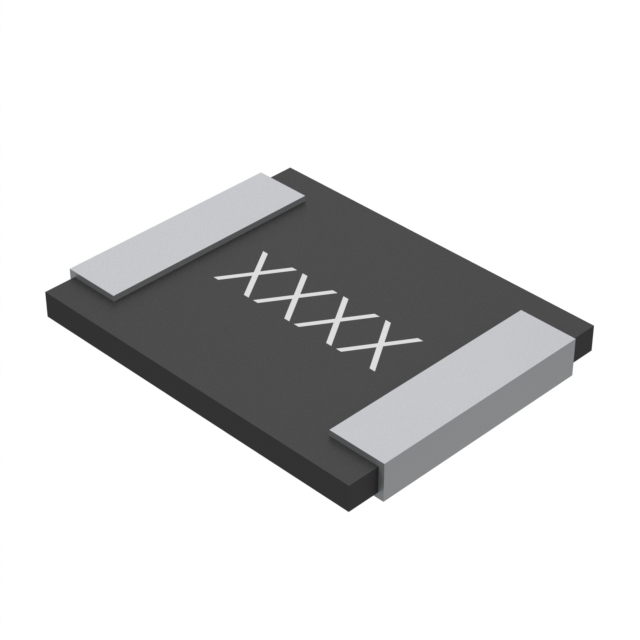

PMR25HZPJ000 Series

3225(1210)Size, Ultra-Low Ohmic Jumper Resistors (AEC-Q200 Qualified)

Catalog

3225(1210)Size, Ultra-Low Ohmic Jumper Resistors (AEC-Q200 Qualified)

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Tolerance	Composition	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Terminations	Supplier Device Package	Ratings	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Features
Rohm Semiconductor PMR25HZPJ000	0.47 mm	0.019 in	0 Ohms	Jumper	Metal Element	3.2 mm	2.5 mm	0.126 in	0.098 in	2	1210	AEC-Q200	1210	3225 Metric	155 °C	-55 °C	Automotive AEC-Q200 Current Sense

Catalog

3225(1210)Size, Ultra-Low Ohmic Jumper Resistors (AEC-Q200 Qualified)

Description

ROHM's ultra-low resistance jumper chip resistors feature a maximum conduction resistance of 0.5mO with improved rated current, resulting in minimal voltage loss and voltage drop at high currents.
