338171 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

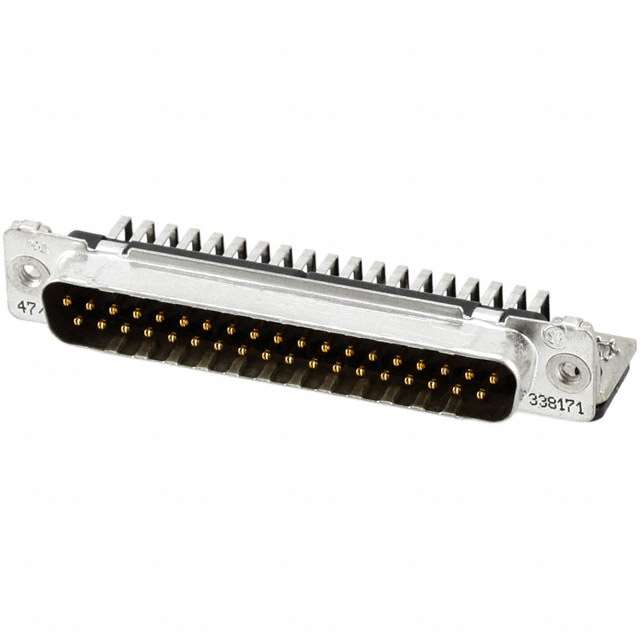

CONN D-SUB PLUG 37POS R/A SLDR
| Part | Connector Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Mounting Type | Backset Spacing | Backset Spacing | Current Rating (Amps) | Number of Rows | Contact Type | Material Flammability Rating | Flange Feature | Shell Size, Connector Layout | Color | Contact Finish | Termination | Dielectric Material | Number of Positions | Features | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Male Pins Plug | Phosphor Bronze | 105 ░C | -55 °C | 125 VDC | Through Hole Right Angle | 0.406 in | 10.3 mm | 6 A | 2 | Signal | UL94 V-0 | Housing/Shell (4-40) | 4 (DC C) | Black | Gold | Solder | Polyester Glass Filled | 37 | Board Lock Grounding Indents | D-Sub |
 TE Connectivity Raychem Cable Protection | Male Pins Plug | Phosphor Bronze | 105 ░C | -55 °C | 125 VDC | Through Hole Right Angle | 0.406 in | 10.3 mm | 6 A | 2 | Signal | UL94 V-0 | Housing/Shell (M3) | 4 (DC C) | Black | Gold | Solder | Polyester Glass Filled | 37 | Board Lock Grounding Indents | D-Sub |
