R1131820 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

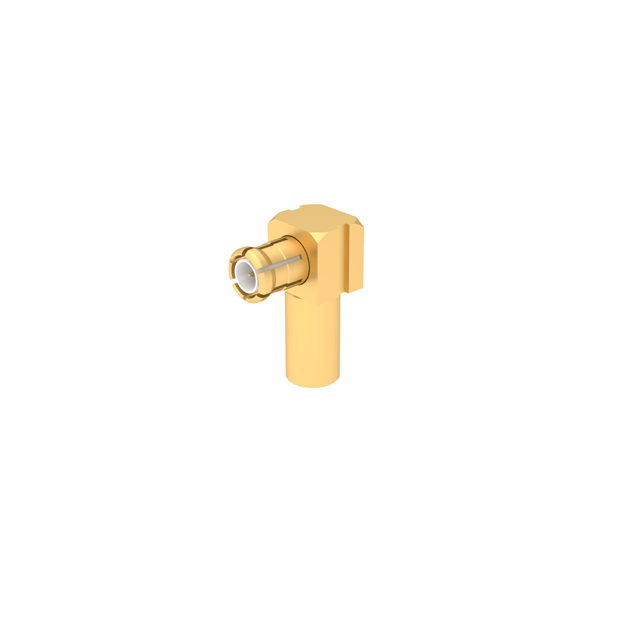

MCX M RA CR 2.6/50S C100
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Center Contact Plating | Dielectric Material | Includes | Mating Cycles | Voltage Rating | Body Material | Contact Termination | Frequency - Max [Max] | Housing Color | Fastening Type | Number of Ports | Mounting Type | Impedance | Connector Type | Shield Termination | Center Contact Material | Cable Group | Cable Group | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 155 C | -55 C | Gold | Gold | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 End Cap 1 Ferrule 1 Insulator | 500 | 170 V | Brass | Crimp | 6000 MHz | Gold | Snap-On | 1 | Free Hanging (In-Line) Right Angle | 50 Ohms | Plug Male Pin | Crimp | Brass | RG-174 | 316 | MCX |
