3S616 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

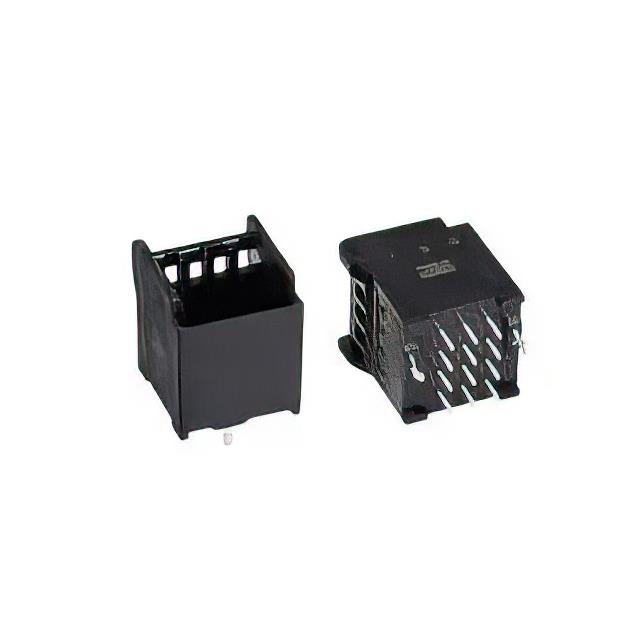

IDC CONNECTOR, BOARD IN CONNECTOR, 3 MM, 4 ROW, 16 CONTACTS, THROUGH HOLE MOUNT
| Part | Contact Finish - Post | Contact Finish - Mating | Material Flammability Rating | Number of Positions Loaded | Connector Type | Pitch - Mating | Pitch - Mating | Contact Shape | Insulation Color | Contact Type | Voltage Rating | Style | Insulation Material | Current Rating (Amps) | Contact Material | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Post | Contact Length - Post | Insulation Height [custom] | Insulation Height | Termination | Features | Number of Positions | Mounting Type | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | Tin | Gold | UL94 V-0 | All | Header | 3 mm | 0.118 in | Square | Black | Male Pin | 32 VAC | Board to Board Cable | Polybutylene Terephthalate (PBT) | 2 A | Copper Alloy | Push-Pull | 85 °C | -20 ░C | 0.118 in | 3 mm | 2.6 mm | 0.102 in | 0.717 in | 18.2 mm | Solder | Solder Retention | 16 | Through Hole | Shrouded - 4 Wall |
