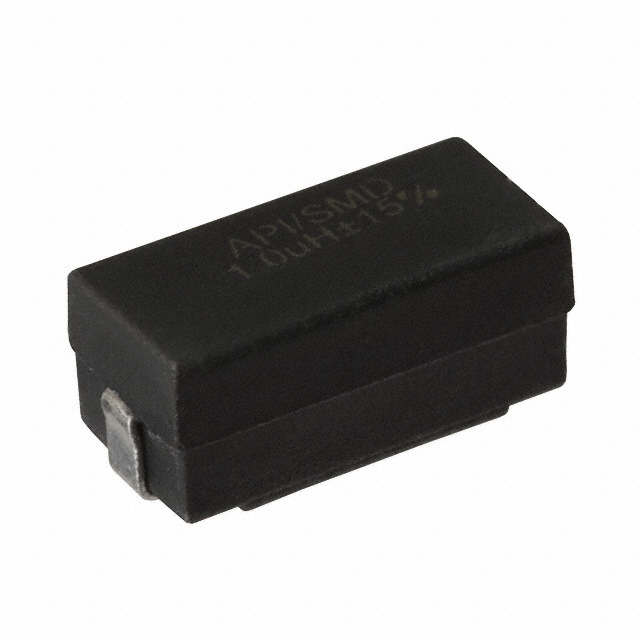

4922 Series

Manufacturer: Delevan

Catalog

FIXED IND 12MH 65MA 93 OHM SMD

Part	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Tolerance	Current Rating (Amps)	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Material - Core	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max]	Current - Saturation (Isat)	Shielding	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Delevan 4922-50L	Drum Core Wirewound	6.09 mm	0.505 in	12.82 mm	0.24 "	Surface Mount	15 %	0.065 A	1 kHz	-55 C	125 °C	12 mH	Ferrite	Nonstandard	5.84 mm	0.23 in	65 mA	Unshielded	93 Ohm
Delevan 4922-34K	Drum Core Wirewound	6.35 mm		0.52 in 13.21 mm		Surface Mount	10 %	0.33 A	1 kHz	-55 C	125 °C	560 µH	Ferrite	2-SMD	5.84 mm	0.23 in	330 mA	Unshielded	3.75 Ohm
Delevan 4922-32K	Drum Core Wirewound	6.35 mm		0.52 in 13.21 mm		Surface Mount	10 %	0.38 A	1 kHz	-55 C	125 °C	390 µH	Ferrite	2-SMD	5.84 mm	0.23 in	380 mA	Unshielded	2.73 Ohm
Delevan 4922-24H	Drum Core Wirewound	6.35 mm		0.52 in 13.21 mm		Surface Mount	3 %	0.81 A	1 kHz	-55 C	125 °C	82 µH	Ferrite	2-SMD	5.84 mm	0.23 in	810 mA	Unshielded	604 mOhm
Delevan 4922-42H	Drum Core Wirewound	6.35 mm		0.52 in 13.21 mm		Surface Mount	3 %	131 mA	1 kHz	-55 C	125 °C	2.7 mH	Ferrite	2-SMD	5.84 mm	0.23 in	131 mA	Unshielded	23 Ohm
Delevan 4922-13K	Drum Core Wirewound	6.35 mm		0.52 in 13.21 mm		Surface Mount	10 %	2.36 A	1 kHz	-55 C	125 °C	10 µH	Ferrite	2-SMD	5.84 mm	0.23 in	2.36 A	Unshielded	71 mOhm
Delevan 4922-10J	Drum Core Wirewound	6.35 mm		0.52 in 13.21 mm		Surface Mount	5 %	2.79 A	1 kHz	-55 C	125 °C	5.6 µH	Ferrite	2-SMD	5.84 mm	0.23 in	2.79 A	Unshielded	51 mOhm
Delevan 4922-26K	Drum Core Wirewound	6.35 mm		0.52 in 13.21 mm		Surface Mount	10 %	0.73 A	1 kHz	-55 C	125 °C		Ferrite	2-SMD	5.84 mm	0.23 in	730 mA	Unshielded		735 mOhm
Delevan 4922-27J	Drum Core Wirewound	6.35 mm		0.52 in 13.21 mm		Surface Mount	5 %	0.63 A	1 kHz	-55 C	125 °C	150 µH	Ferrite	2-SMD	5.84 mm	0.23 in	630 mA	Unshielded	998 mOhm
Delevan 4922-30J	Drum Core Wirewound	6.35 mm		0.52 in 13.21 mm		Surface Mount	5 %	470 mA	1 kHz	-55 C	125 °C	270 µH	Ferrite	2-SMD	5.84 mm	0.23 in	470 mA	Unshielded	1.77 Ohm
