IE Series

Catalog

AUDIO INDICATOR MECHANICAL 9V 15V 25MA 12V 81DBA THROUGH HOLE PIN

Part	Input Type	Sound Pressure Level (SPL)	Voltage - Rated	Frequency	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Driver Circuitry	Technology	Port Location	Termination	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage Range [Min]	Voltage Range [Max]	Operating Mode	Operating Temperature [Min]	Operating Temperature [Max]	Current - Supply	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max)	Height - Seated (Max)

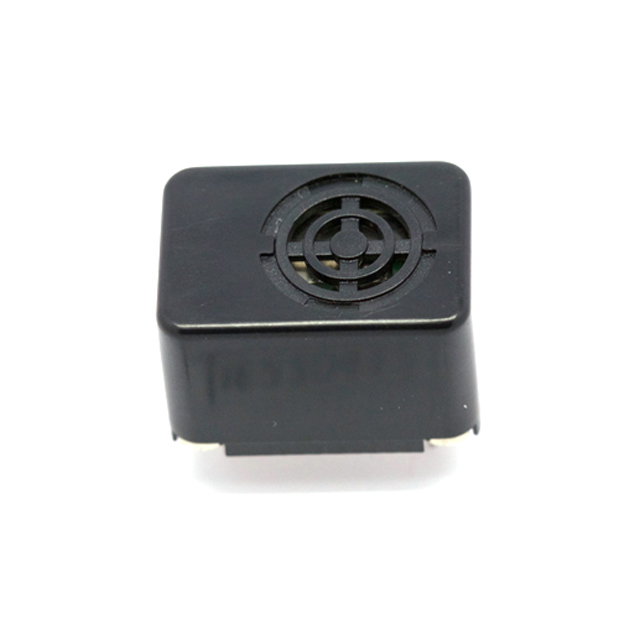

DB Unlimited IE220412-1	DC	81 dB	12 VDC	400 Hz	Through Hole	0.571 "	14.5 mm	Indicator Internally Driven	Electromechanical	Top	PC Pins	0.63 "	16 mm	0.886 in	22.5 mm	9 V	15 V	Single Tone	-30 ░C	70 °C	25 mA
DB Unlimited IE123105-1	DC	85 dB	5 V	3.1 kHz	Through Hole	0.303 in		Indicator Internally Driven	Electromechanical	Top	PC Pins					3 V	7 V	Single Tone	-30 ░C	70 °C	30 mA	0.472 "	12 mm	7.7 mm

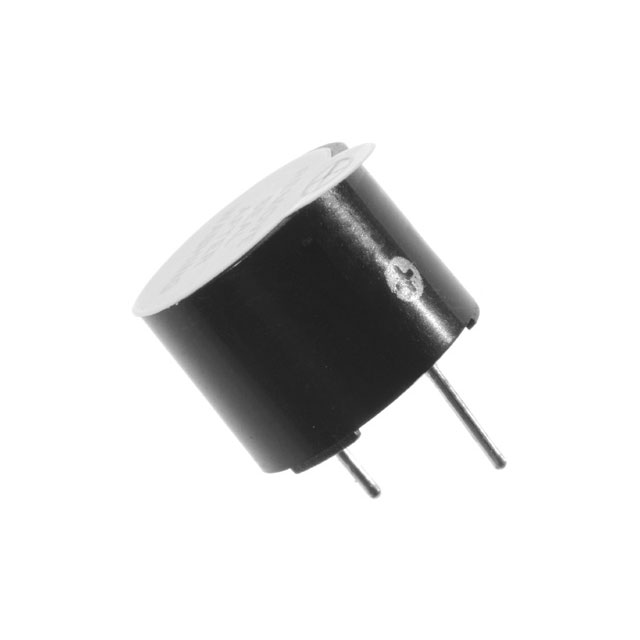

DB Unlimited IE122305-7	DC	85 dB	5 V	2.3 kHz	Through Hole		0.382 in	Indicator Internally Driven	Electromechanical	Top	PC Pins					4 VDC	7 V	Single Tone	-30 ░C	70 °C	30 mA	0.472 "	12 mm		9.7 mm
DB Unlimited IE260412-1	DC	95 dB	12 VDC	400 Hz	Through Hole	0.795 in		Indicator Internally Driven	Electromechanical	Top	PC Pins	1.024 in	26 mm	1.024 in	26 mm	8 V	16 V	Single Tone	-30 ░C	70 °C	50 mA			20.2 mm
