ALCOSWITCH PBES16 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

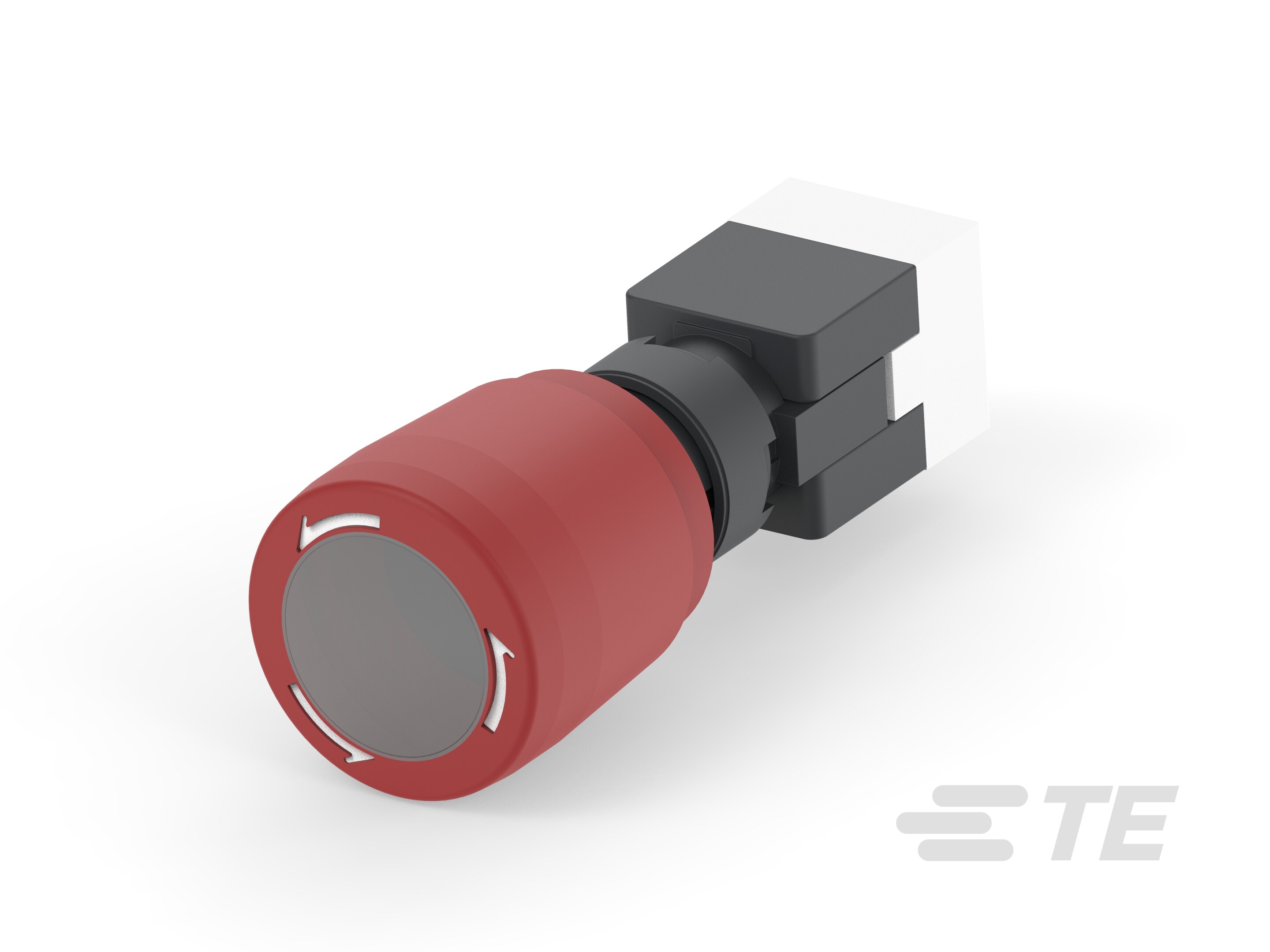

PBES16 28 INCA 14V AC/DC 40MA 1NC 1NC
| Part | Panel Cutout Dimensions [diameter] | Termination Style | Ingress Protection | Voltage Rating - AC | Mounting Type | Voltage Rating - DC | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Circuit | Reset Operation | Illumination Voltage (Nominal) | Illumination Voltage (Nominal) [Max] | Illumination Voltage (Nominal) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight Water Resistant | 125 V | Panel Mount Front | 125 VDC | 3 A 220 mA | 55 °C | -25 °C | On-Off | SPST-NC x 2 | Twist | |||
 TE Connectivity AMP Connectors | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight Water Resistant | 125 V | Panel Mount Front | 125 VDC | 3 A 220 mA | 70 °C | -25 °C | Off-On On-Off | SPST-NC SPST-NO | Twist | |||
 TE Connectivity AMP Connectors | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight Water Resistant | 125 V | Panel Mount Front | 125 VDC | 3 A 220 mA | 55 °C | -25 °C | On-Off | SPST-NC x 2 | Twist | |||
 TE Connectivity AMP Connectors | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight Water Resistant | 125 V | Panel Mount Front | 125 VDC | 3 A 220 mA | 55 °C | -25 °C | Off-On On-Off | SPST-NC SPST-NO | Twist | 33 VAC/DC | ||
TE Connectivity AMP Connectors | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight Water Resistant | 125 V | Panel Mount Front | 125 VDC | 3 A 220 mA | 55 °C | -25 °C | On-Off | SPST-NC | Twist | 24 VAC/DC | 12 VAC/DC | |
TE Connectivity AMP Connectors | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight Water Resistant | 125 V | Panel Mount Front | 125 VDC | 3 A 220 mA | 55 °C | -25 °C | On-Off | SPST-NC x 2 | Twist | 24 V | ||
 TE Connectivity AMP Connectors | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight Water Resistant | 125 V | Panel Mount Front | 125 VDC | 3 A 220 mA | 55 °C | -25 °C | On-Off | SPST-NC x 2 | Twist | 24 VAC/DC | 12 VAC/DC | |
TE Connectivity AMP Connectors | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight Water Resistant | 125 V | Panel Mount Front | 125 VDC | 3 A 220 mA | 55 °C | -25 °C | Off-On On-Off | SPST-NC SPST-NO | Twist | 6 VDC | ||
 TE Connectivity AMP Connectors | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight Water Resistant | 125 V | Panel Mount Front | 125 VDC | 3 A 220 mA | 55 °C | -25 °C | On-Off | SPST-NC | Twist | 6 VDC | ||
 TE Connectivity AMP Connectors | 16 mm | Solder Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight Water Resistant | 125 V | Panel Mount Front | 125 VDC | 3 A 220 mA | 55 °C | -25 °C | On-Off | SPST-NC x 2 | Twist | 33 VAC/DC |
