WR9QI250 Series

Catalog

AC/DC WALL MOUNT ADAPTER 24V 6W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Polarization	Approval Agency	Current - Output (Max) [Max]	Cord Length	Cord Length	Applications	Region Utilized	Input Connector	Standard Number	Input Type	Form	No Load Power Consumption	Voltage - Output	Output Connector [diameter]	Output Connector	Output Connector [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]

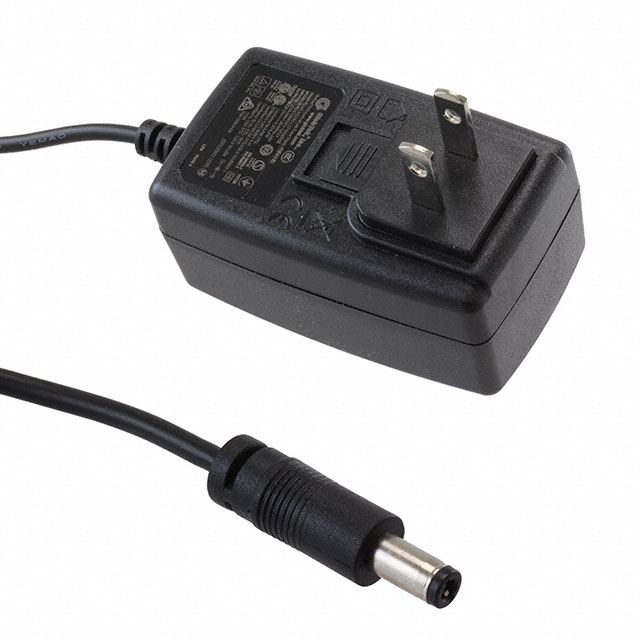

GlobTek, Inc. WR9QI250LCPNAIMR6B	-20 ░C	50 °C	Level VI	Positive Center	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	250 mA	1.5 m	59 in	Household Appliances ITE (Commercial) Medical	International	Multi-Blade (Sold Separately)	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Multi-Blade (Sold Separately)	Wall Mount	75 mW	24 V	2.5 mm 5.5 mm	Barrel Plug	11 mm	2.91 in	43.5 mm	36.8 mm	1.71 "	1.45 in	74 mm	264 VAC	90 VAC	6 W

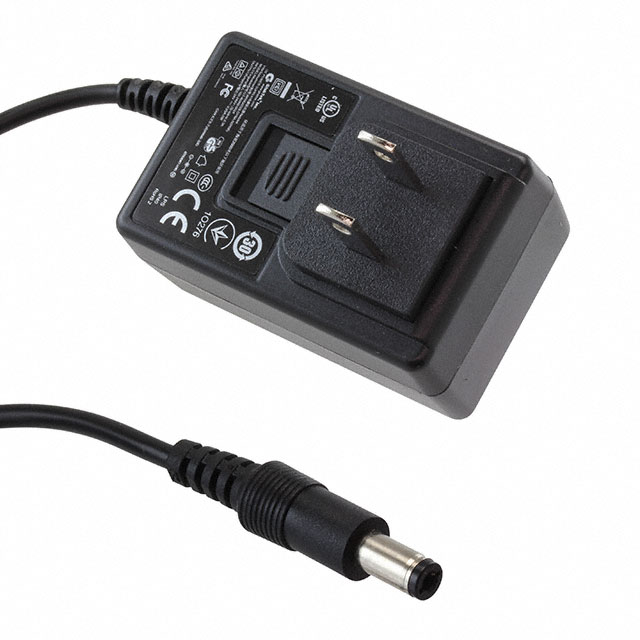

GlobTek, Inc. WR9QI250LCPNA-N(R6B)	0 °C	40 °C	Level VI	Positive Center	BSI CB CCC CE cULus EAC FCC GS LPS PSE RCM UkrSEPRO VCCI	250 mA	1.83 m	72 in	ITE (Commercial)	International	Multi-Blade (Sold Separately)	60950-1	Multi-Blade (Sold Separately)	Wall Mount	75 mW	24 V	2.5 mm 5.5 mm	Barrel Plug	11 mm	2.52 in	40.5 mm		1.59 in	1.18 in		264 VAC	90 VAC	6 W	64 mm	30 mm

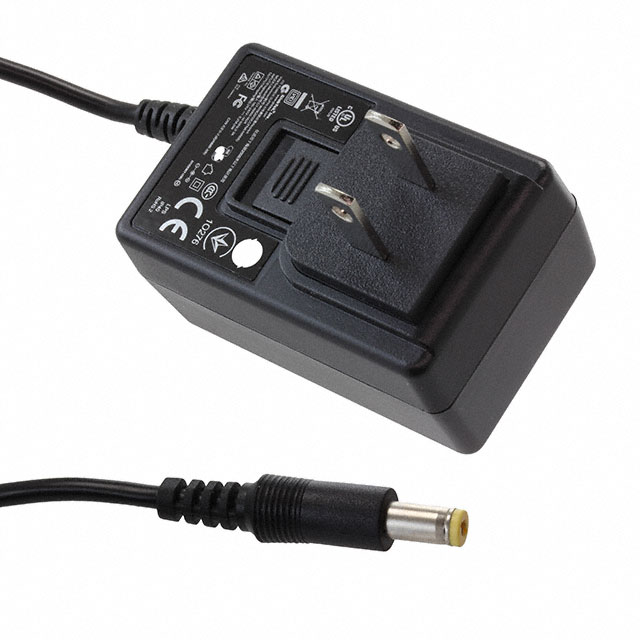

GlobTek, Inc. WR9QI250CCPNA-N(R6B)	0 °C	40 °C	Level VI	Positive Center	BSI CB CCC CE cULus EAC FCC GS LPS PSE RCM UkrSEPRO VCCI	250 mA	1.83 m	72 in	ITE (Commercial)	International	Multi-Blade (Sold Separately)	60950-1	Multi-Blade (Sold Separately)	Wall Mount	75 mW	24 V	2.1 mm 5.5 mm	Barrel Plug	11 mm	2.52 in	40.5 mm		1.59 in	1.18 in		264 VAC	90 VAC	6 W	64 mm	30 mm
