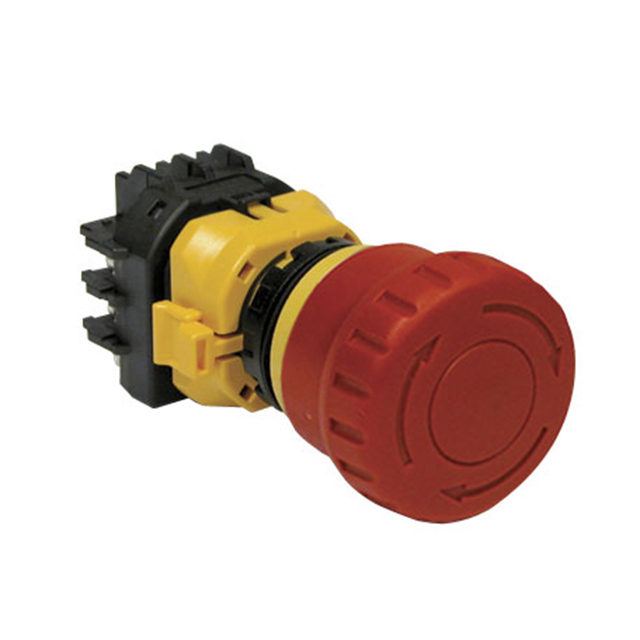

XW1E Series

Manufacturer: IDEC

Catalog

EMERGENCY STOP SWITCH, 4PST-3NC, SPST-NO, PUSHLOCK RESET/PUSH-PULL, SCREW, 5 A, 250 V, 250 V

Part	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Voltage Rating - DC	Ingress Protection	Reset Operation	Voltage Rating - AC	Features	Illumination Voltage (Nominal)
IDEC XW1E-BV513M-R
IDEC XW1E-BV402M-R	On-Off	22.3 mm	DPST-NC	Screw Terminal	-25 °C	60 °C	2 A 5 A	Panel Mount Front	30 V	IP65 - Dust Tight Water Resistant	Pull Twist	125 V
IDEC XW1E-BV404M-R	On-Off	22.3 mm	4PST-NC	Screw Terminal	-25 °C	60 °C	2 A 5 A	Panel Mount Front	30 V	IP65 - Dust Tight Water Resistant	Pull Twist	125 V
IDEC XW1E-LV404Q4M-R	On-Off	22.3 mm	4PST-NC	Screw Terminal	-25 °C	55 °C	2 A 5 A	Panel Mount Front	30 V	IP65 - Dust Tight Water Resistant	Pull Twist	125 V	Illuminated (Red)	24 VAC/DC
IDEC XW1E-BV422M-R	Off-On On-Off	22.3 mm	4PST-2NO/2NC	Screw Terminal	-25 °C	60 °C	2 A 5 A	Panel Mount Front	30 V	IP65 - Dust Tight Water Resistant	Pull Twist	125 V
IDEC XW1E-BV411M-R	Off-On On-Off	22.3 mm	DPST-NO/NC	Screw Terminal	-25 °C	60 °C	2 A 5 A	Panel Mount Front	30 V	IP65 - Dust Tight Water Resistant	Pull Twist	125 V
IDEC XW1E-LV422Q4M-R	Off-On On-Off	22.3 mm	4PST-2NO/2NC	Screw Terminal	-25 °C	55 °C	2 A 5 A	Panel Mount Front	30 V	IP65 - Dust Tight Water Resistant	Pull Twist	125 V	Illuminated (Red)	24 VAC/DC
