IL-G-8P Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER R/A 8POS 2.5MM
| Part | Insulation Material | Pitch - Mating | Pitch - Mating | Number of Rows | Material Flammability Rating | Contact Type | Number of Positions Loaded | Insulation Color | Connector Type | Termination | Contact Length - Mating | Contact Length - Mating | Insulation Height [custom] | Insulation Height [custom] | Contact Finish - Post | Mounting Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Material | Shrouding | Style | Contact Shape | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Mated Stacking Heights | Insulation Height | Insulation Height | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

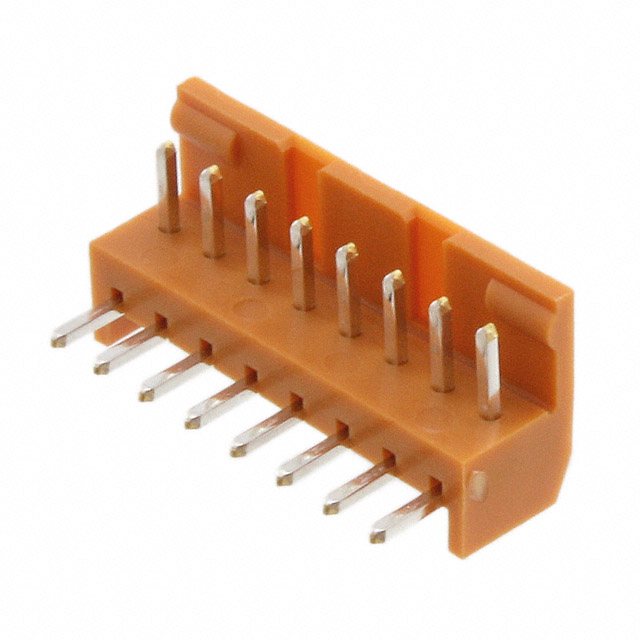

 JAE Electronics | Nylon 6/6 Polyamide (PA66) | 2.5 mm | 0.098 in | 1 | UL94 V-0 | Male Pin | All | Brown | Header | Solder | 4 mm | 0.157 in | 0.236 " | 6 mm | Tin | Right Angle Through Hole | Friction Lock | 85 °C | -40 C | 8 | Brass | Shrouded - 1 Wall | Board to Cable/Wire | Square | 0.138 in | 3.5 mm | 3 A | |||||

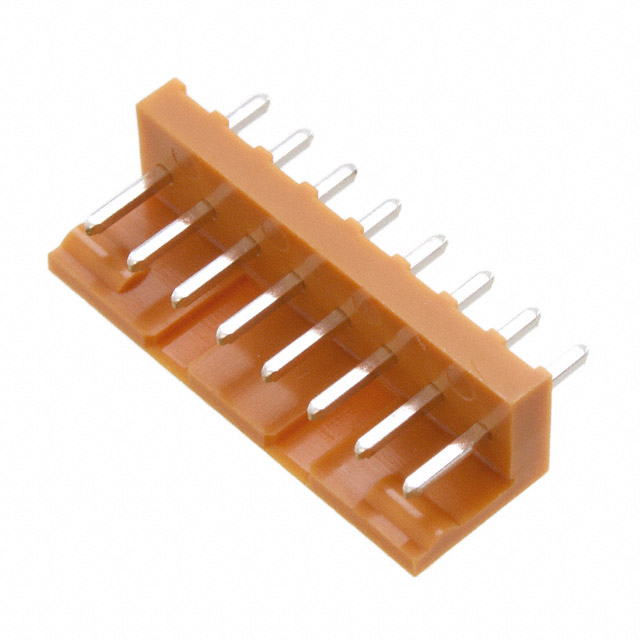

 JAE Electronics | Nylon 6/6 Polyamide (PA66) | 2.5 mm | 0.098 in | 1 | UL94 V-0 | Male Pin | All | Brown | Header | Solder | 4 mm | 0.157 in | Tin | Through Hole | Friction Lock | 85 °C | -40 C | 8 | Brass | Shrouded - 1 Wall | Board to Cable/Wire | Square | 0.138 in | 3.5 mm | 3 A | 10 mm | 0.28 in | 7.1 mm | 9.6 mm | 0.378 in |
