SQE48T20120 Series

Catalog

DC DC CONVERTER 12V 240W

Part	Mounting Type	Current - Output (Max) [Max]	Power (Watts)	Efficiency	Package / Case	Voltage - Output 1	Control Features	Voltage - Isolation	Number of Outputs	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Supplier Device Package
Bel Fuse Inc. SQE48T20120-NDBBG	Through Hole	20 A	240 Watts	94.2 %	8-DIP Module 1/8 Brick	12 V	Active Low Enable	2250 VDC	1	OCP OTP OVP Remote On/Off SCP UVLO	22.9 mm	0.5 in	58.4 mm	2.3 in	12.7 mm	0.9 in	Intermediate Bus Converter	36 V	75 V	ITE (Commercial)	85 °C	-40 C
Bel Fuse Inc. SQE48T20120-NDB0G-S1	Through Hole	20 A	240 Watts	94.2 %	Eighth Brick	12 V		2250 VDC	1	OCP OTP OVP Remote On/Off UVLO		0.44 in	58.4 mm	2.3 in		0.9 in	Isolated Module	36 V	75 V	ITE (Commercial)	85 °C	-40 °C	11.2 mm	22.8 mm	Eighth Brick

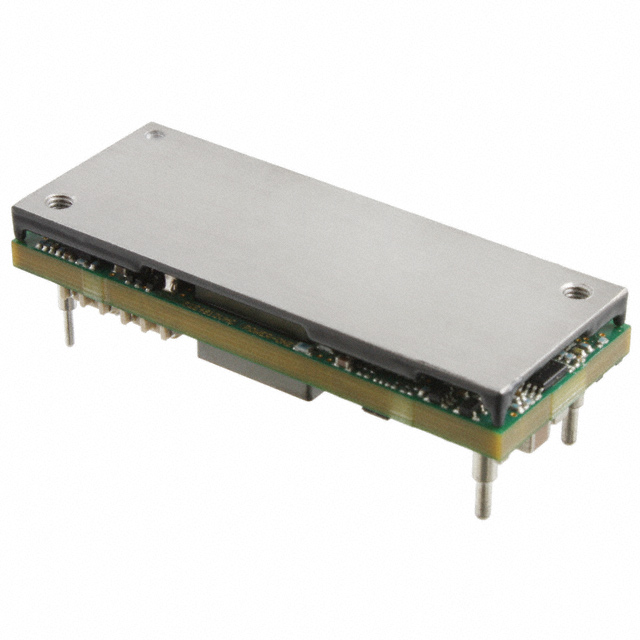

Bel Fuse Inc. SQE48T20120-NDABG	Through Hole	20 A	240 Watts	94.5 %	5-DIP Module 1/8 Brick	12 V	Active Low Enable	2250 VDC	1	Remote On/Off UVLO	22.9 mm	0.5 in	58.4 mm	2.3 in	12.7 mm	0.9 in	Intermediate Bus Converter	36 V	75 V	ITE (Commercial)	85 °C	-40 C
Bel Fuse Inc. SQE48T20120-NDB0G	Through Hole	20 A	240 Watts	94.2 %	8-DIP Module 1/8 Brick	12 V	Active Low Enable	2250 VDC	1	OCP OTP OVP Remote On/Off SCP UVLO		0.37 in	58.4 mm	2.3 in		0.9 in	Intermediate Bus Converter	36 V	75 V	ITE (Commercial)	85 °C	-40 C	9.4 mm	22.9 mm
