VP Series

Catalog

ROCKER SWITCHES VP1HT-B1144-00000

Part	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Lens Transparency	Lamp Color	Panel Cutout Shape	Voltage	Type	Current	Lens Style	Ratings	Lens Color
Carling Technologies VP1HT-B1144-00000	Quick Connect - 0.250" (6.3mm)	21.08 mm	0.83 "	1.45 "	36.83 mm	Clear	Green Red	Rectangle	12 V	LED	20 mA	Square with Flat Top	DC	Colorless
Carling Technologies VP111-B11ER-00000	Quick Connect - 0.250" (6.3mm)	21.08 mm	0.83 "	1.45 "	36.83 mm	Clear		Rectangle	125 V	Neon		Square with Flat Top	AC	Amber Red
Carling Technologies VP1HH-B2255-00000	Quick Connect - 0.250" (6.3mm)	21.08 mm	0.83 "	1.45 "	36.83 mm	Diffused	Green	Rectangle	12 V	LED	20 mA	Square with Flat Top	DC	Clear
Carling Technologies VP177-B22SS-00000	Quick Connect - 0.250" (6.3mm)	21.08 mm	0.83 "	1.45 "	36.83 mm	Diffused		Rectangle	18 V	Incandescent		Square with Flat Top	DC	Red
Carling Technologies VP1T0-B1ZRZ-00000	Quick Connect - 0.250" (6.3mm)	21.08 mm	0.83 "	1.45 "	36.83 mm	Clear	Red	Rectangle	12 V	LED	20 mA	Square with Flat Top	DC	Red
Carling Technologies VP166-B11RK-00000	Quick Connect - 0.250" (6.3mm)	21.08 mm	0.83 "	1.45 "	36.83 mm	Clear		Rectangle	12 V	Incandescent		Square with Flat Top	DC	Green Red

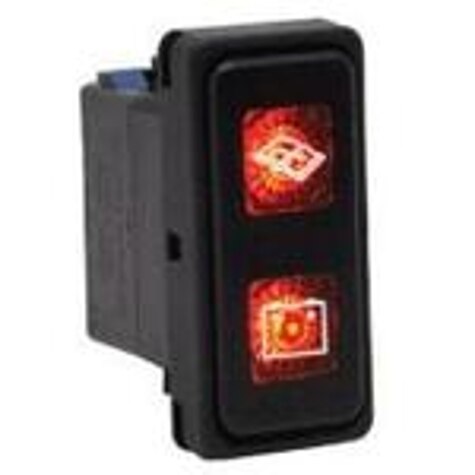

Carling Technologies VP1HT-B11KR-00000	Quick Connect - 0.250" (6.3mm)	21.08 mm	0.83 "	1.45 "	36.83 mm	Clear	Green Red	Rectangle	12 V	LED	20 mA	Square with Flat Top	DC	Green Red
Carling Technologies VP1V0-15Z9Z-Y3100	Quick Connect - 0.250" (6.3mm)	21.08 mm	0.83 "	1.45 "	36.83 mm	Clear	Red	Rectangle	24 V	LED	20 mA	Oval with Flat Top	DC	White
Carling Technologies VP188-B11E9-00000	Quick Connect - 0.250" (6.3mm)	21.08 mm	0.83 "	1.45 "	36.83 mm	Clear		Rectangle	24 V	Incandescent		Square with Flat Top	DC	Amber White
Carling Technologies VP166-B11RR-DV13V	Quick Connect - 0.250" (6.3mm)	21.08 mm	0.83 "	1.45 "	36.83 mm	Clear		Rectangle	12 V	Incandescent		Square with Flat Top	DC	Red
