NPTC041 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

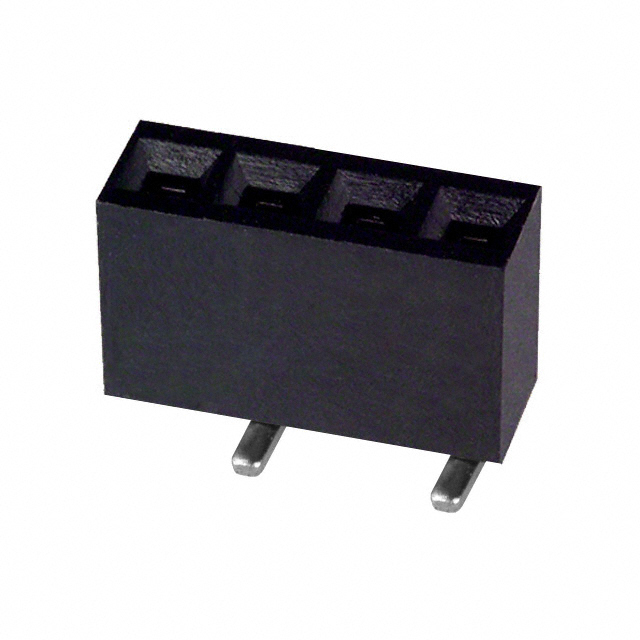

CONN HDR 4POS 0.1 TIN SMD
| Part | Contact Shape | Contact Material | Insulation Material | Fastening Type | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Finish - Post | Mounting Type | Connector Type | Number of Positions | Voltage Rating | Insulation Color | Number of Positions Loaded | Material Flammability Rating | Current Rating (Amps) | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Push-Pull | 0.28 in | 7.1 mm | 0.1 " | 2.54 mm | 1 | -40 C | 105 ░C | Female Socket | Tin | Surface Mount | Header Top or Bottom Entry | 4 | 250 V | Black | All | UL94 V-0 | 3 A | Solder |
