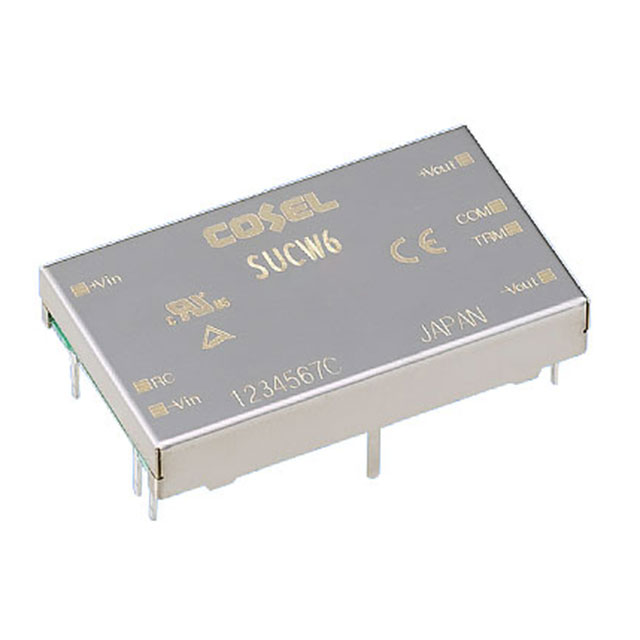

SUCW60515 Series

Catalog

DC DC CONVERTER +/-15V 6W

Part	Efficiency	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Mounting Type	Package / Case	Voltage - Output 2	Voltage - Output 1	Number of Outputs	Type	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Features
Cosel USA, Inc. SUCW60515BP	78 %	ITE (Commercial)	-40 °C	85 °C	6 W	Surface Mount	7-SMD Module	-15 V	15 V	2	Isolated Module	500 V	18.6 mm	7 mm	32.6 mm	0.73 in	1.28 in	0.28 "	4.5 V	9 V
Cosel USA, Inc. SUCW60515C-G	78 %	ITE (Commercial)	-40 °C	85 °C	6 W	Through Hole	7-DIP Module	-15 V	15 V	2	Isolated Module	500 V	18.6 mm	7 mm	32.6 mm	0.73 in	1.28 in	0.28 "	4.5 V	9 V
Cosel USA, Inc. SUCW60515B	78 %	ITE (Commercial)	-40 °C	85 °C	6 W	Surface Mount	7-SMD Module	-15 V	15 V	2	Isolated Module	500 V	18.6 mm	7 mm	32.6 mm	0.73 in	1.28 in	0.28 "	4.5 V	9 V
Cosel USA, Inc. SUCW60515C	78 %	ITE (Commercial)	-40 °C	85 °C		Through Hole	7-DIP Module	-15 V	15 V	2	Isolated Module	500 V	18.6 mm	7 mm	32.6 mm	0.73 in	1.28 in	0.28 "	4.5 V	9 V	OCP Remote On/Off
Cosel USA, Inc. SUCW60515C-C	78 %	ITE (Commercial)	-40 °C	85 °C	6 W	Through Hole	7-DIP Module	-15 V	15 V	2	Isolated Module Conformal Coated	500 V	18.6 mm	7 mm	32.6 mm	0.73 in	1.28 in	0.28 "	4.5 V	9 V
