FDG.1B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 7P GOLD SLDR CUP

Part	Mounting Type	Primary Material	Shell Material	Insert Material	Features	Shell Size - Insert [custom]	Orientation [custom]	Connector Type	Shell Finish	Material Flammability Rating	Color	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Contact Material	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Backshell Material, Plating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shielding	Current Rating (Amps)	Contact Finish - Mating	Number of Positions	Termination	Shell Size - Insert	Cable Opening [Min]	Cable Opening [Max]
LEMO FDG.1B.307.CLAD52	Free Hanging (In-Line)	Metal	Brass	Polyetheretherketone (PEEK)	Backshell	307	G	Plug Male Pins	Chrome	UL94 V-0	Silver	0.205 in	4.2 mm	5.2 mm	0.165 "	Brass	39.4 µin	1 µm	Brass Chrome	Push-Pull	-55 C	250 °C	IP50 - Dust Protected	Shielded	7 A	Gold	7
LEMO FDG.1B.155.LNN
LEMO FDG.1B.307.CYCD42Z	Free Hanging (In-Line)	Metal	Brass	Polyetheretherketone (PEEK)	Backshell	307	G	Plug Male Pins	Chrome	UL94 V-0	Silver	0.165 in	3.1 mm	4.2 mm	0.122 in	Brass	39.4 µin	1 µm	Brass Chrome	Push-Pull	-55 C	250 °C	IP50 - Dust Protected	Shielded	7 A	Gold	7	Crimp
LEMO FDG.1B.306.CLAD62Z	Free Hanging (In-Line)	Metal	Brass	Polyetheretherketone (PEEK)	Backshell		G	Plug Male Pins	Chrome	UL94 V-0	Silver	0.244 "	5.2 mm	6.2 mm	0.205 in	Brass	39.4 µin	1 µm	Brass Chrome	Push-Pull	-55 C	250 °C	IP50 - Dust Protected	Shielded	7 A	Gold	6		306
LEMO FDG.1B.307.CLAD42Z	Free Hanging (In-Line)	Metal	Brass	Polyetheretherketone (PEEK)	Backshell	307	G	Plug Male Pins	Chrome	UL94 V-0	Silver	0.165 in	3.1 mm	4.2 mm	0.122 in	Brass	39.4 µin	1 µm	Brass Chrome	Push-Pull	-55 C	250 °C	IP50 - Dust Protected	Shielded	7 A	Gold	7
LEMO FDG.1B.307.CLAD42	Free Hanging (In-Line)	Metal	Brass	Polyetheretherketone (PEEK)	Backshell	307	G	Plug Male Pins	Chrome	UL94 V-0	Silver	0.165 in	3.1 mm	4.2 mm	0.122 in	Brass	39.4 µin	1 µm	Brass Chrome	Push-Pull	-55 C	250 °C	IP50 - Dust Protected	Shielded	7 A	Gold	7
LEMO FDG.1B.308.CYCD72Z	Free Hanging (In-Line)	Metal	Brass	Polyetheretherketone (PEEK)	Backshell		G	Plug Male Pins	Chrome	UL94 V-0	Silver		6.2 mm	7.2 mm		Brass	39.4 µin	1 µm	Brass Chrome	Push-Pull	-55 C	250 °C	IP50 - Dust Protected	Shielded	5 A	Gold	8	Crimp	308	0.244 in	0.283 in

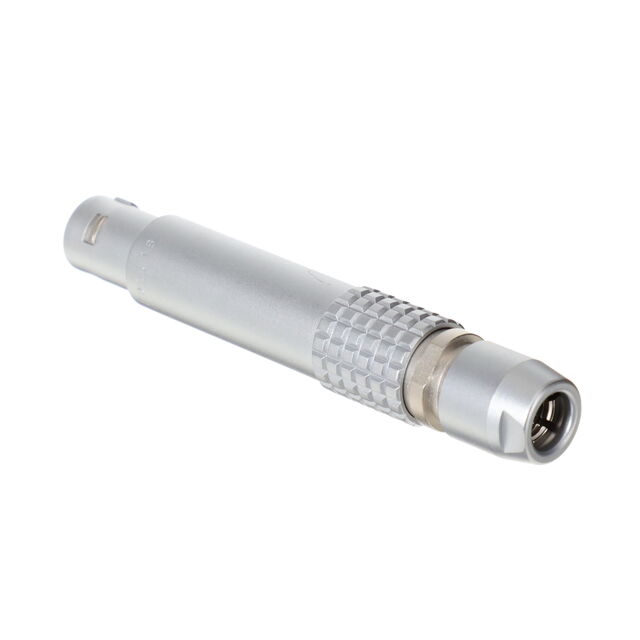

LEMO FDG.1B.304.CLAD52	Free Hanging (In-Line)	Metal	Brass	Polyetheretherketone (PEEK)	Backshell		G	Plug Male Pins	Chrome	UL94 V-0	Silver	0.205 in	4.2 mm	5.2 mm	0.165 "	Brass	39.4 µin	1 µm	Brass Chrome	Push-Pull	-55 C	250 °C	IP50 - Dust Protected	Shielded	10 A	Gold	4		304
LEMO FDG.1B.310.CYCD62	Free Hanging (In-Line)	Metal	Brass	Polyetheretherketone (PEEK)	Backshell		G	Plug Male Pins	Chrome	UL94 V-0	Silver	0.244 "	5.2 mm	6.2 mm	0.205 in	Brass	39.4 µin	1 µm	Brass Chrome	Push-Pull	-55 C	250 °C	IP50 - Dust Protected	Shielded	2.5 A	Gold	10	Crimp	310
