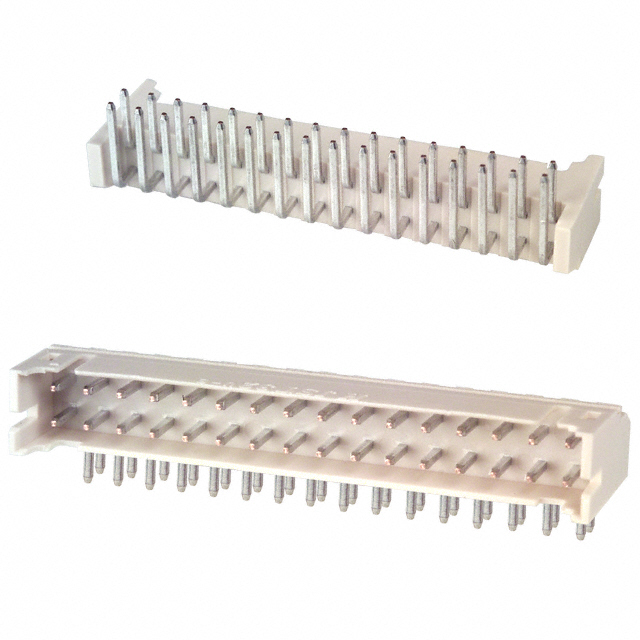

S32B-PHD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 32POS 2MM
| Part | Insulation Material | Voltage Rating | Number of Positions Loaded | Termination | Current Rating (Amps) | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Number of Rows [custom] | Shrouding | Connector Type | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Contact Type | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Insulation Color | Fastening Type | Style | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Contact Material | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Glass Filled Nylon Polyamide (PA) | 250 V | All | Solder | 3 A | 2 mm | 0.079 in | Right Angle Through Hole | 2 | Shrouded - 4 Wall | Header | 0.118 in | 3 mm | UL94 V-0 | Male Pin | Square | 85 °C | -25 °C | 0.079 " | 2 mm | Natural | Detent Lock | Board to Cable/Wire | 0.197 " | 5 mm | 2.9 mm | 0.114 in | Copper Alloy | Tin |
