3206 Series

Catalog

PIDG RING TONGUE TERMINAL 14-16AWG COPPER YELLOW/BLACK STRIPE 26.56MM TIN BOX

Part	Length - Overall [x]	Length - Overall [x]	Contact Finish	Thickness	Thickness	Contact Material	Terminal Type	Features	Mounting Type	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Color	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Material - Insulation	Termination	Insulation	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge [Max]	Wire Gauge [Min]	Height Stacking (Mating)	Height Stacking (Mating)	Terminal Style	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Tab Thickness	Tab Thickness
TE Connectivity Raychem Cable Protection 320627	26.57 mm	1.046 in	Tin	0.048 in	1.22 mm	Copper	Circular	Heavy Duty Serrated Termination	Free Hanging (In-Line)	0.15 "	3.81 mm	0.23 in	5.84 mm	Yellow Black Stripe	0.343 in	8.71 mm	8 Stud	Nylon Polyamide (PA)	Crimp	Insulated

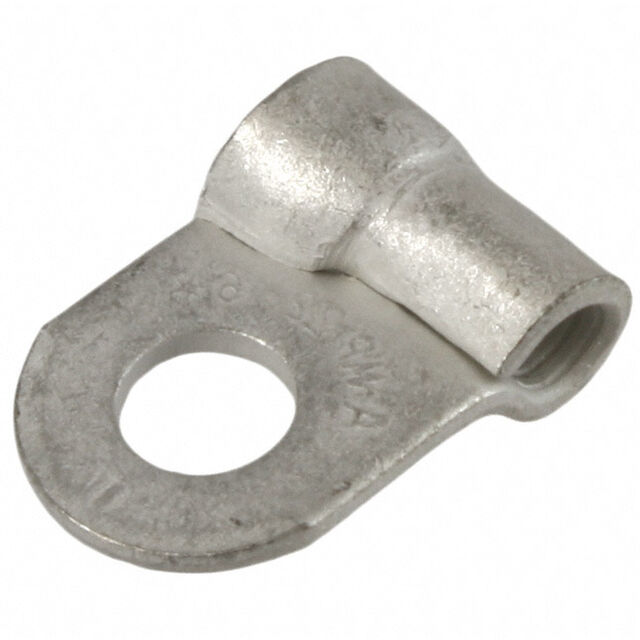

TE Connectivity Raychem Cable Protection 32065	13.08 mm	0.515 "	Tin	0.031 in	0.79 mm	Copper	Circular	Serrated Termination	Free Hanging (In-Line) Right Angle										Crimp Flag	Non-Insulated	6 Stud	7.92 mm	0.312 in	22 AWG	16 AWG

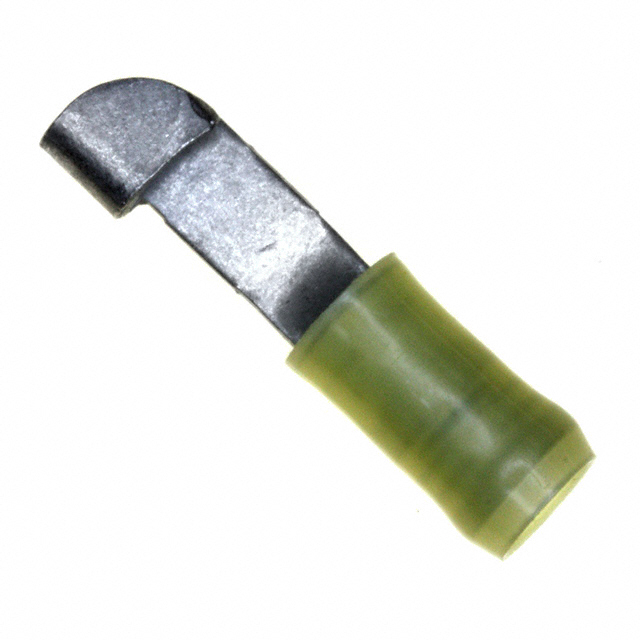

TE Connectivity Raychem Cable Protection 320620	31.34 mm	1.234 in	Tin			Copper				0.15 "	3.81 mm	0.23 in	5.84 mm	Yellow				Nylon Polyamide (PA)		Insulated				12 AWG	10 AWG	7.14 mm	0.281 in

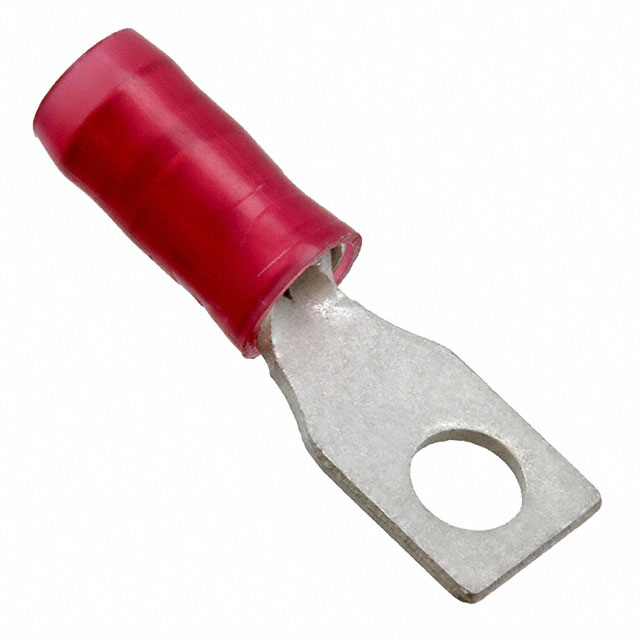

TE Connectivity Raychem Cable Protection 320629			Tin			Copper	Standard	Serrated Termination	Free Hanging (In-Line)					Red					Crimp	Insulated	6 Stud	6.48 mm	0.255 in	22 AWG	16 AWG			Single Stud Hole	0.145 in	3.68 mm	0.031 "	0.79 mm
