SMR7116C Series

Catalog

SW ROTARY DIP HEX COMP 0.03A 15V

Part	Length	Length	Mechanical Life	Electrical Life	Mounting Type	Circuit	Current Rating (Amps)	Contact Finish	Voltage Rating	Pitch	Pitch	Actuator Type	Washable	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Level	Number of Positions	Height Above Board [z]	Height Above Board [z]

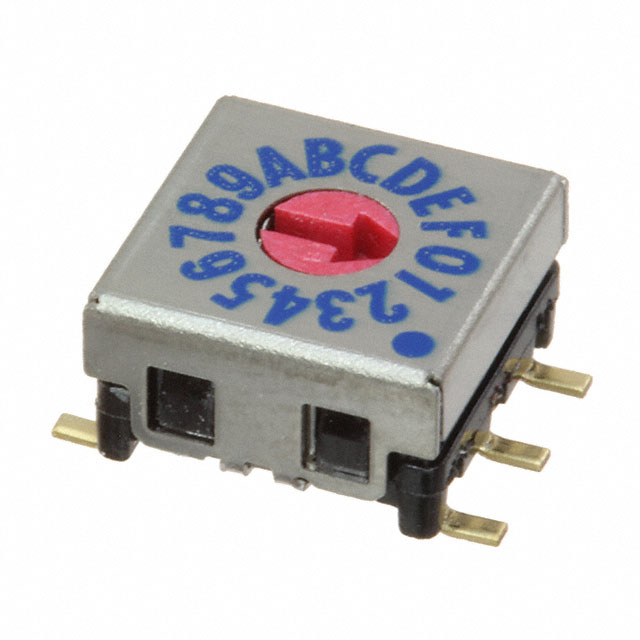

Nidec Components Corporation SMR7116C-1	0.295 in	7.5 mm	10000 Steps	10000 Cycles	Surface Mount	Hexadecimal Complement	30 mA	Gold	15 VDC	2.54 mm	0.1 "	Rotary for Tool		Gull Wing	85 °C	-25 °C	Flush Recessed	16	0.173 in	4.4 mm
Nidec Components Corporation SMR7116C-1E	0.295 in	7.5 mm	10000 Steps	10000 Cycles	Surface Mount	Hexadecimal Complement	30 mA	Gold	15 VDC	2.54 mm	0.1 "	Rotary for Tool		Gull Wing	85 °C	-25 °C	Flush Recessed	16	0.173 in	4.4 mm
