ST230 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

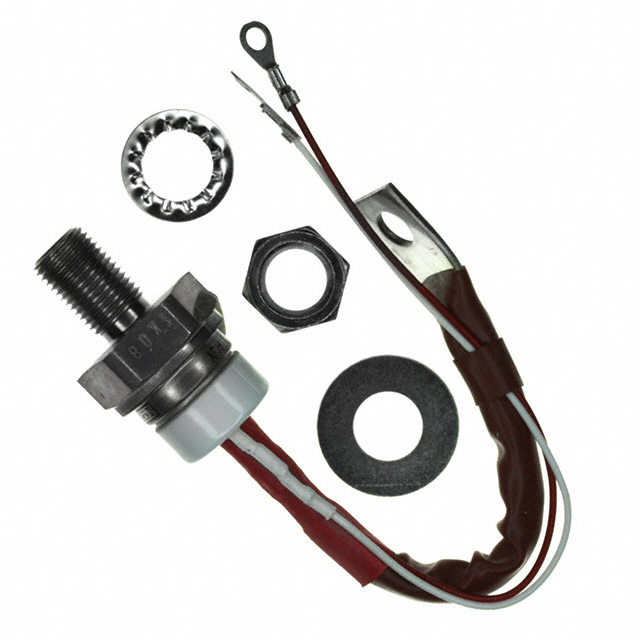

SCR 1.2KV 360A TO209AB

Part	Mounting Type	Supplier Device Package	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Off State (Max) [Max]	Package / Case	Voltage - On State (Vtm) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (RMS)) (Max)	Voltage - Off State	SCR Type	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Voltage - On State (Vtm) (Max)
Vishay General Semiconductor - Diodes Division VS-ST230S12P0V	Chassis Stud Mount	TO-209AB (TO-93)	150 mA	230 A	5700 A 5970 A	30 mA	Stud TO-209AB TO-93-4	1.55 V	125 °C	-40 °C	360 A	1.2 kV	Standard Recovery

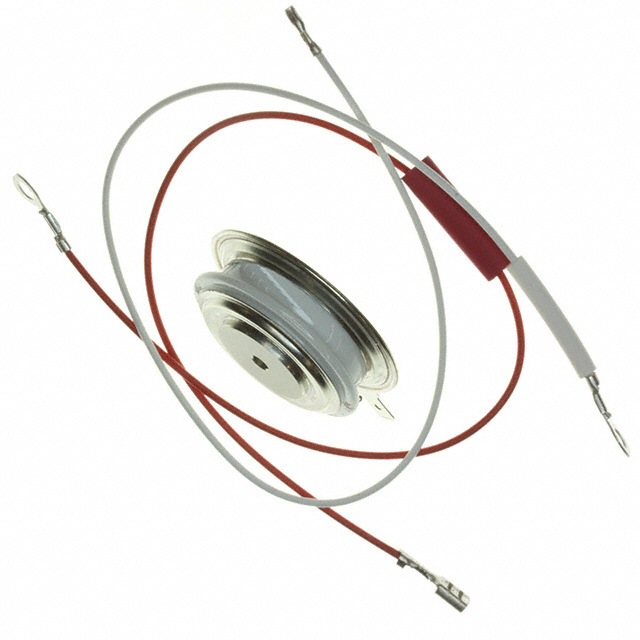

Vishay General Semiconductor - Diodes Division VS-ST230C12C2	Clamp On	A-PUK TO-200AB	150 mA	410 A		30 mA	A-PUK TO-200AB		125 °C	-40 °C		1.2 kV	Standard Recovery	5000 A	4800 A	1.69 V
Vishay General Semiconductor - Diodes Division VS-ST230C16C0	Clamp On	A-PUK TO-200AB	150 mA	410 A	5700 A 5970 A	30 mA	A-PUK TO-200AB		125 °C	-40 °C		1.6 kV	Standard Recovery			1.69 V
Vishay General Semiconductor - Diodes Division VS-ST230S16M1PBF	Chassis Stud Mount	TO-209AB (TO-93)	150 mA	230 A	5700 A 5970 A	30 mA	Stud TO-209AB TO-93-4	1.55 V	125 °C	-40 °C	360 A	1.6 kV	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST230C16C1L	Clamp On	A-PUK TO-200AB	150 mA	410 A		30 mA	A-PUK TO-200AB		125 °C	-40 °C		1.6 kV	Standard Recovery	5000 A	4800 A	1.69 V
Vishay General Semiconductor - Diodes Division VS-ST230C12C0L	Clamp On	A-PUK TO-200AB	150 mA	410 A		30 mA	A-PUK TO-200AB		125 °C	-40 °C		1.2 kV	Standard Recovery	5000 A	4800 A	1.69 V
Vishay General Semiconductor - Diodes Division VS-ST230S04P0VPBF	Chassis Stud Mount	TO-209AB (TO-93)	150 mA	230 A		30 mA	Stud TO-209AB TO-93-4	1.55 V	125 °C	-40 °C	360 A	400 V	Standard Recovery	5000 A	4800 A
Vishay General Semiconductor - Diodes Division VS-ST230S08P0VPBF	Chassis Stud Mount	TO-209AB (TO-93)	150 mA	230 A		30 mA	Stud TO-209AB TO-93-4	1.55 V	125 °C	-40 °C	360 A	800 V	Standard Recovery	5000 A	4800 A
Vishay General Semiconductor - Diodes Division VS-ST230S16P0	Chassis Stud Mount	TO-209AB (TO-93)	150 mA	230 A	5700 A 5970 A	30 mA	Stud TO-209AB TO-93-4	1.55 V	125 °C	-40 °C	360 A	1.6 kV	Standard Recovery
Vishay General Semiconductor - Diodes Division VS-ST230S16P0PBF	Chassis Stud Mount	TO-209AB (TO-93)	150 mA	230 A		30 mA	Stud TO-209AB TO-93-4	1.55 V	125 °C	-40 °C	360 A	1.6 kV	Standard Recovery	5000 A	4800 A
