TMUX121 Series

2-pF, 3.3-V, 2:1 (SPDT), 2-channel, switch with 1.8-V compatible logic

Catalog

2-pF, 3.3-V, 2:1 (SPDT), 2-channel, switch with 1.8-V compatible logic

Part	Number of Circuits	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	On-State Resistance (Max) [Max]	Mounting Type	Switch Circuit	Crosstalk	Channel-to-Channel Matching (ΔRon)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Multiplexer/Demultiplexer Circuit	Supplier Device Package	Current - Leakage (IS(off)) (Max)	-3db Bandwidth

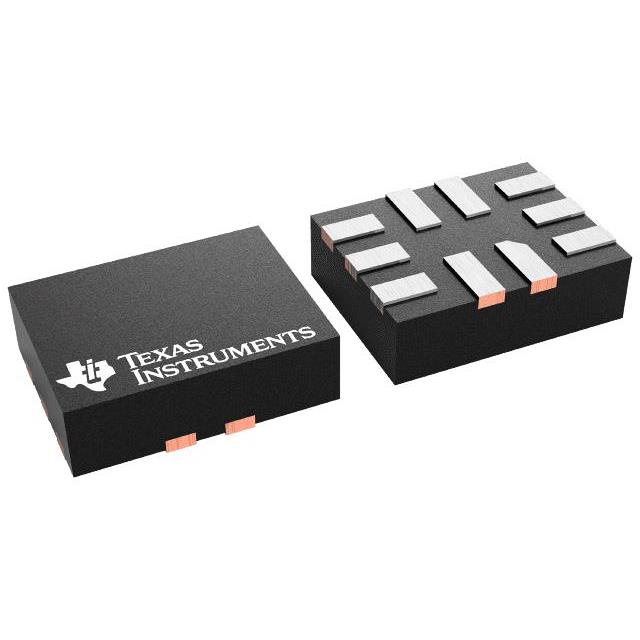

Texas Instruments TMUX121NKGR	2	3.6 V	3 V	8 Ohm	Surface Mount	SPDT - NO	-64 dB	500 mOhm	-40 °C	125 °C	10-UFQFN	2:1	10-UQFN (1.4x1.8)	2 µA	3 GHz

Catalog

2-pF, 3.3-V, 2:1 (SPDT), 2-channel, switch with 1.8-V compatible logic

Key Features

• Compatible with high-speed I 3C signalsHigh performance switch characteristics:Bandwidth (–3 dB): 3.0 GHzR ON (typical): 3 ΩC ON (typical): 1.7 pFT PD (typical): 60 psT SWEK (typical): 2 psLow current consumption: 12 µA (typical)Special features:I POFF protection prevents current leakage in Powered-Down state1.8 V and 3.3 V compatible control inputs (SEL, EN)3.3 V supply voltageIndustrial temperature range: –40 to 125°CCompact 10-pin 1.4 mm × 1.8 mm, UQFN packageCompatible with high-speed I 3C signalsHigh performance switch characteristics:Bandwidth (–3 dB): 3.0 GHzR ON (typical): 3 ΩC ON (typical): 1.7 pFT PD (typical): 60 psT SWEK (typical): 2 psLow current consumption: 12 µA (typical)Special features:I POFF protection prevents current leakage in Powered-Down state1.8 V and 3.3 V compatible control inputs (SEL, EN)3.3 V supply voltageIndustrial temperature range: –40 to 125°CCompact 10-pin 1.4 mm × 1.8 mm, UQFN package

Description

The TMUX121 is a high performance bidirectional 2-channel, 2:1 (SPDT) switch that supports both differential and single ended signals. The TMUX121 is an analog passive switch which features power-off protection forcing all I/O pins to be in high-impedance mode when power is not present on the V DD pin. The select and enable pins of the TMUX121 compatible with 1.8 V and 3.3 V control voltage, allowing them to be directly interfaced with the General purpose I/O (GPIO) from low voltage processors. This, along with the low on-resistance and low on capacitance of the device, make the TMUX121 an excellent choice for supporting switching a wide range of analog signals and digital communication protocol standards, including high-speed standards such as I 3C. The TMUX121 comes in a small 10-pin UQFN package with only 1.8 mm × 1.4 mm in size, which makes it useful when PCB area is limited. The TMUX121 is a high performance bidirectional 2-channel, 2:1 (SPDT) switch that supports both differential and single ended signals. The TMUX121 is an analog passive switch which features power-off protection forcing all I/O pins to be in high-impedance mode when power is not present on the V DD pin. The select and enable pins of the TMUX121 compatible with 1.8 V and 3.3 V control voltage, allowing them to be directly interfaced with the General purpose I/O (GPIO) from low voltage processors. This, along with the low on-resistance and low on capacitance of the device, make the TMUX121 an excellent choice for supporting switching a wide range of analog signals and digital communication protocol standards, including high-speed standards such as I 3C. The TMUX121 comes in a small 10-pin UQFN package with only 1.8 mm × 1.4 mm in size, which makes it useful when PCB area is limited.
