950507 Series

Catalog

CONN RCPT 7POS 0.079 GOLD PCB

Part	Insulation Material	Contact Shape	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Connector Type	Insulation Height	Insulation Height	Contact Type	Contact Length - Post	Contact Length - Post	Number of Positions	Fastening Type	Number of Positions Loaded	Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Number of Rows	Contact Finish Thickness - Mating	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Material Flammability Rating

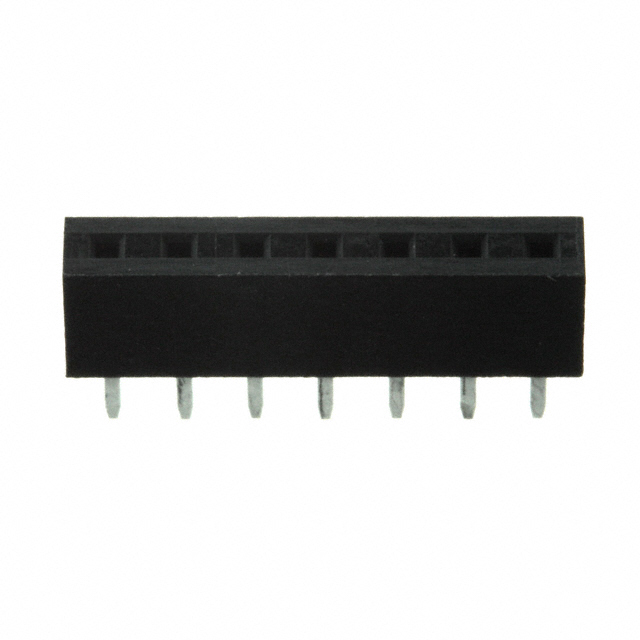

3M Electronic Specialty 950507-6102-AR	Thermoplastic	Square	Copper Alloy	40 Áin	1.02 Ám	Black	Receptacle	4.3 mm	0.169 "	Female Socket	2.5 mm	0.098 in	7	Push-Pull	All	Solder	Through Hole	-40 C	105 ░C	Tin	1	Flash	1000 VDC	0.079 "	2 mm	Gold	UL94 V-0
3M Electronic Specialty 950507-5002-AR	Thermoplastic	Square	Copper Alloy	40 Áin	1.02 Ám	Black	Receptacle			Female Socket	3 mm	0.118 in	7	Push-Pull	All	Solder	Right Angle Through Hole	-40 C	105 ░C	Tin	1	Flash	1000 VDC	0.079 "	2 mm	Gold	UL94 V-0
