PC804 Series

Catalog

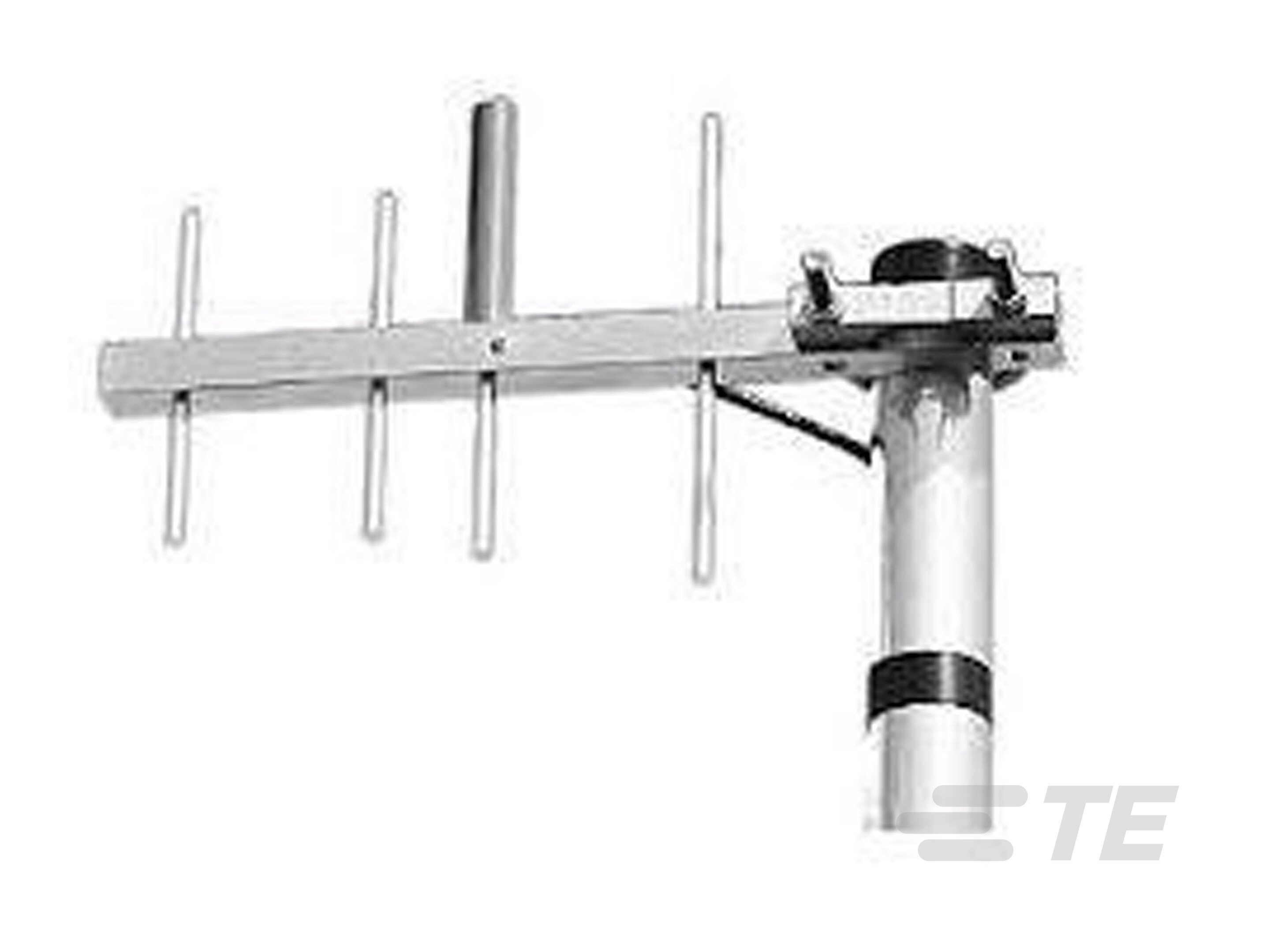

YAGI,POLMNT,4,806-902MHZ 15,6DBD,NF

Part	RF Family/Standard	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Applications	Gain	Features	Power - Max [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Antenna Type	Number of Bands	Mounting Type	Termination	Frequency (Center/Band)	Frequency Range [Min]	Frequency Range [Max]
TE Connectivity AMP Connectors PC804N	Cellular	1 GHz	UHF	300 MHz	GSM	6 dBi	Cable - 483mm	200 W	13 in	330.2 mm	Yagi 4-Element	1	Bracket Mount	N Type Female	854 MHz	806 MHz	902 MHz
TE Connectivity AMP Connectors PC804SMM96	Cellular	1 GHz	UHF	300 MHz	GSM	6 dBi		200 W	13 in	330.2 mm	Yagi 4-Element	1	Bracket Mount		854 MHz	806 MHz	902 MHz
TE Connectivity AMP Connectors PC804N	Cellular	1 GHz	UHF	300 MHz	GSM	6 dBi	Cable - 483mm	200 W	13 in	330.2 mm	Yagi 4-Element	1	Bracket Mount	N Type Female	854 MHz	806 MHz	902 MHz
TE Connectivity AMP Connectors PC804SMM96	Cellular	1 GHz	UHF	300 MHz	GSM	6 dBi		200 W	13 in	330.2 mm	Yagi 4-Element	1	Bracket Mount		854 MHz	806 MHz	902 MHz
