98400 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

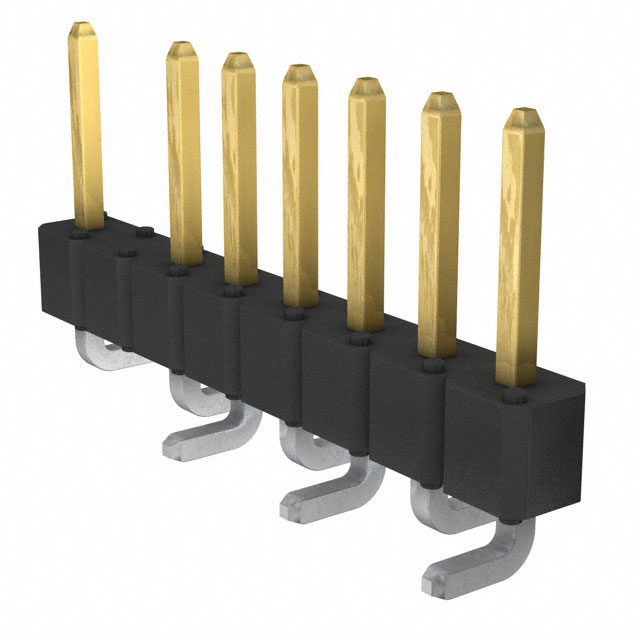

CONN HEADER SMD 8POS 2.54MM
| Part | Contact Finish Thickness - Post [custom] | Contact Finish Thickness - Post [custom] | Contact Shape | Contact Length - Mating | Contact Length - Mating | Fastening Type | Insulation Material | Features | Material Flammability Rating | Number of Positions | Number of Rows | Number of Positions Loaded | Mounting Type | Shrouding | Termination | Insulation Height | Insulation Height | Connector Type | Contact Type | Contact Finish - Mating | Contact Material | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 78.7 µin | 2 µm | Square | 5.9 mm | 0.232 in | Push-Pull | Thermoplastic | Pick and Place | UL94 V-0 | 8 | 1 | 7 | Surface Mount | Unshrouded | Solder | 0.1 in | 2.54 mm | Header Breakaway | Male Pin | Gold GXT™ | Phosphor Bronze | 0.1 " | 2.54 mm | Black | Tin | 0.76 Ám | 30 Áin |
