MS3102E28 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT MALE 9P SILV SLDR CUP

Part	Primary Material	Contact Material	Color	Connector Type	Number of Positions	Contact Finish - Mating	Termination	Shell Material	Qualification	Fastening Type	Orientation	Ingress Protection	Shell Size - Insert	Mounting Feature	Applications	Shielding	Cable Opening	Mounting Type	Shell Finish	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Current Rating Options	Shell Size - Insert Length	Shell Size - Insert Width	Grade	Voltage Rating (DC)	Voltage Rating (AC)
Amphenol Aerospace Operations MS3102E28-AYPY	Metal	Copper Alloy	Olive Drab	Male Pins Receptacle	9	Silver	Solder Cup	Aluminum Alloy	MIL-5015	Threaded	Y	Environment Resistant	28-AY	Flange	Marine Military	Unshielded	1.625 in	Panel Mount	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene
Amphenol Aerospace Operations MS3102E28-20P	Metal	Copper Alloy	Olive Drab	Male Pins Receptacle	14	Silver	Solder Cup	Aluminum Alloy	MIL-DTL-5015	Threaded	N (Normal)	Environment Resistant		Flange	Marine Military	Unshielded		Panel Mount	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene	13A 23A	28 mm	20 mm	Military
Amphenol Aerospace Operations MS3102E28-8P
Amphenol Aerospace Operations MS3102E28-22SY	Metal	Copper Alloy	Olive Drab	Female Sockets Receptacle	6	Silver	Solder Cup	Aluminum Alloy	MIL-5015	Threaded	Y	Environment Resistant		Flange	Marine Military	Unshielded	1.625 in	Panel Mount	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene		28 mm	22 mm
Amphenol Aerospace Operations MS3102E28-20S	Metal	Copper Alloy	Olive Drab	Female Sockets Receptacle	14	Silver	Solder Cup	Aluminum Alloy	MIL-DTL-5015	Threaded	N (Normal)	Environment Resistant		Flange	Marine Military	Unshielded		Panel Mount	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene	13A 23A	28 mm	20 mm	Military
Amphenol Aerospace Operations MS3102E28-7P

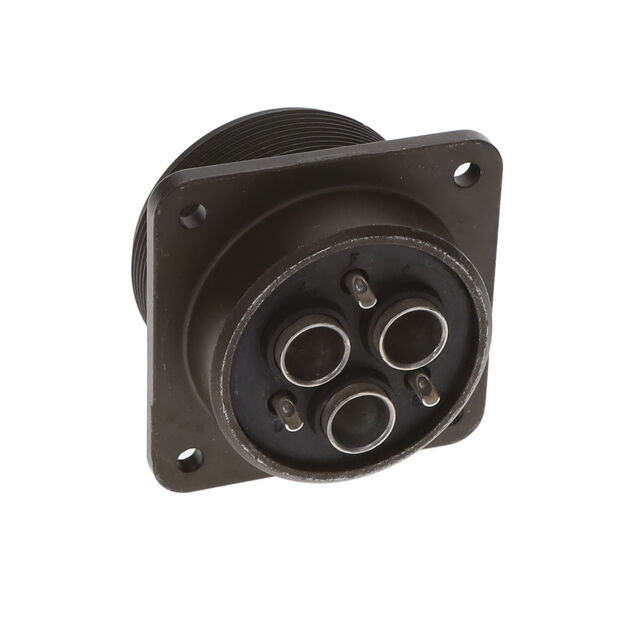

Amphenol Aerospace Operations MS3102E28-22P	Metal	Copper Alloy	Olive Drab	Male Pins Receptacle	6	Silver	Solder Cup	Aluminum Alloy	MIL-DTL-5015	Threaded	N (Normal)	Environment Resistant		Flange	Marine Military	Unshielded		Panel Mount	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene	13A 80A	28 mm	22 mm	Military	1250 VDC	900 VAC
Amphenol Aerospace Operations MS3102E28-10P	Metal	Copper Alloy	Olive Drab	Male Pins Receptacle	7	Silver	Solder Cup	Aluminum Alloy	MIL-5015	Threaded	N (Normal)	Environment Resistant		Flange	Marine Military	Unshielded	1.625 in	Panel Mount	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene		28 mm	10 mm
Amphenol Aerospace Operations MS3102E28-11P	Metal	Copper Alloy	Olive Drab	Male Pins Receptacle	22	Silver	Solder Cup	Aluminum Alloy	MIL-DTL-5015	Threaded	N (Normal)	Environment Resistant		Flange	Marine Military	Unshielded	1.625 in	Panel Mount	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene		28 mm	11 mm
Amphenol Aerospace Operations MS3102E28-16S	Metal	Copper Alloy	Olive Drab	Female Sockets Receptacle	20	Silver	Solder Cup	Aluminum Alloy	MIL-5015	Threaded	N (Normal)	Environment Resistant		Flange	Marine Military	Unshielded	1.625 in	Panel Mount	Cadmium Olive Drab Chromate	125 °C	-55 °C	Neoprene		28 mm	16 mm
