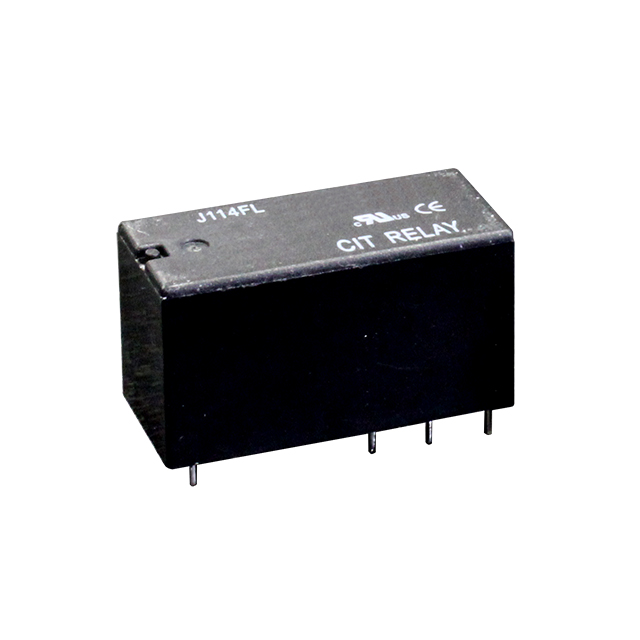

J114FL2 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE DPDT 8A 5V
| Part | Coil Resistance | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Release Time | Mounting Type | Contact Form | Must Operate Voltage | Coil Current | Termination Style | Relay Type | Operate Time | Contact Rating (Current) | Coil Voltage | Switching Voltage [Max] | Must Release Voltage | Seal Rating | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 62 Ohms | Silver Tin Oxide (AgSnO) | -55 C | 105 ░C | Non Latching | 5 ms | Through Hole | DPDT (2 Form C) | 3.75 VDC | 80.6 mA | PC Pin | General Purpose | 10 ms | 8 A | 5 VDC | 110 VDC 380 VAC | 0.5 VDC | Sealed - Fully | 880 W 3040 VA |
CIT Relay and Switch | 90 Ohms | Silver Tin Oxide (AgSnO) | -55 C | 105 ░C | Non Latching | 5 ms | Through Hole | DPDT (2 Form C) | 4.5 VDC | 66.7 mA | PC Pin | General Purpose | 10 ms | 8 A | 110 VDC 380 VAC | 0.6 VDC | Sealed - Fully | 880 W 3040 VA | |
CIT Relay and Switch | 360 Ohms | Silver Tin Oxide (AgSnO) | -55 C | 105 ░C | Non Latching | 5 ms | Through Hole | DPDT (2 Form C) | 9 VDC | 33.3 mA | PC Pin | General Purpose | 10 ms | 8 A | 12 VDC | 110 VDC 380 VAC | 1.2 VDC | Sealed - Fully | 880 W 3040 VA |
CIT Relay and Switch | 202 Ohms | Silver Tin Oxide (AgSnO) | -55 C | 105 ░C | Non Latching | 5 ms | Through Hole | DPDT (2 Form C) | 6.75 VDC | 44.6 mA | PC Pin | General Purpose | 10 ms | 8 A | 9 VDC | 110 VDC 380 VAC | 0.9 VDC | Sealed - Fully | 880 W 3040 VA |
CIT Relay and Switch | 5.76 kOhms | Silver Tin Oxide (AgSnO) | -55 C | 105 ░C | Non Latching | 5 ms | Through Hole | DPDT (2 Form C) | 36 VDC | 8.3 mA | PC Pin | General Purpose | 10 ms | 8 A | 48 VDC | 110 VDC 380 VAC | 3.6 VDC | Sealed - Fully | 880 W 3040 VA |
CIT Relay and Switch | 1440 Ohms | Silver Tin Oxide (AgSnO) | -55 C | 105 ░C | Non Latching | 5 ms | Through Hole | DPDT (2 Form C) | 18 VDC | 16.7 mA | PC Pin | General Purpose | 10 ms | 8 A | 24 VDC | 110 VDC 380 VAC | 2.4 VDC | Sealed - Fully | 880 W 3040 VA |
CIT Relay and Switch | 360 Ohms | Silver Tin Oxide (AgSnO) | -55 C | 105 ░C | Non Latching | 5 ms | Through Hole | DPST-NO (2 Form A) | 9 VDC | 33.3 mA | PC Pin | General Purpose | 10 ms | 8 A | 12 VDC | 110 VDC 380 VAC | 1.2 VDC | Sealed - Fully | 880 W 3040 VA |
CIT Relay and Switch | 1440 Ohms | Silver Tin Oxide (AgSnO) | -55 C | 105 ░C | Non Latching | 5 ms | Through Hole | DPST-NO (2 Form A) | 18 VDC | 16.7 mA | PC Pin | General Purpose | 10 ms | 8 A | 24 VDC | 110 VDC 380 VAC | 2.4 VDC | Sealed - Fully | 880 W 3040 VA |
CIT Relay and Switch | 202 Ohms | Silver Tin Oxide (AgSnO) | -55 C | 105 ░C | Non Latching | 5 ms | Through Hole | DPST-NO (2 Form A) | 6.75 VDC | 44.6 mA | PC Pin | General Purpose | 10 ms | 8 A | 9 VDC | 110 VDC 380 VAC | 0.9 VDC | Sealed - Fully | 880 W 3040 VA |
CIT Relay and Switch | 5.76 kOhms | Silver Tin Oxide (AgSnO) | -55 C | 105 ░C | Non Latching | 5 ms | Through Hole | DPST-NO (2 Form A) | 36 VDC | 8.3 mA | PC Pin | General Purpose | 10 ms | 8 A | 48 VDC | 110 VDC 380 VAC | 3.6 VDC | Sealed - Fully | 880 W 3040 VA |
