MS3126F12 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K

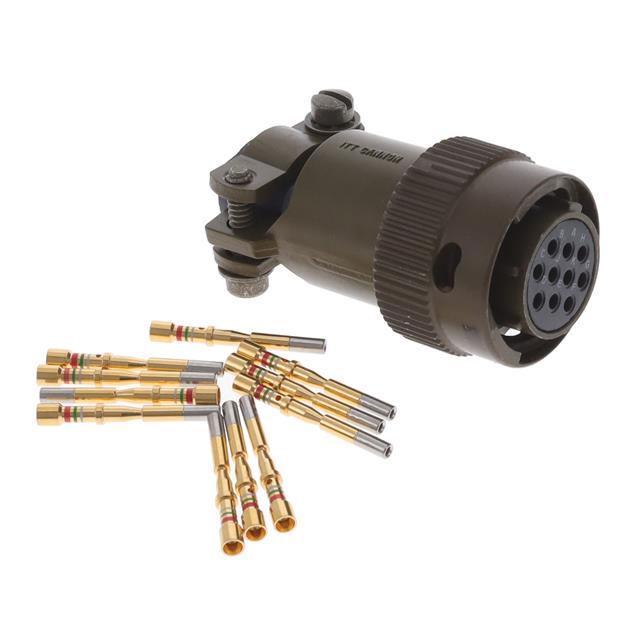

CONN PLUG 10POS STRAIGHT W/SCKT
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Voltage Rating | Voltage Rating | Contact Finish - Mating | Termination | Shell Finish | Features | Shell Material | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Ingress Protection | Number of Positions | Current Rating (Amps) | Connector Type | Shell Size - Insert | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | 50 µin | 1.27 µm | Metal | 600 VAC | 850 VDC | Gold | Crimp | Olive Drab Cadmium | Strain Relief | Aluminum Alloy | N (Normal) | -55 C | 125 °C | Bayonet Lock | Environment Resistant | 10 | 7.5 A | Plug Female Sockets | 12-10 | Free Hanging (In-Line) | Olive Drab |
