UHV Series

Catalog

SPECIALTY CERAMIC CAPACITORS D:34MM 30KVDC 700PF Z5T 10%

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Temperature Coefficient	Tolerance	Voltage - Rated	Voltage - Rated	Capacitance	Package / Case	Applications	Features	Size / Dimension [x]	Size / Dimension [diameter]

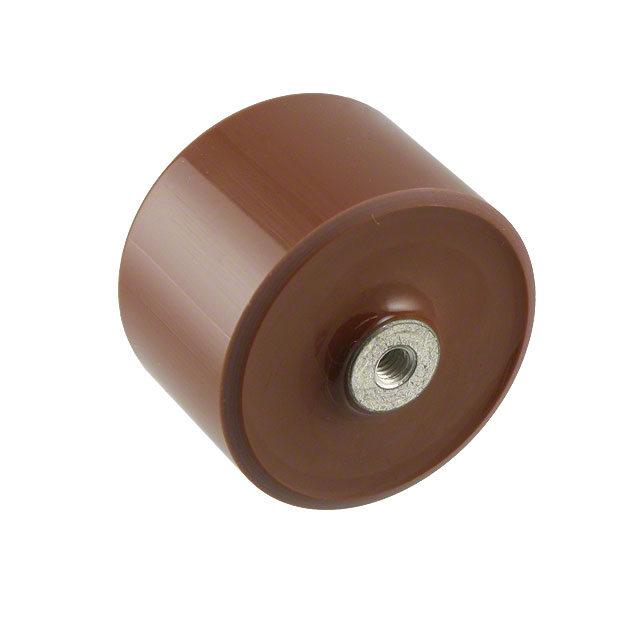

TDK Corporation UHV-233A	1.024 in	26 mm	34 mm	1.339 "	85 °C	-30 ░C	Requires Holder	Z5T	10 %	30000 V	30 kV	700 pF	Disk Metal Fitting - Threaded	General Purpose	High Voltage Low Dissipation Factor

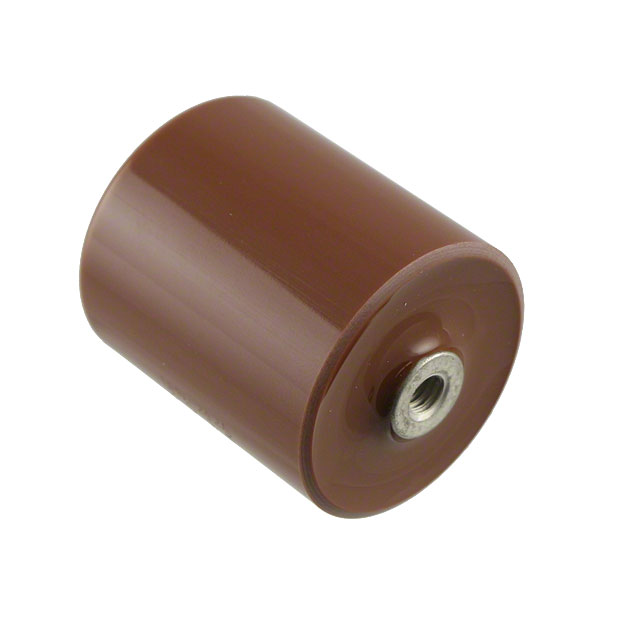

TDK Corporation UHV-242A	32 mm			25 mm	85 °C	-30 ░C	Requires Holder	Z5T	10 %			200 pF	Disk Metal Fitting - Threaded	General Purpose	High Voltage Low Dissipation Factor	1.26 in	0.984 "

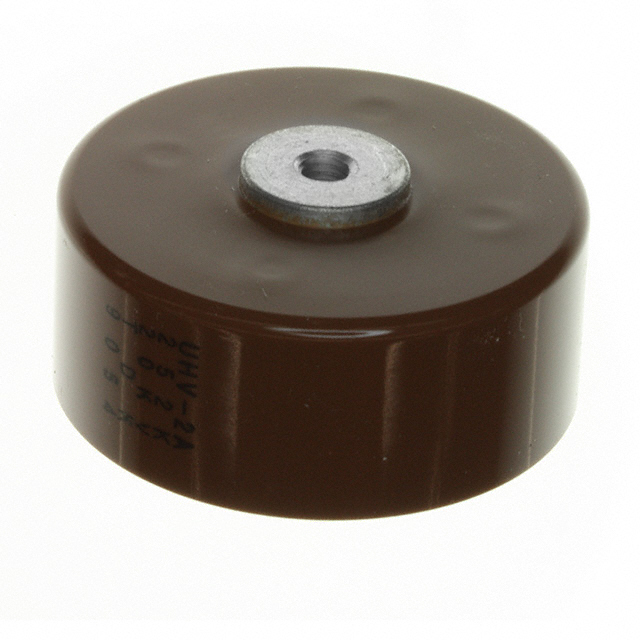

TDK Corporation UHV-2A	23 mm			48 mm	85 °C	-30 ░C	Requires Holder	Z5T	10 %	20 kV	20 kV	0.0025 µF	Disk Metal Fitting - Threaded	General Purpose	High Voltage Low Dissipation Factor	0.906 in	1.89 in

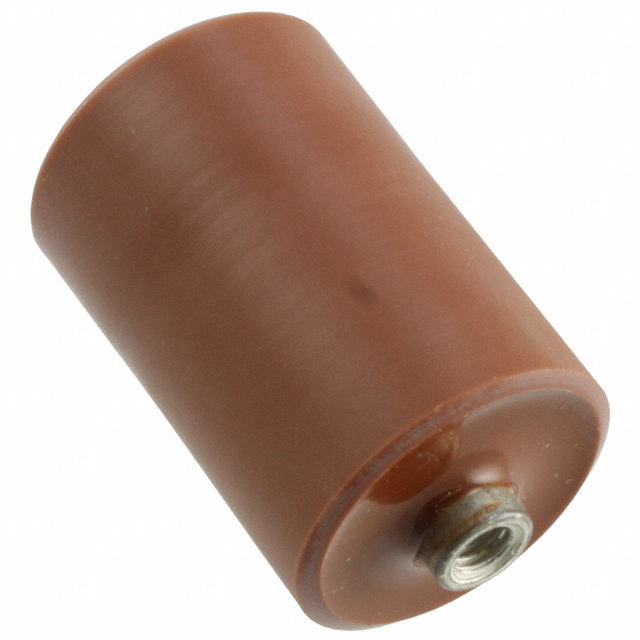

TDK Corporation UHV-251A	35 mm			20 mm	85 °C	-30 ░C	Requires Holder	Z5T	10 %	50000 V	50 kV	100 pF	Disk Metal Fitting - Threaded	General Purpose	High Voltage Low Dissipation Factor	1.378 in	0.787 "
