NTF Series
Manufacturer: Chemi-Con
Beta
⌘K
MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT 25VDC 1.5UF TOL 20% 3.2X1.6X1.8MM AEC-Q200
| Part | Capacitance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Temperature Coefficient | Tolerance | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Thickness (Max) [Max] | Thickness (Max) [Max] | Voltage - Rated | Package / Case | Applications | Package / Case | Ratings | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

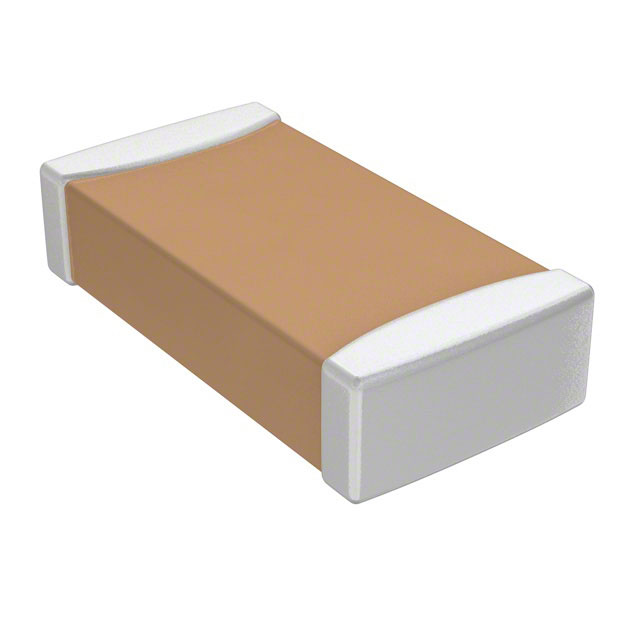

 Chemi-Con | 1500 nF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | X7R | 10 % | MLCC Surface Mount | -55 C | 125 °C | 1.8 mm | 0.071 in | 25 VDC | 1206 (3216 Metric) | SMPS Filtering | |||
 Chemi-Con | 0.22 µF | 0.098 in | 0.126 " | 3.2 mm | 2.5 mm | X7R | 10 % | MLCC Surface Mount | -55 C | 125 °C | 2.6 mm | 0.102 " | 250 V | 1210 | SMPS Filtering | 3225 Metric | ||
Chemi-Con | 1 µF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | X7R | 10 % | MLCC Surface Mount | -55 C | 125 °C | 1.8 mm | 0.071 in | 25 VDC | 1206 (3216 Metric) | SMPS Filtering | |||
Chemi-Con | 3.3 µF | 0.098 in | 0.126 " | 3.2 mm | 2.5 mm | X7R | 20 % | MLCC Surface Mount | -55 C | 125 °C | 2.6 mm | 0.102 " | 25 VDC | 1210 | Automotive | 3225 Metric | AEC-Q200 | |
 Chemi-Con | 15 µF | 0.197 " | 0.224 " | 5.7 mm | X7R | 20 % | MLCC Surface Mount | -55 C | 125 °C | 2.8 mm | 0.11 in | 35 V | 2220 | Automotive General Purpose | 5750 Metric | AEC-Q200 | 5 mm | |
Chemi-Con | 10 µF | 0.197 " | 0.224 " | 5.7 mm | X7R | 20 % | MLCC Surface Mount | -55 C | 125 °C | 2.8 mm | 0.11 in | 50 VDC | 2220 | Automotive | 5750 Metric | AEC-Q200 | 5 mm | |
 Chemi-Con | 0.033 çF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | X7R | 20 % | MLCC Surface Mount | -55 C | 125 °C | 1.8 mm | 0.071 in | 250 V | 1206 (3216 Metric) | Automotive | AEC-Q200 | ||

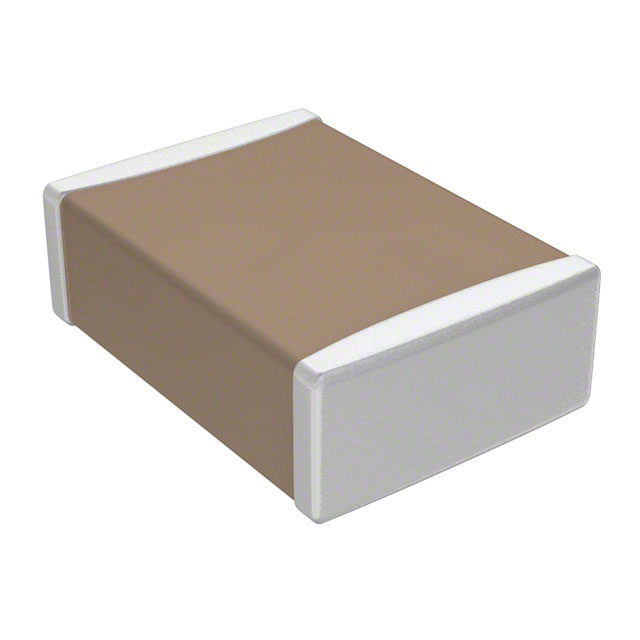

 Chemi-Con | 1500 nF | 0.126 in | 0.177 in | 4.5 mm | 3.2 mm | X7R | 10 % | MLCC Surface Mount | -55 C | 125 °C | 2.8 mm | 0.11 in | 100 V | 1812 (4532 Metric) | SMPS Filtering | |||
Chemi-Con | 3.3 µF | 0.098 in | 0.126 " | 3.2 mm | 2.5 mm | X7R | 10 % | MLCC Surface Mount | -55 C | 125 °C | 2.6 mm | 0.102 " | 100 V | 1210 | SMPS Filtering | 3225 Metric | ||
Chemi-Con | 1500 nF | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | X7R | 10 % | MLCC Surface Mount | -55 C | 125 °C | 1.8 mm | 0.071 in | 35 V | 1206 (3216 Metric) | SMPS Filtering |
