YB25WC Series

Catalog

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Actuator Marking	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Ingress Protection	Circuit	Voltage Rating - AC	Voltage Rating - DC	Mounting Type	Actuator Type	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Switch Function	Type	Current Rating (Amps)	Termination Style
NKK Switches YB25WCKG01-1CF24-JF	1000000 Cycles	100000 Cycles	No Marking	Clear	16 mm	Green/Red LED	IP65 - Dust Tight Water Resistant	DPDT	28 V	28 V	Panel Mount Front	Button Round	24 V	50 °C	-25 °C	Voltage Reduction Lighting	On-Mom	Illuminated Standard	0.4 VA	Solder Quick Connect - 0.110" (2.8mm)

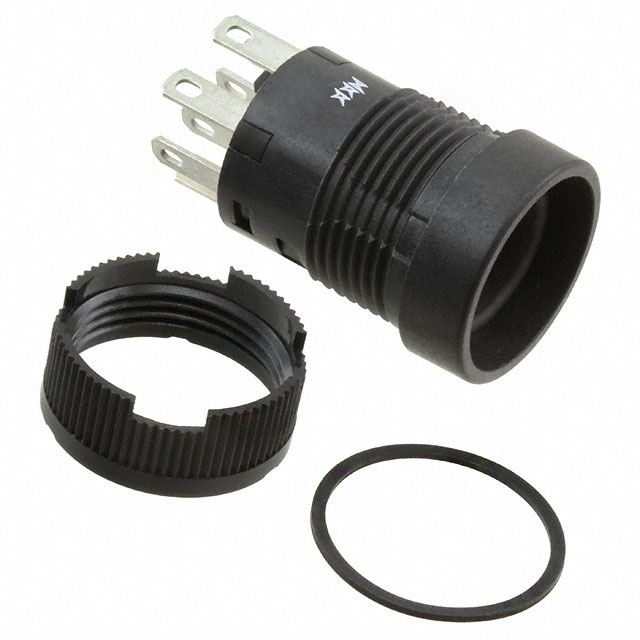

NKK Switches YB25WCKW01	1000000 Cycles	100000 Cycles	No Marking		16 mm		IP65 - Dust Tight Water Resistant	DPDT	125 V	30 V	Panel Mount Front	Plunger for Cap		70 °C	-25 °C	Voltage Reduction Lighting	On-Mom	Standard	3 A	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches YB25WCKG01-5F12-JF	1000000 Cycles	100000 Cycles	No Marking	Clear	16 mm	Green LED	IP65 - Dust Tight Water Resistant	DPDT	28 V	28 V	Panel Mount Front	Button Round	12 VDC	50 °C	-25 °C	Voltage Reduction Lighting	On-Mom	Illuminated Standard	0.4 VA	Solder Quick Connect - 0.110" (2.8mm)

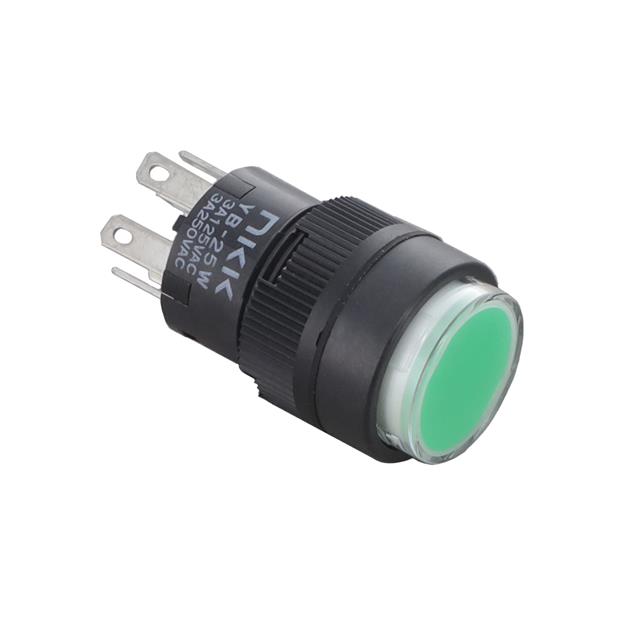

NKK Switches YB25WCKW01-5F05-JF	1000000 Cycles	100000 Cycles	No Marking	Clear	16 mm	Green LED	IP65 - Dust Tight Water Resistant	DPDT	125 V	30 V	Panel Mount Front	Button Round	5 VDC	50 °C	-25 °C	Voltage Reduction Lighting	On-Mom	Illuminated Standard	3 A	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches YB25WCKW01-5C24-JC	1000000 Cycles	100000 Cycles		Clear	16 mm	LED Red	IP65 - Dust Tight Water Resistant	DPDT	125 V	30 V	Panel Mount Front	Button Round	24 V	50 °C	-25 °C		On-Mom	Illuminated Standard	3 A	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches YB25WCKW01-6G-JB	1000000 Cycles	100000 Cycles	No Marking	Clear	16 mm	Blue LED	IP65 - Dust Tight Water Resistant	DPDT	125 V	30 V	Panel Mount Front	Button Round	3.6 VDC	50 °C	-25 °C	Voltage Reduction Lighting	On-Mom	Illuminated Standard	3 A	Solder Quick Connect - 0.110" (2.8mm)

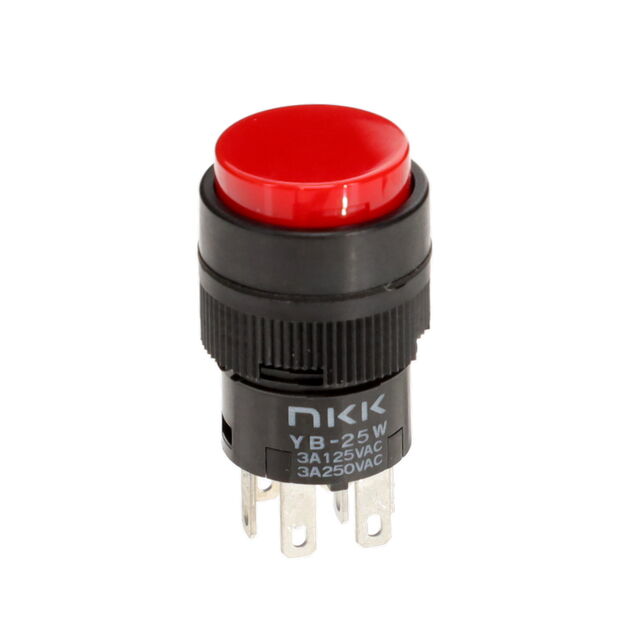

NKK Switches YB25WCKW01-CB	1000000 Cycles	100000 Cycles	No Marking	Red	16 mm		IP65 - Dust Tight Water Resistant	DPDT	125 V	30 V	Panel Mount Front	Button Round		70 °C	-25 °C	Voltage Reduction Lighting	On-Mom	Standard	3 A	Solder Quick Connect - 0.110" (2.8mm)

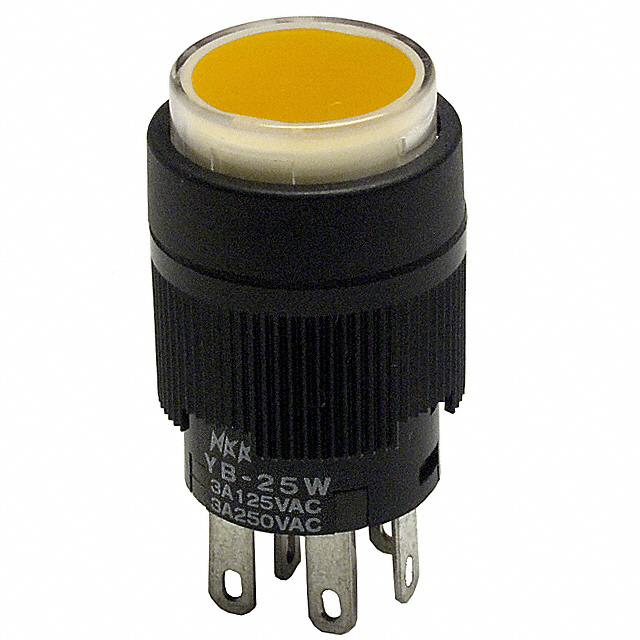

NKK Switches YB25WCKW01-5D-JD	1000000 Cycles	100000 Cycles	No Marking	Clear	16 mm	Amber LED	IP65 - Dust Tight Water Resistant	DPDT	125 V	30 V	Panel Mount Front	Button Round	2 VDC	50 °C	-25 °C	Voltage Reduction Lighting	On-Mom	Illuminated Standard	3 A	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches YB25WCKG01-CB	1000000 Cycles	100000 Cycles	No Marking	Red	16 mm		IP65 - Dust Tight Water Resistant	DPDT	28 V	28 V	Panel Mount Front	Button Round		70 °C	-25 °C	Voltage Reduction Lighting	On-Mom	Standard	0.4 VA	Solder Quick Connect - 0.110" (2.8mm)
NKK Switches YB25WCKW01-5F-JF	1000000 Cycles	100000 Cycles	No Marking	Clear	16 mm	Green LED	IP65 - Dust Tight Water Resistant	DPDT	125 V	30 V	Panel Mount Front	Button Round	2.2 VDC	50 °C	-25 °C	Voltage Reduction Lighting	On-Mom	Illuminated Standard	3 A	Solder Quick Connect - 0.110" (2.8mm)
