INL-5 Series

Catalog

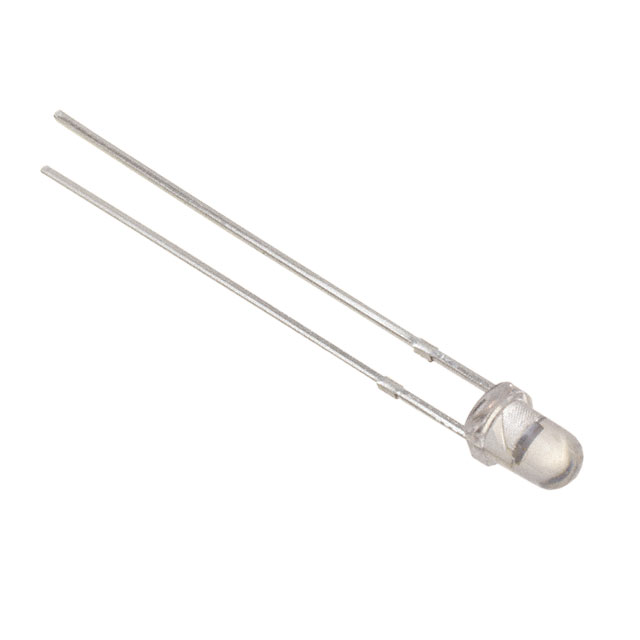

THROUGH HOLE / STANDARD 5MM T1 3

Part	Viewing Angle	Radiant Intensity (Ie) Min @ If	Package / Case	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max) [Max]	Type	Wavelength	Orientation	Mounting Type	Current - Test	Color	Height (Max) [z]	Lens Size	Lens Size	Wavelength - Dominant	Millicandela Rating	Lens Transparency	Lens Style	Configuration	Supplier Device Package	Lens Color	Wavelength - Peak	Radiant Intensity (Ie) Min @ If [Min]
Inolux Corporation INL-5ABCMIR30	30 °	6.5 mW/sr	Radial	1.3 V	80 °C	-40 C	100 mA	Infrared (IR)	880 nm	Top View	Through Hole
Inolux Corporation INL-5AA30	30 °		Radial	2 V							Through Hole	20 mA	Amber	8.65 mm	5 mm	T-1 3/4	605 nm	780 mcd	Clear	Round with Domed Top	Standard	5 mm	Colorless	610 nm
Inolux Corporation INL-5AHIR15	15 °		Radial		80 °C	-40 C	100 mA	Infrared (IR)	940 nm	Top View	Through Hole														7.8 mW/sr
Inolux Corporation INL-5AW30	30 °		Radial	3.3 V							Through Hole	20 mA	White	8.65 mm	5 mm	T-1 3/4		8500 mcd	Clear	Round with Domed Top	Standard	5 mm	Colorless
