ELSH-F81 Series

Catalog

LED SHUEN WARM WHITE 3500K 2SMD

Part	Thermal Resistance of Package	Flux @ 85°C, Current - Test	CRI (Color Rendering Index)	Viewing Angle	CCT (K)	CCT (K) [Min]	CCT (K) [Max]	Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Current - Max [Max]	Color	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max)	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Temperature - Test	Wavelength [Min]	Wavelength [Max]	Wavelength	Supplier Device Package
Everlight Electronics Co Ltd ELSH-F81M1-0CPGS-C3500	10 °C/W	70 lm	75	120 °	3500 K	3220 K	3710 K	350 mA	90 lm	80 lm	Surface Mount	0.12 in	0.177 in	3.05 mm	4.5 mm	1812 (4532 Metric)	400 mA	Warm White	67 lm/W	0.085 in	2.15 mm	3.4 V

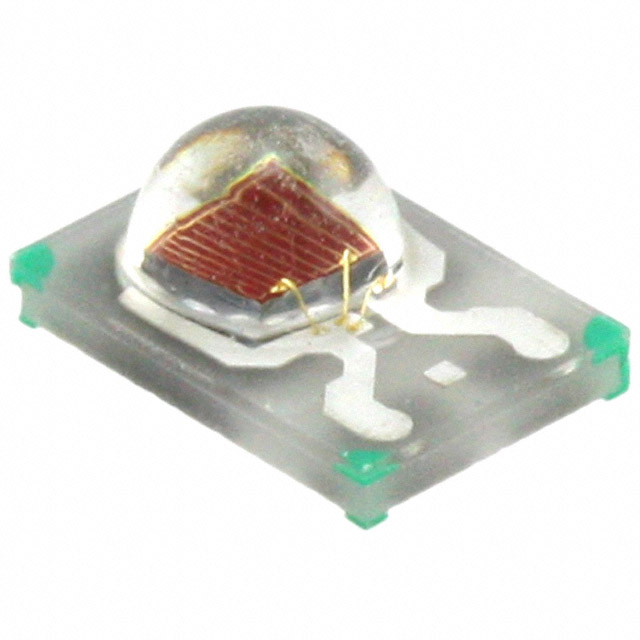

Everlight Electronics Co Ltd ELSH-F81R3-0LPNM-BR4R6	8 °C/W			120 °							Surface Mount	0.177 "	0.12 inches	4.5 mm	3.05 mm	1218 (3246 Metric)	750 mA	Red	46 lm/W	0.085 in	2.15 mm	2.65 V	85 lm	80 lm	90 lm	25 °C	615 nm	630 nm	623 nm	SMD
Everlight Electronics Co Ltd ELSH-F81N1-0LPGS-C4000	10 °C/W	70 lm	75	120 °	4000 K	3710 K	4260 K	350 mA	90 lm	80 lm	Surface Mount	0.12 in	0.177 in	3.05 mm	4.5 mm	1812 (4532 Metric)	400 mA	Neutral White	67 lm/W	0.085 in	2.15 mm	3.4 V
Everlight Electronics Co Ltd ELSH-F81C1-0LPGS-C5700	10 °C/W	70 lm	70	120 °	5700 K	5310 K	6020 K	350 mA	90 lm	80 lm	Surface Mount	0.12 in	0.177 in	3.05 mm	4.5 mm	1812 (4532 Metric)	400 mA	Cool White	67 lm/W	0.085 in	2.15 mm	3.4 V
