Tfs0 Series Series

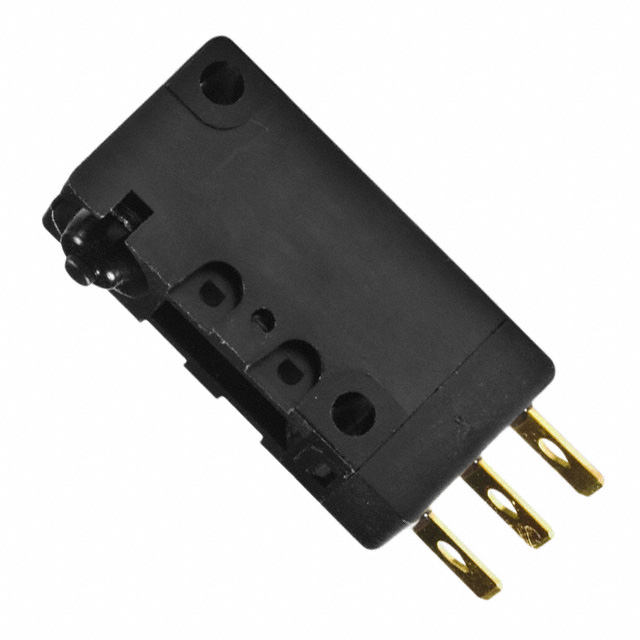

Splash Proof Mid Size Snap-acting Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Splash Proof Mid Size Snap-acting Switch

Part	Circuit	Actuator Type	Ingress Protection	Differential Travel	Differential Travel	Operating Position	Operating Position	Pretravel	Pretravel	Voltage Rating - AC	Current Rating (Amps)	Release Force	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Mounting Type	Mechanical Life	Termination Style	Overtravel	Overtravel	Switch Function
Littelfuse/Commercial Vehicle Products TFS06SP0040C	SPDT	Round (Pin Plunger)	IP40	0.016 "	0.4 mm	0.579 in	14.7 mm	0.047 in	1.2 mm	125 V	6 A	30 gf	85 °C	-40 °C	200 gf	Chassis Mount	10000000 Cycles	Quick Connect - 0.187" (4.7mm)	0.04 in	1 mm	On-Mom

Catalog

Splash Proof Mid Size Snap-acting Switch

Key Features

• Reliable snap action mechanism

• Low cost - high performance

Description

C&K’s TFS series are perfect for alarm devices, home security systems, air conditioners and food processors because of their reliability in the face of repeated use and difficult conditions. With a reliable snap action mechanism, C&K’s TFS series splash proof mid size snap-acting switch offers designers the low cost/high-performance mix they need to be successful.
