047745 Series
Manufacturer: Molex
Beta
⌘K
CMC HEADER, RIGHT-ANGLE, 28 POSITION, 1 PORT, BLACK
| Part | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Contact Type | Insulation Material | Number of Positions | Features | Mounting Type | Insulation Height | Insulation Height | Style | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Contact Shape | Number of Positions Loaded | Material Flammability Rating | Fastening Type | Termination | Applications | Contact Length - Post | Contact Length - Post | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

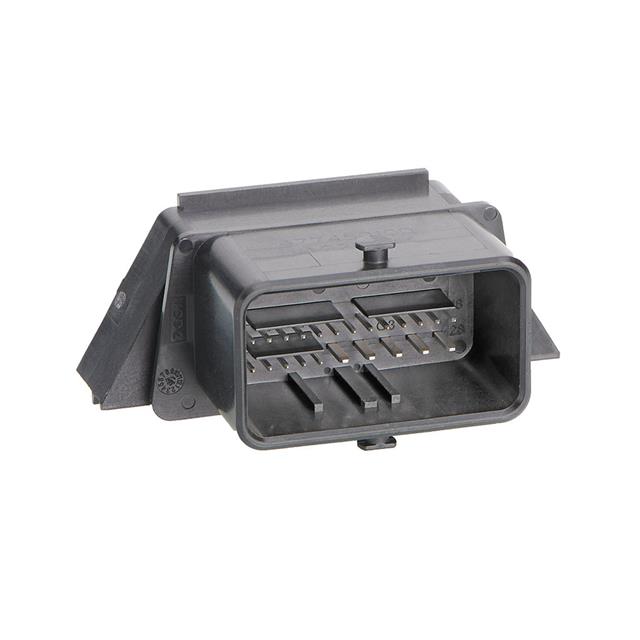

 Molex | Header | -40 °C | 105 ░C | Brass | 2 çm | 78.7 çin | Black | Male Pin | Polyester | 28 | Board Guide | Through Hole Right Angle | 23.9 mm | 0.941 in | Board to Cable/Wire | Tin | 1 µm | 39.4 µin | Shrouded - 4 Wall | Square | All | UL94 V-0 | Push-Pull | Solder | ||||

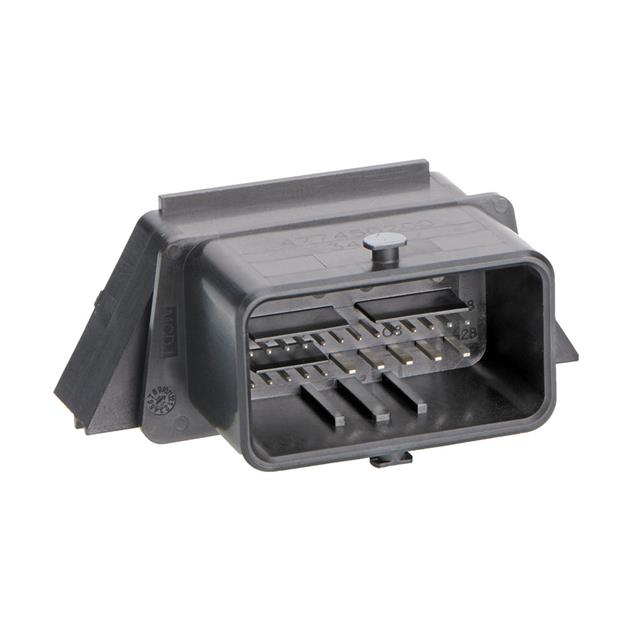

 Molex | Header | -40 °C | 105 ░C | Brass | 2 çm | 78.7 çin | Black | Male Pin | Polybutylene Terephthalate (PBT) Glass Filled | 28 | Board Guide Board Lock Mounting Flange | Board Edge Right Angle Through Hole | Board to Cable/Wire | Tin | 0.1 µm | 3.94 µin | Shrouded - 4 Wall | All | UL94 HB | Latch Lock | Solder | Automotive | 3.6 mm | 0.142 in | ||||

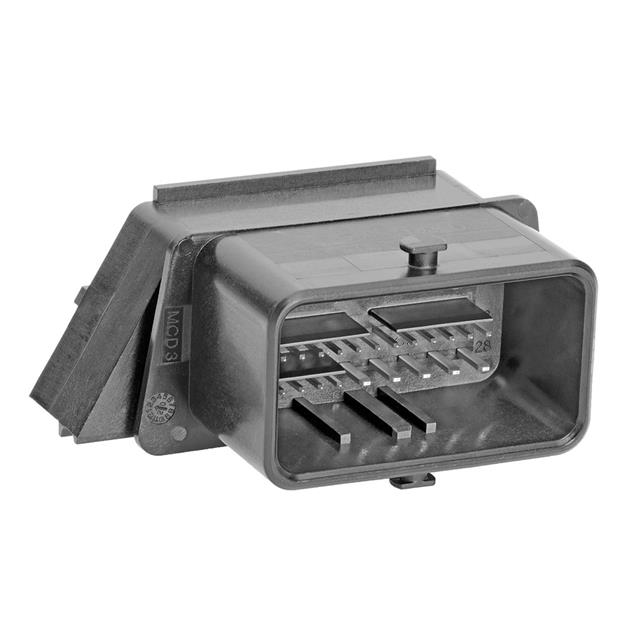

 Molex | Header | Brass | Black | Male Pin | Polybutylene Terephthalate (PBT) Glass Filled | 28 | Board Guide Board Lock Mounting Flange | Board Edge Right Angle Through Hole | 27.99 mm | 1.102 in | Board to Cable/Wire | Tin | 1 µm | 39.4 µin | Shrouded - 4 Wall | All | UL94 HB | Latch Lock | Solder | Automotive | 3 |
